Basic Info

Model No.	J459
Brand Name	SHENGKAIYUAN
Die Casting Machine Type	Hot Chamber Die Casting Machine
Die Casting Method	Precision Die Casting
Application	Machinery Parts
Machining	Machining Center
Material	Aluminum Alloy
Surface Preparation	Oil Blooming
Pressure Chamber Structure	Vertical
Certification	ISO 9001:2008
Insulation Furnace Capacity	900 Kg
Cylinder Diameter Of Closed Cylinder	ф140 Mm
Side Die Core-pulling Cylinder Diameter	ф100 Mm
Side Die Core-pulling Cylinder Stroke	250 Mm
Ejection Cylinder Diamater	ф140 Kn
Moving Template Size	1830×720 Mm
Static Template Size	2460×1900 Mm
Minimum Spacing Of Core Pulling In Static Die	560×560 Mm
Maximum Spacing Of Static Die Core-pulling	1060×1060 Mm
Minimum Distance Between Static Template And Moving Template	670 Mm

Product description

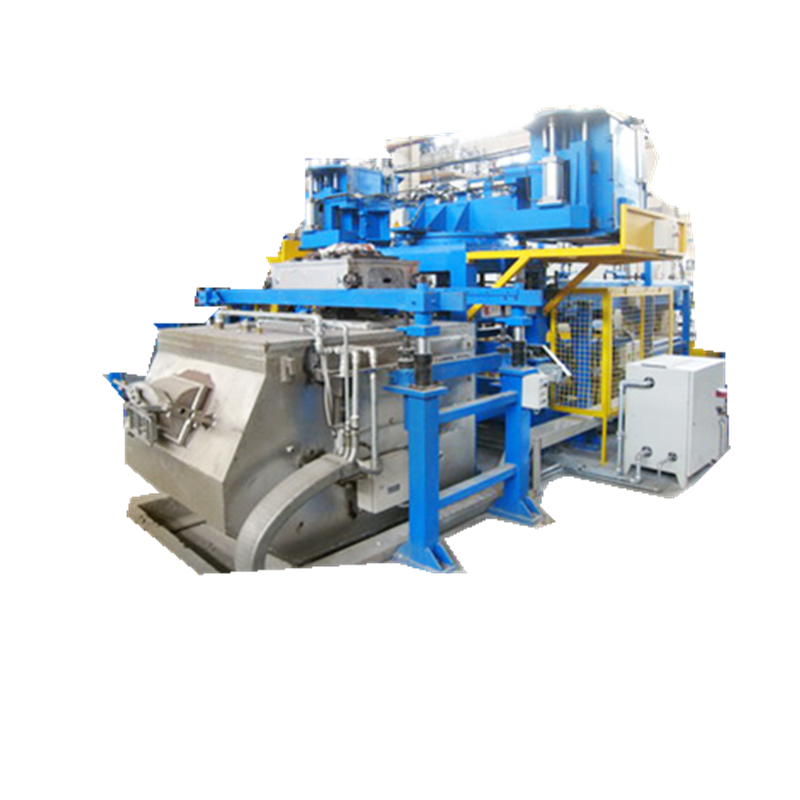

J459 low-pressure casting machine is a BOTTOM-INJECTION horizontal parting automatic low-pressure casting machine developed on the basis of the advanced technology of various products at home and abroad. It has the advantages of reasonable structure, advanced control, simple operation, safety and reliability. Low pressure machine is a general equipment for low-pressure casting of non-ferrous aluminum alloy.
In hydraulic, electrical, cooling and other control systems, a large number of foreign famous products have been used, which fundamentally guarantees the reliability and stability of the equipment, and can widely replace all kinds of imported large-scale low-pressure casting machines.
Low pressure machine is mainly used in the production of aluminum alloy castings for automobiles and motorcycles, especially the integral hub, cylinder head and cylinder head. It can also produce gearbox, motor housing, aeronautical instruments, textile discs and other parts.

Product features:

Core pulling of four side dies is installed on octagonal base to ensure the stability of core pulling.
The automatic hydraulic clamping mechanism is used in the loading and unloading and fixing of the die. The installation and disassembly of the die are rapid, and the positioning is accurate and reliable.
The safety limit mechanism is set on the moving template to prevent the accidental falling of the moving template.
Install photoelectric protection switch in the working position to ensure the safety of operators.
The imported man-machine interface is used as the upper monitoring unit to monitor the working state of the machine and the pressure curve of the insulation furnace in real time.

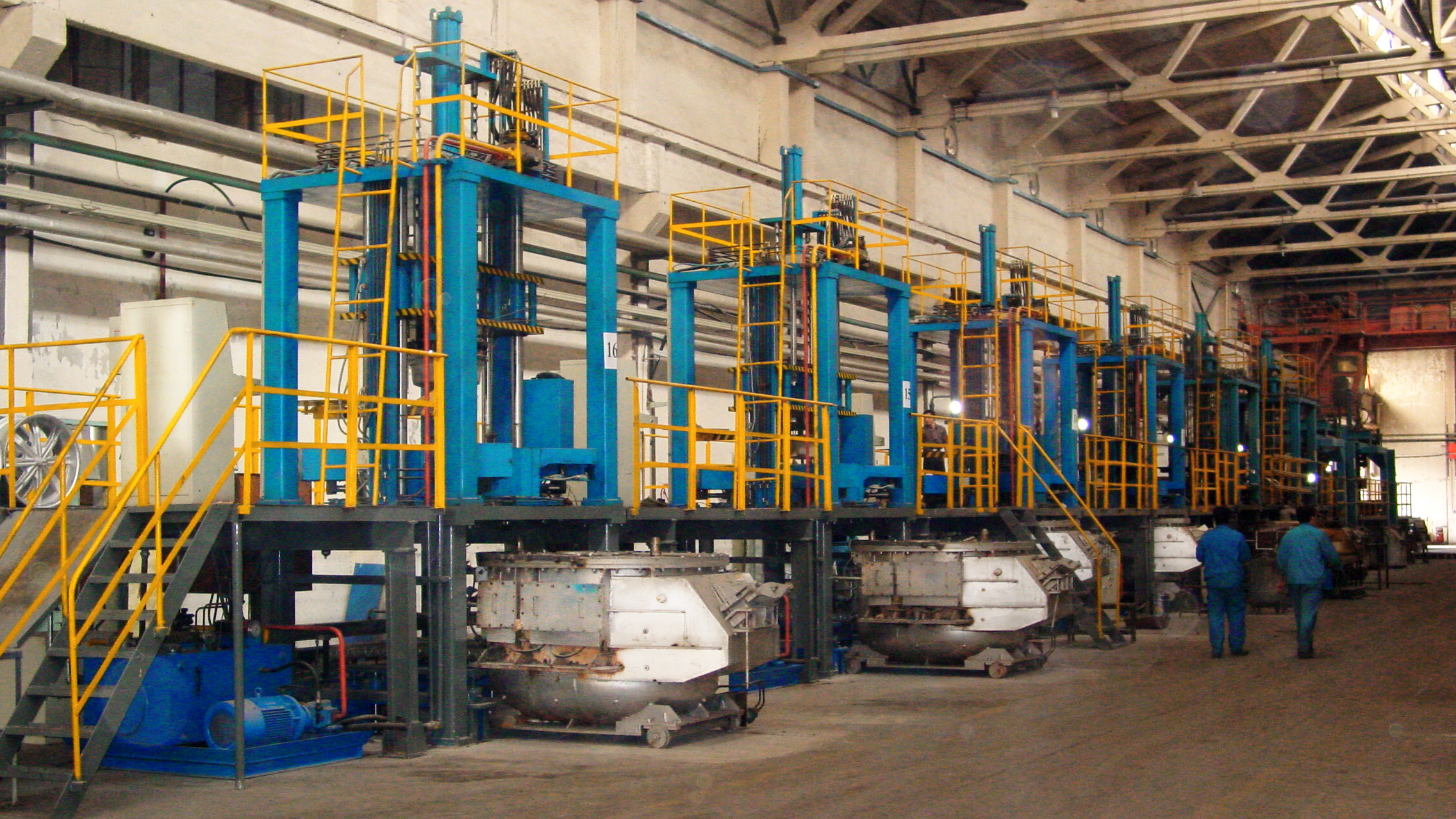

Basic Casting Machine

Technical parameters:

Moving Template Stroke: 1200 Mm
Ejection Stroke: 50 Mm
Oil Pump Motor Power: 18.5 Kw
Insulation Furnace Power: 36 Kw
Total Machine Weight: 24000 Kg

Our services:

Provide customers with product processing solutions, technical guidance, after-sales maintenance, etc.
Provide product design services: According to customer requirements, we can design and fabricate a variety of non-standard equipment to meet customer's actual production requirements.
One-year warranty period, in addition to providing warranty services within the warranty period, after the warranty period will provide lifetime paid maintenance services.
