Batch used rubber reprocessing machine

Introduction of Batch used rubber reprocessing machine

This plant does not have to get rid of silt, moisture content, iron wire impurity and so on from the scrap plastic, directly loads in the rotary system high temperature atmospheric pressure split processor, catalyses, heats up, distils oil steam, the oil gas through the condenser, the liquefied part condense into the oil mixture, and the unliquefied part holds through  the fuel gas system into the processor bottom to burn.After the mixture oil condense, put into fractionation processor to heat though catalytic reforming process, and get the oil steam. Then the oil steam through the condenser to be basic fuel, and add various additives to become qualified fuel.

Main components of Batch used rubber reprocessing machine

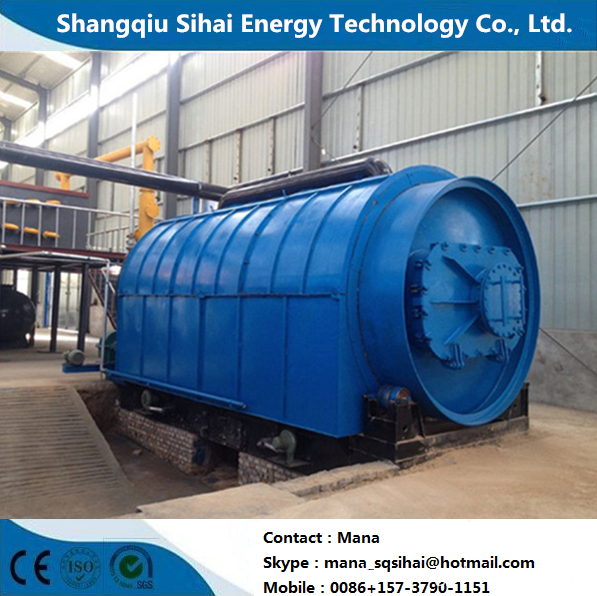

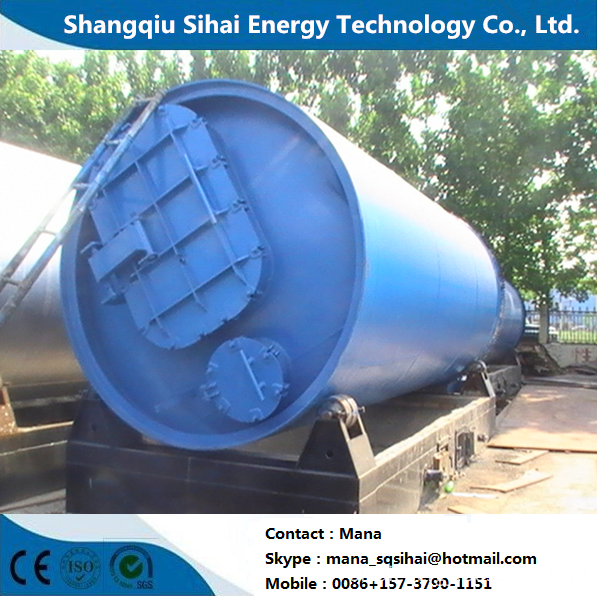

 a. Host horizontal rotary pyrolysis processor.

b. Feeding system

c. Pressure and temperature alarm system

d. Secondary catalytic tower

e. Automatic slag removal system

f. Central electronic control system

g. Tank cooling system

h. Gas heating system (exhaust gas treatment system)

i. Dust and dust removal system

Working process of Batch used rubber reprocessing machine

1.Feeding requires 1-2 hours. Tires less than 1.4 meters can be directly fed into the tire. Large tires need to be cut and then fed; plastics are fed by automatic feeders or conveyor belts;

2. Heating takes about 6-8 hours. Normally, oil and gas will be produced when heated to 180 degrees. At 240-260 degrees, oil and gas will be produced in large quantities.

3. Cooling, oil and gas condenses into fuel oil through the cooling system;

4. During the pyrolysis and recovery of exhaust gas, in addition to oil and gas, some flammable but non-condensable gases will be generated. We call this [exhaust gas." This gas can be directly recovered for heating the pyrolysis reactor to save energy. fuel;

5. Carbon black and steel wire slagging, the end of the cracking process, oil and gas out of the reactor, the need to discharge the reactor inside the residual material, to carry out a new cracking process, these residues mainly include carbon black and steel wire used to make tire plastic.

Technical parameters of Batch used rubber reprocessing machine

Model	Raw material	Structure form	Cooling system
LJ-8	Waste tire, plastic, rubber	Horizontal	Water cooling
Heating method	Oil output rate	Power	Installation
Directly	45%	15.5KW	Foundation
24 hours processing capacity	24 hours oil output	Work pressure	Host speed
6-8 tons raw materials	2.5-3.2 tons fuel oil	Atmospheric	0.4r\min
Transport	Reactor size	Working form	Weight of reactor
External gear drive	2200*6000mm	Batch	28 tons

Exporting experience of Batch used rubber reprocessing machine

America:	Brazil, Canada, Colombia, USA,
Middle East:	Dubai, Iran, Jordan, Saudi Arabia, Turkey
Europe:	Albania , Bosnia and Herzegovina
Asia:	Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar,Thailand
Africa:	Ghana, Mozambique, Zambia
