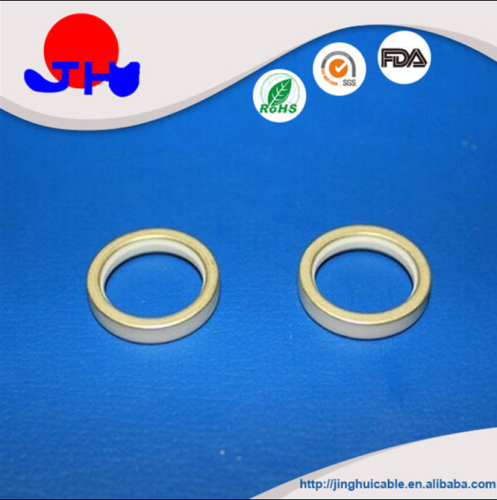

Beryllia ceramic metallized ring

This ceramic metallized ring is made of beryllia ceramic. Due to it's remarkable thermal conductivity,  thermal shock performance and superior resistant high temperature than alumina, sometimes, it was used to be in some special industry for ceramic to metal jointing filed.

We are able to provide selective metallization type according to customer requirement, the typical one as following:

1. Ceramic body + Mo/Mn metallization + Nickle plating  2. Ceramic body + W metallization + Nickle plating

Based on our mold design capability, we can offer custom made service by supporting prototyping program.

Also we have comprehensive high precision processes, such as fine grinding, CNC machining. It help us to get some very extremely high precision ceramic parts.

Prime features:

●Excellent bonding and brazing strength ●Exceptional hermeticity and air tightness ●Great electrical insulation

●Superior corrosion resistance●Good thermal shock properties

Capability:

● Supply a variety of different  complicated configuration ● Small part size (Min. OD 1mm) to large part size (Max. OD800mm)  availability

● Standard tolerance to high precision one capability ● Prototyping with trial order to mass production capability in a short term

Applications:

It's widely used in power grid tubes , vacuum interrupters , medical linear accelerators, power tubes, photomultipliers,

components for insulators and sensors.

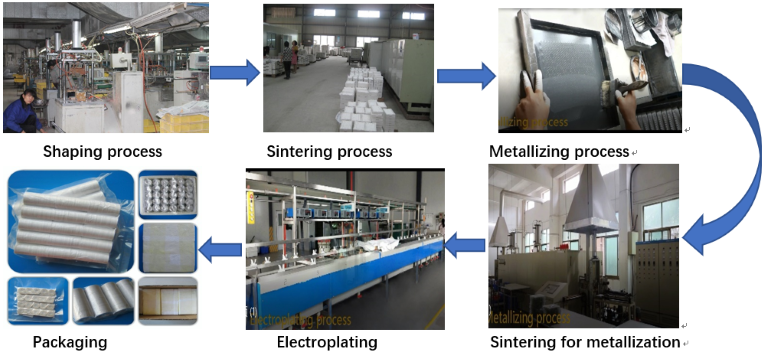

Main manufacturing flow chat

We have a complete comprehensive of production equipment for metallized ceramics from shaping to electroplating.

It helps us to make the dimensional consistency very well. Also, helping us to offer a competitive price.

FAQs (Frequently Asked Questions)

Q 1. Is it available to provide customize products?

A: We could support custom-made demand as per different dimensions, design and metallization and plating.

Q 2. When can I get the price?

A: We regularly quote within 24 hours after we get your inquiry.

Q 3. How long does the whole procedure being worked out?
A: After you place an order, the manufacturing time is about 25 working days.

Q 4. What about the transportation and delivery date?

A: Normally we use Int`l express by our forwarder, or with client`s account number. It is about 3~5 working days.

Q 5. How to ensure the quality?

A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. 100% cosmetic inspection will be done.
