Main Functions and features

Busbar Processing Machine is the patented product developed by our company. Comparing with the traditional busbar processing machine, this product has the following advantages and features:

1. The multifunction busbar processing machine is the patented product developed by our company. Comparing with the traditional busbar processing machine, this product has the following advantages and features:

2. The punching and shearing units adopt round integral structure, with novel and unique design rendering reasonable force bearing, and thus effectively guarantees the long-term use without deformation;

3. The bending unit uses integral structure and angle limit control mode, allowing easy operation and high accuracy;

4. This machine adopts the design approach of double-layer work bench;

5. The machine is provided with an automatic oil charge and discharge system, easy to operate, with the hydraulic oil charged into the oil tank via a filter so as to protect the entire hydraulic system from contamination;

6. This machine is provided with stainless steel oil tank to protect the hydraulic oil from corrosive deterioration, and extend the service life of hydraulic oil and the seals;

7. Swappable dies offering extreme convenience;

8. PLC control that is stable and reliable.

Configuration of the machine
Work Bench Dimension (mm)	Machine Weight (kg)	Number of Motors	Total Motor Power (kw)	Working Voltage (v)	Number of Hydraulic Units (MPa)	Control Mode
Layer Ⅰ:1500*1200	1280	3+1	11.37	380	3*31.5	PLC+CNC angle bending
Layer Ⅱ:840*370

Main technical parameters:
Description	Material	Machining W*H (mm)	Max Punched Hole	Max Output Force (kn)
Punching unit	Copper/Aluminum	H:15	?32(H≤10mm) ?25(H≤15mm)	350

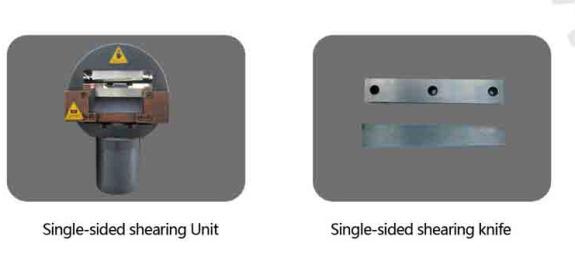

Shearing unit	Copper/Aluminum	Punching and shearing:12*160 Simple shearing:15*160		350

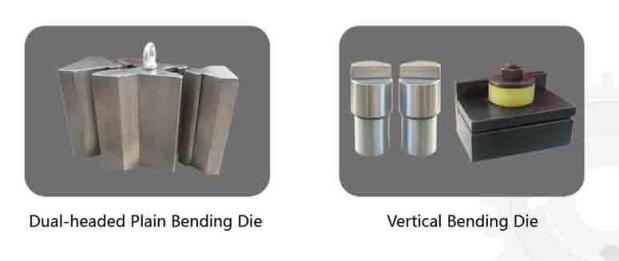

Bending unit	Copper/Aluminum	Level bending:15*160 Vertical bending:12*120		350

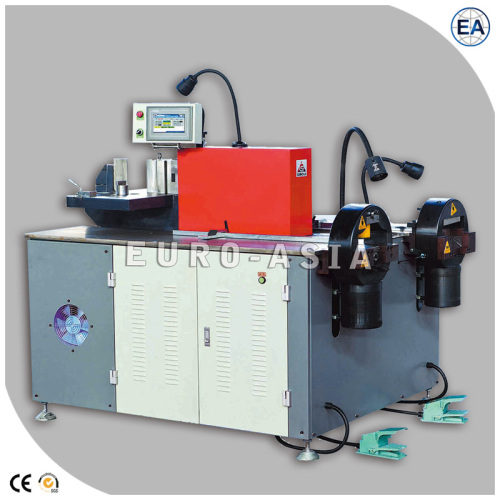

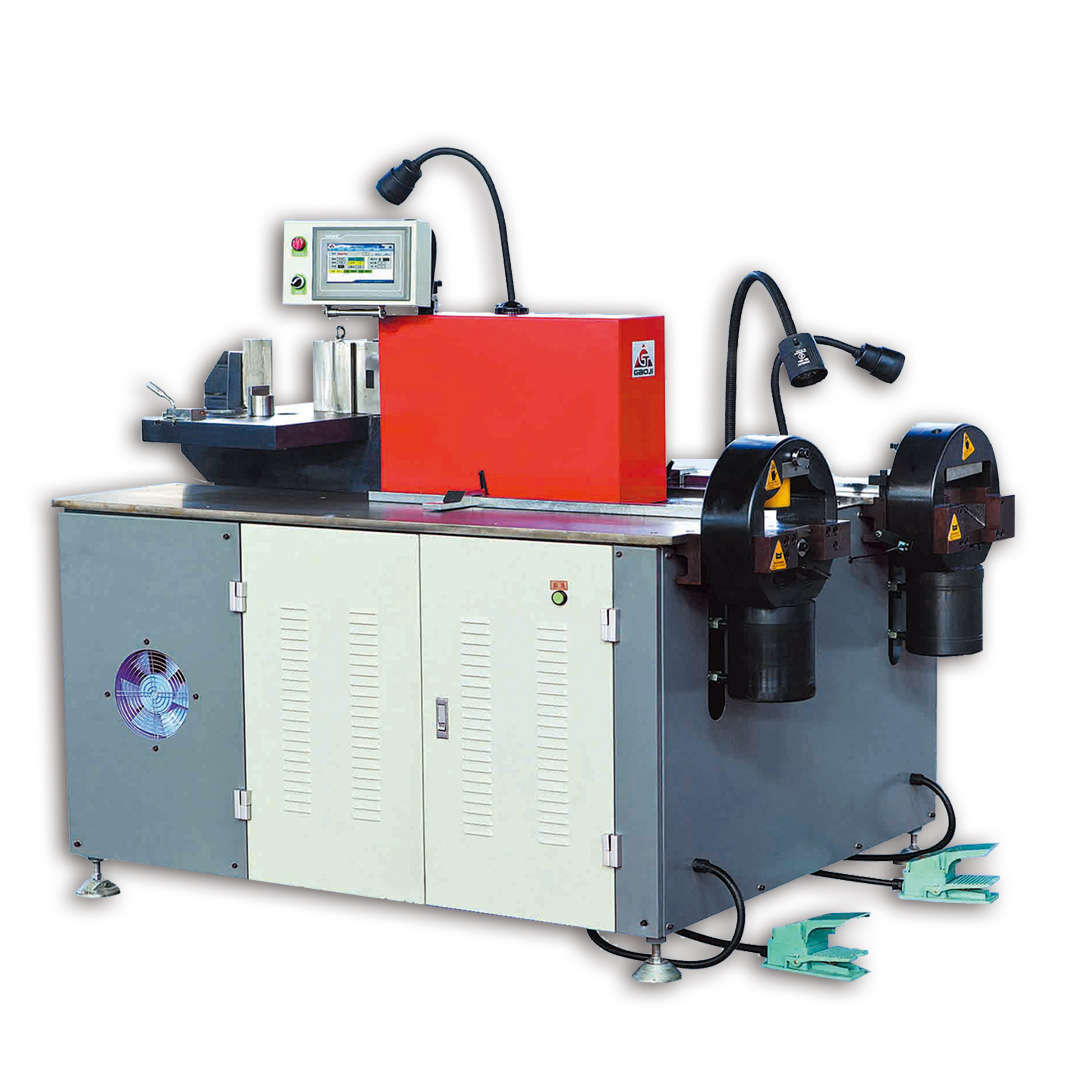

Machine details picture
