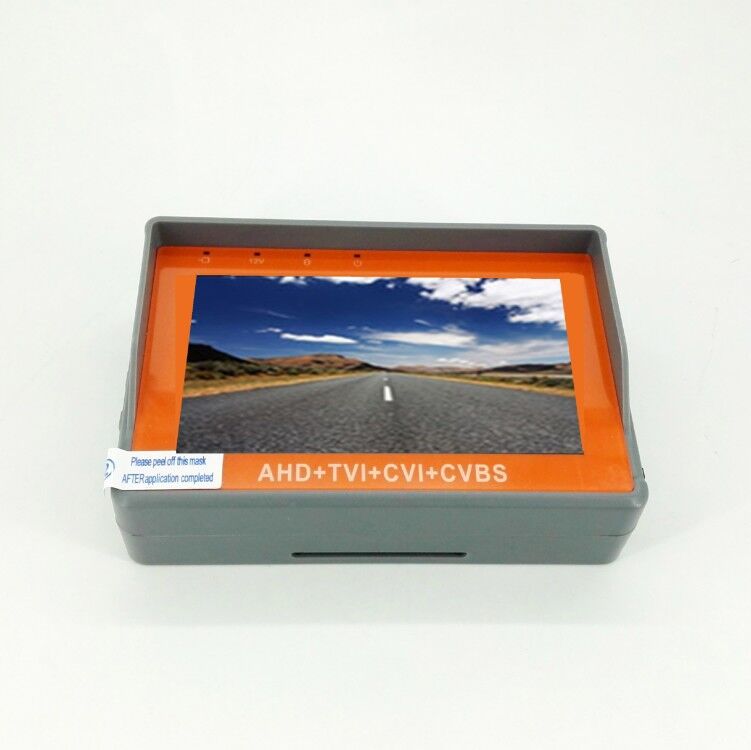

Cctv surveillance equipment handheld cctv camera tester
Basic Info
| Model No. | CT600HDA |
|---|---|
| Brand Name | Chinasky |
| Place Of Origin | Zhejiang, China |
| Warranty | 2 Years |
| Brand Name | Chinasky, OEM |
| Product Description | Hd-tvi/ahd/cvi/cvbs All In One Cctv Video Tester Monitor Pro |
| Appliction | Surveillance installation, CCTV installation, TVI AHD CVI Tester |
Product description

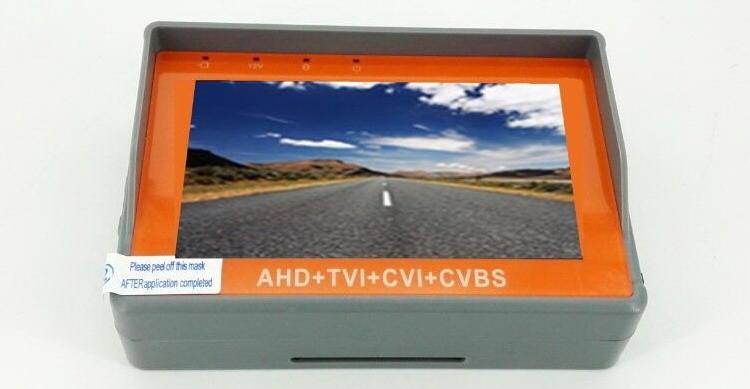

4.3" Tft Hd-tvi/ahd/cvi/cvbs All In One Multi Function Cctv surveillance equipment handheld cctv camera test equipment tester
4.3" Tft Hd-tvi/ahd/cvi/cvbs All In One Multi Function Cctv surveillance equipment handheld cctv camera test equipment tester
Features:
PAL/NTSC Auto Adapt for Analogue Cameras, AHD, TVI, CVI Cameras
Support AHD 720P /960P/1080P/3MP/4MP/5MP, TVI 720P /1080P/3MP/4MP/5MP, CVI 720P /1080P/3MP/4MP and CVBS cameras,
PTZ control, RS485
Support 1ch Audio Test
Support UTP cable test
5VDC output for mobile phone
12VDC output for CCTV Camera
MINI USB Universal Charging Port
Low Power Consumption
Auto Sleep In 3 Minutes Without Signal
Rechargeable Li-ion battery 3.7v, 2600mA replaceable.
Specifications:
|
AHD, TVI, CVI and CVBS Camera Tester for Security Systems (CT600HDA) |
|
|
Video test |
|
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color |
|
Screen adjustment |
Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable |
|
Video input / output |
1 channel BNC Video IN |
|
HD AHD, TVI, CVI Test |
|
|
SD signal Format |
NTSC,PAL |
|
HD video signal |
HD AHD,TVI,CVI |
|
Resolution |
AHD 720P /960P/1080P/3MP/4MP/5MP, TVI 720P /1080P/3MP/4MP/5MP, CVI 720P /1080P/3MP/4MP and CVBS |
|
Signal Level |
1Vpp |
|
12V power output |
|
|
Power output |
Temporary power output 12V 1A DC |
|
|
USBX1 5V1A output |
|
Audio test |
|
|
Audio test |
Input audio signal, and played on the internal speaker |
|
Power supply |
|
|
External power supply |
DC 5V 2A |
|
Battery-powered |
Built-in 3.7V li-polymer battery, Capacity 2600mAh |
|
Charge |
Charge time 3-4 hours Battery power time 8 hours |
|
Power saving features |
Low power consumption, automatic power off, Real-time display of battery level |
|
System settings |
|
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Cable test |
|
|
cable test |
Test any two or more wire cable Display connect sequence and remote number |
|
LED Light |
1*35lm LED light |
|
Working Environment and Specifications |
|
|
-20℃---+70℃ |
|
|
30%-90% Rh |
|
Datasheet Download
