Brief Introduction

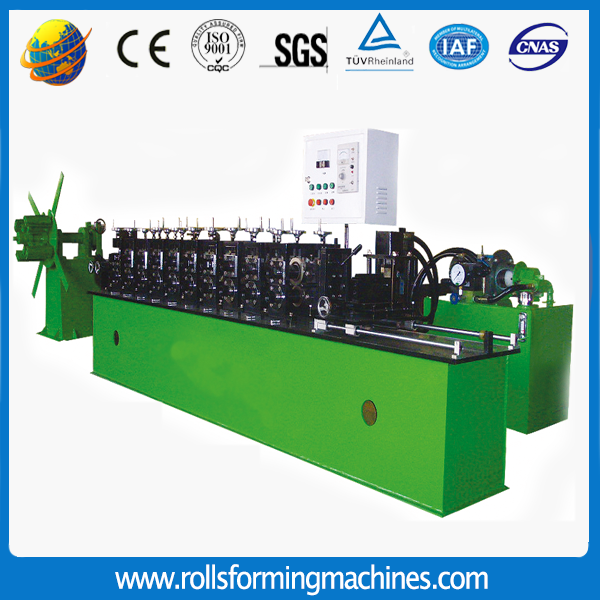

Ceiling panel Rolling Machine can produce according various shape. Ceiling roll forming machine of Cangzhou Zhongtuo is professional

According to the drawing profile, there are V shape, C channel , T shape, L shape, U channel and so on.

with high speed and good quality. It is with high quality raw material, modern design and well equipped. Various Keel machine can be customized.

Main elements of Ceiling panel rolling machine

1.Decoiler 1 set

2.main roll forming machine 1 set

3.punching maching(as customer's need) 1 set

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)

5.PLC control 1 set

6.Counter 1 set

7.hydraulic station 1 set

8.receiving table 1 set

Some main parameters of

1.Working efficiency:20m/min

2.Processing material: GI

3.Material hardness: 550MPA-350MPA

4.Thickness of material: 0.2-0.55mm

5.Width of material: 35mm-65mm

6.Un-coiler system: 1.5 Ton decoiler (manual decoiler, electric decoiler , hydraulic decoiler)

7.Number of rollers: 10 rollers

8.Roller fixer: guide column

9.Roller material: Gcr12 MoV quenched

10.Material of shaft: 45# steel

11.Diameter of shaft: 40mm

12.Main power: 3KW

13.Hydraulic power: 3KW

14.Hydraulic pressure: 20Mpa

15.Blade material:Gcr12 MoV quenched

16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)

17.Frame: 25mm

18.Drive : gear, chain or case of different speeds(as customer`s demand)

19.Punching mould: each type one set

20.Punching machine: Gcr12 MoV quenched

21.Control system: Delta of Taiwan.

22.Machine color: yellow or blue

23.Lenth: 3000*800*1400mm

some other ceiling profile drawing for your reference
