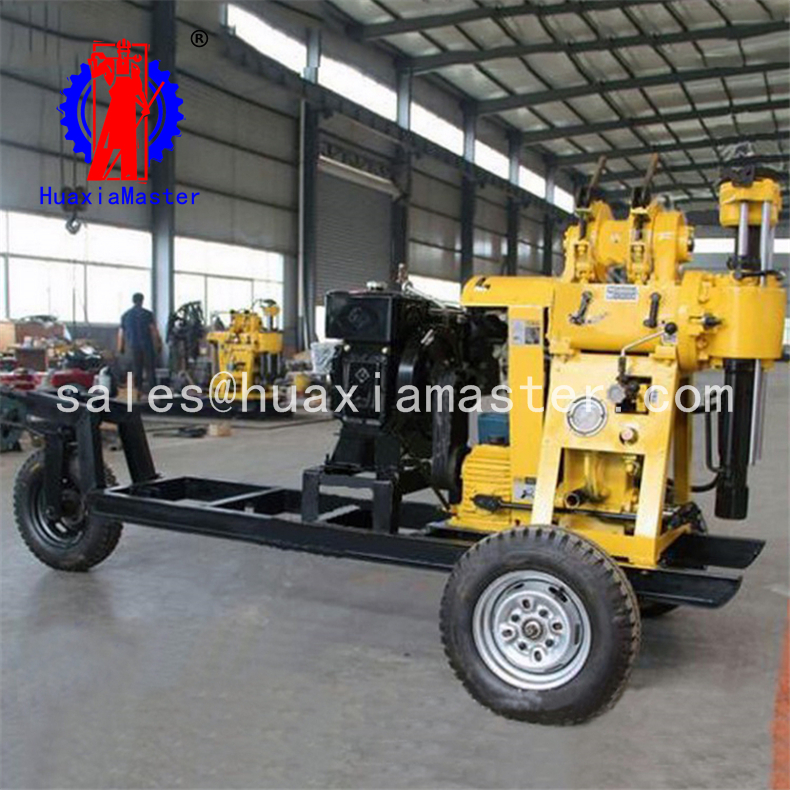

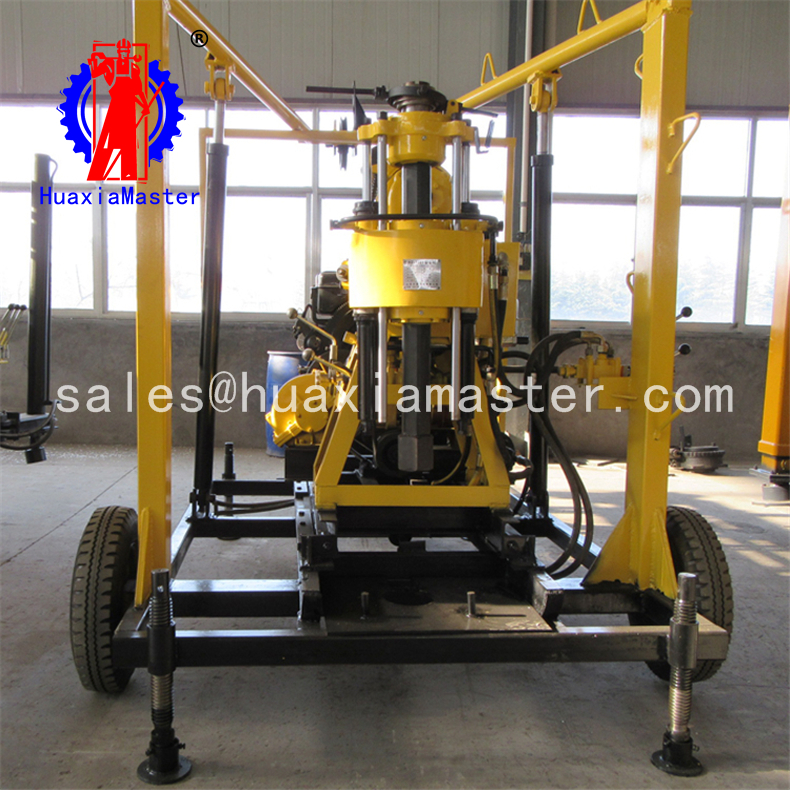

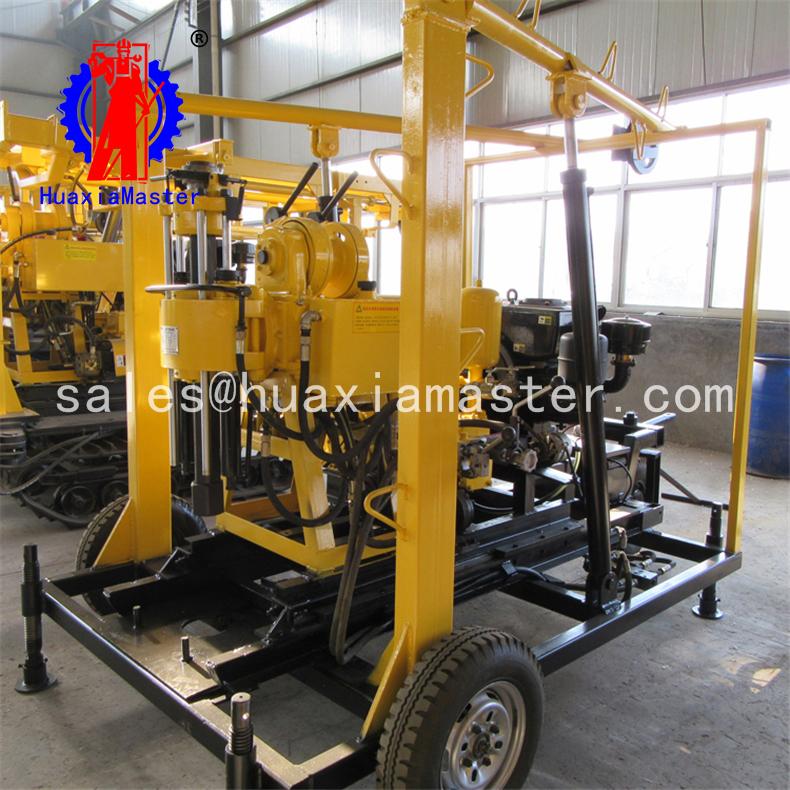

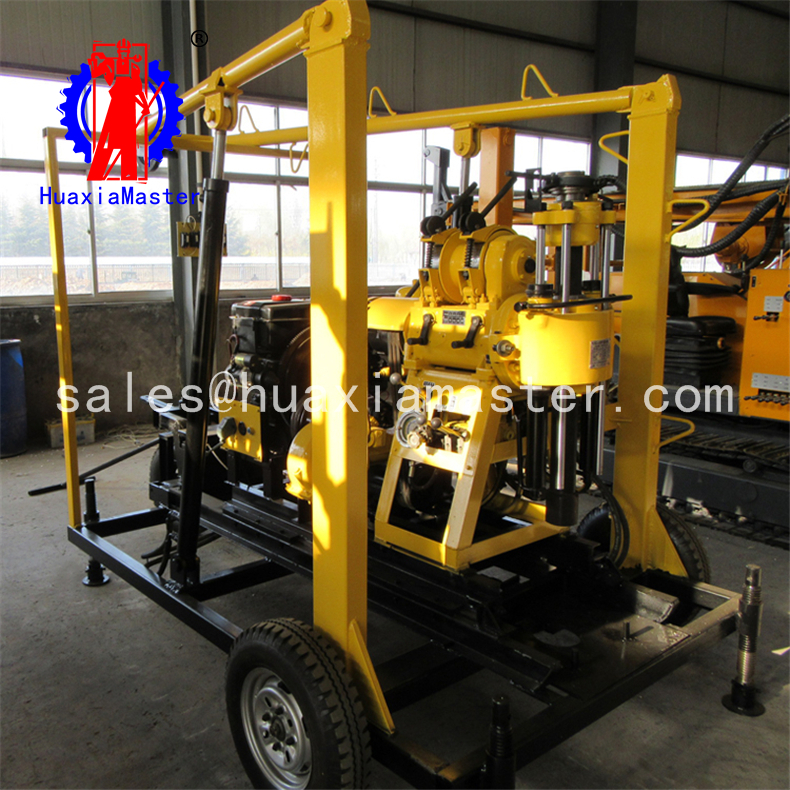

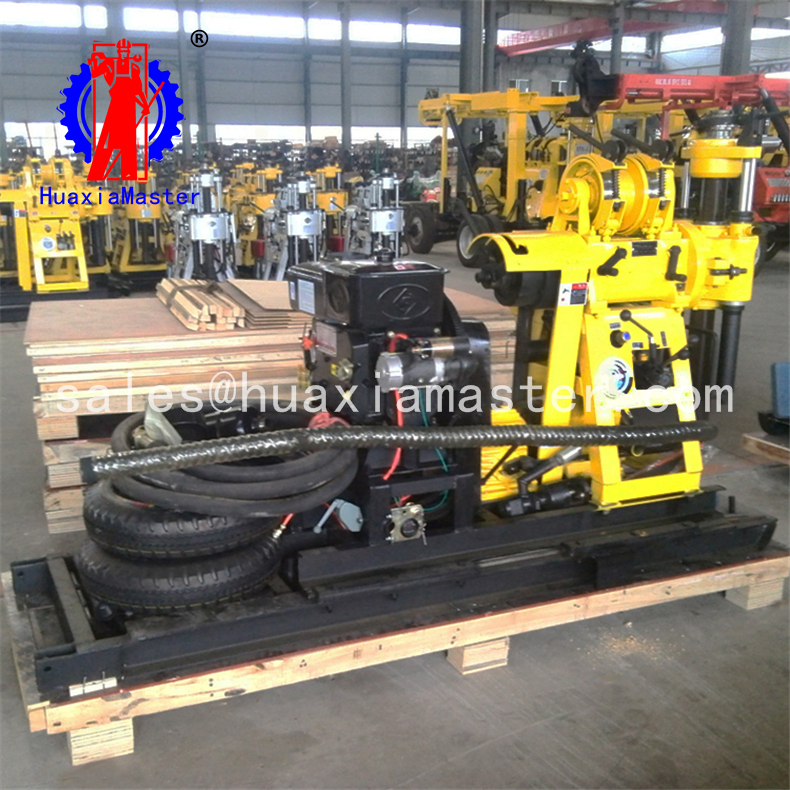

Cheap drilling rig water well drilling machine/well drilling equipment
Basic Info
| Model No. | XYX-130 |
|---|---|
| Brand Name | huaxiamaster |
| Usage | Ore |
| Power Type | Diesel |
| Type | Rotary Drilling Rig |
| Condition | New |
Product description
1.Applications of
Civil water well, Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, ground temperature central air conditioners.
2. Features of XYX-130 wheeled hydraulic water well drilling rig
The drilling rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.
Also, because of the oil pressure feeding mechanism, the drilling rig improves drilling efficiency.
The drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient, safe and reliable.
The drilling rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.
3. Technical parameters of
|
XYX-130 wheeled hydraulic water well drilling rig |
|
|
Drilling depth |
130m |
|
Max open hole caliber |
220mm |
|
End hole caliber |
75mm |
|
Drilling rod diameter |
50mm |
|
Drilling angle |
90°-75° |
|
Drill weight |
950kg |
|
Spindle |
|
|
Spindle speed |
142 285 570r/min |
|
Spindle stroke |
450mm |
|
Windlass |
|
|
Maximum lifting weight of single rope |
1600kg |
|
Single rope lifting speed |
0.41 0.82 1.64m/s |
|
Drum diameter |
140mm |
|
Wire rope diameter |
13mm |
|
Wire rope capacity |
27m |
|
Mud pump |
|
|
Type |
Horizontal single cylinder double action |
|
Displacement diesel engine / motor |
95/77 l/min |
|
Maximum pressure |
1.2mpa |
|
Work pressure |
0.7mpa |
|
Drilling depth |
130m |
|
Max open hole caliber |
220mm |
|
End hole caliber |
75mm |
