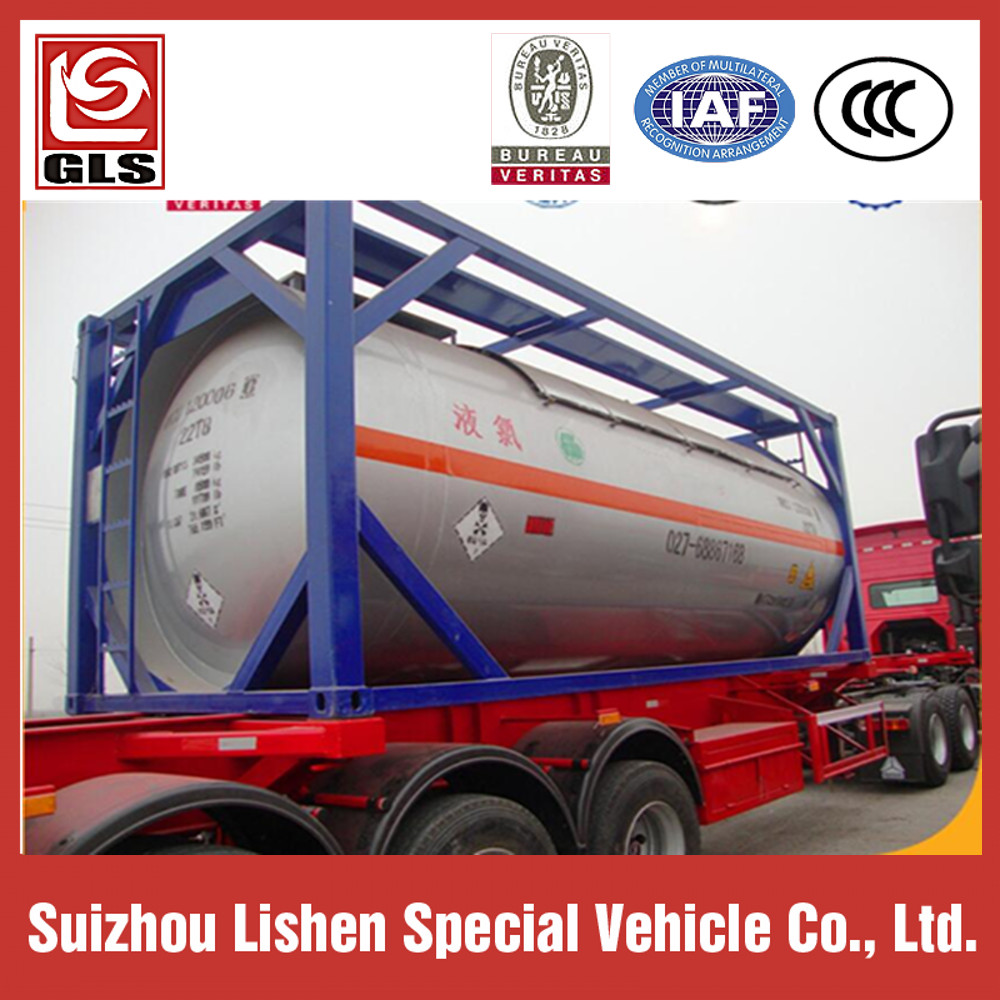

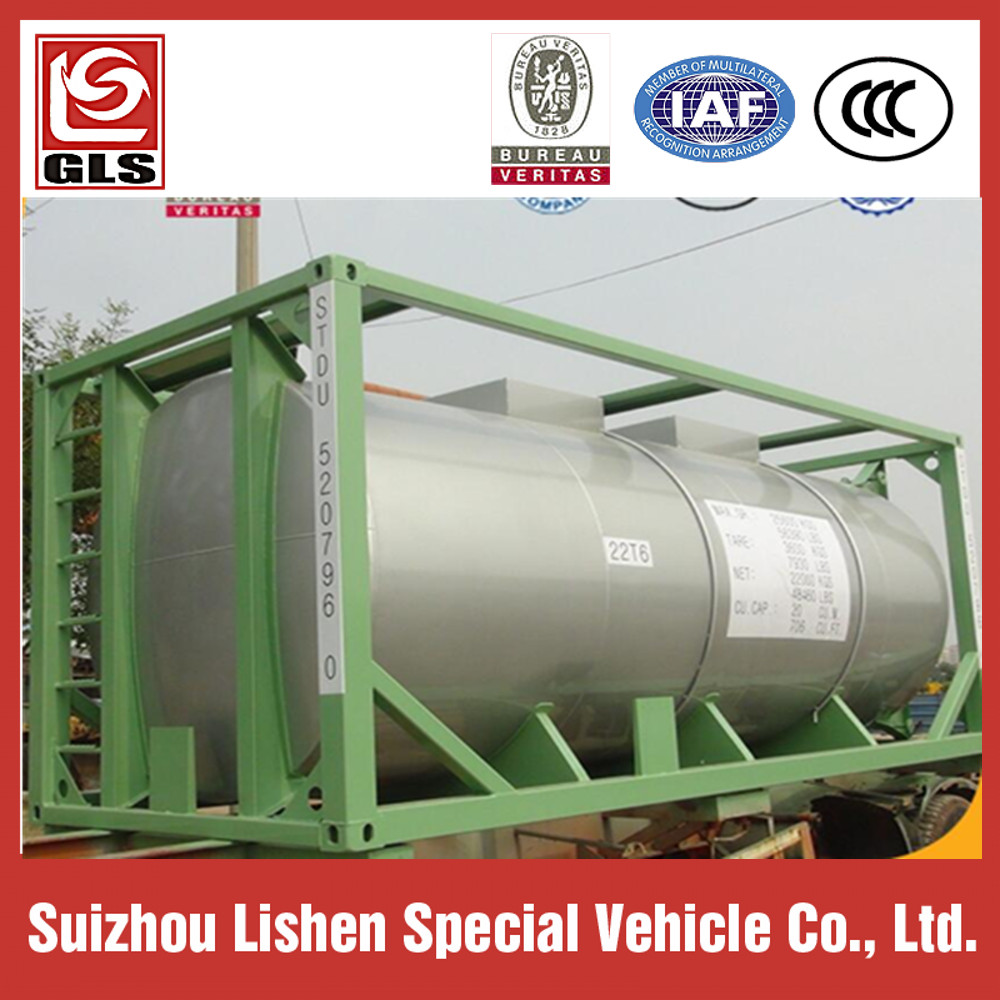

Chemical Liquid Medium Stainless Transportation Tank Container 20ft

1. This container is applied to transport liquid medium in a short or long distance.

2. It`s an ideal equipment to transport diesel oil, petrol oil, vegetable oil, edible oil, chemicals or any other liquid from storage field to plant, or transfer it from storage field to market.

3. Main Performance Characteristics:

a. Fill oil by outside pump through its manhole or inlet hole on the top of tank;

b. Discharge oil by self-flow hole on the bottom of the container or discharge oil by pump;

c. Tank container can fix heating system or insulating layer by rock wool or glass wool;

d. Different coating color for client`s requirement;

e. Other special design based on client`s requirement.

PRODUCT SPECIFICATION:

Main Parameter

Function Transport liquid media
Material Stainless Steel
Thickness 5mm
Ext. Length 6,058mm
Ext. Width 2,438mm
Ext. Height 2,591mm
M.G.W. 28,00 0Kgs
Tare 5,000Kgs
Max. Payload 23,000Kgs
Cubic Capacity 20cbm
Tank Design Standard GB150-98
Max. Design Pressure 2.65bar
Calculated Pressure 10.0bar

Please feel free to contact with us if you need more details
