Chocolate Fold Packing Machine: Multi-Function Packaging Solution

  • $55000.00

    ≥1 plant

  • $52000.00

    ≥3 plant

power:

  • 8kw

Options:

  • 260 pcs/min
  • SL-SBZD450D
Get Latest Price

Basic Info

Model No.
Brand Name
Weight (KG) 1600
function Filling, Wrapping
application Food
Packaging Type Film, Foil
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 380v
Place Of Origin Sichuan, China
Brand Name Shengli
Dimension(L*W*H) 2960*1560*2150mm*1
Warranty 1 Year
Key Selling Points High-Accuracy
Machinery Test Report Not Available
Video Outgoing-inspection Provided
Core components Motor
After-sales Service Provided Video technical support, Field installation, commissioning and training, Online support
Product Name Automatic envelop folding Packing Machine
Main Function Packing and Feeding machine
Packing Material Foil
Packing speed 200-260 pics/min
Machine Type Automatic Horizontal Packing Machine
Color Silver
Matched Machine Arrange and Feeding machine
Keywords1 chocolate wrappers
keywords2 chocolate bar packaging machine
Keywords3 packing machine
Show More

Product description

Product Description

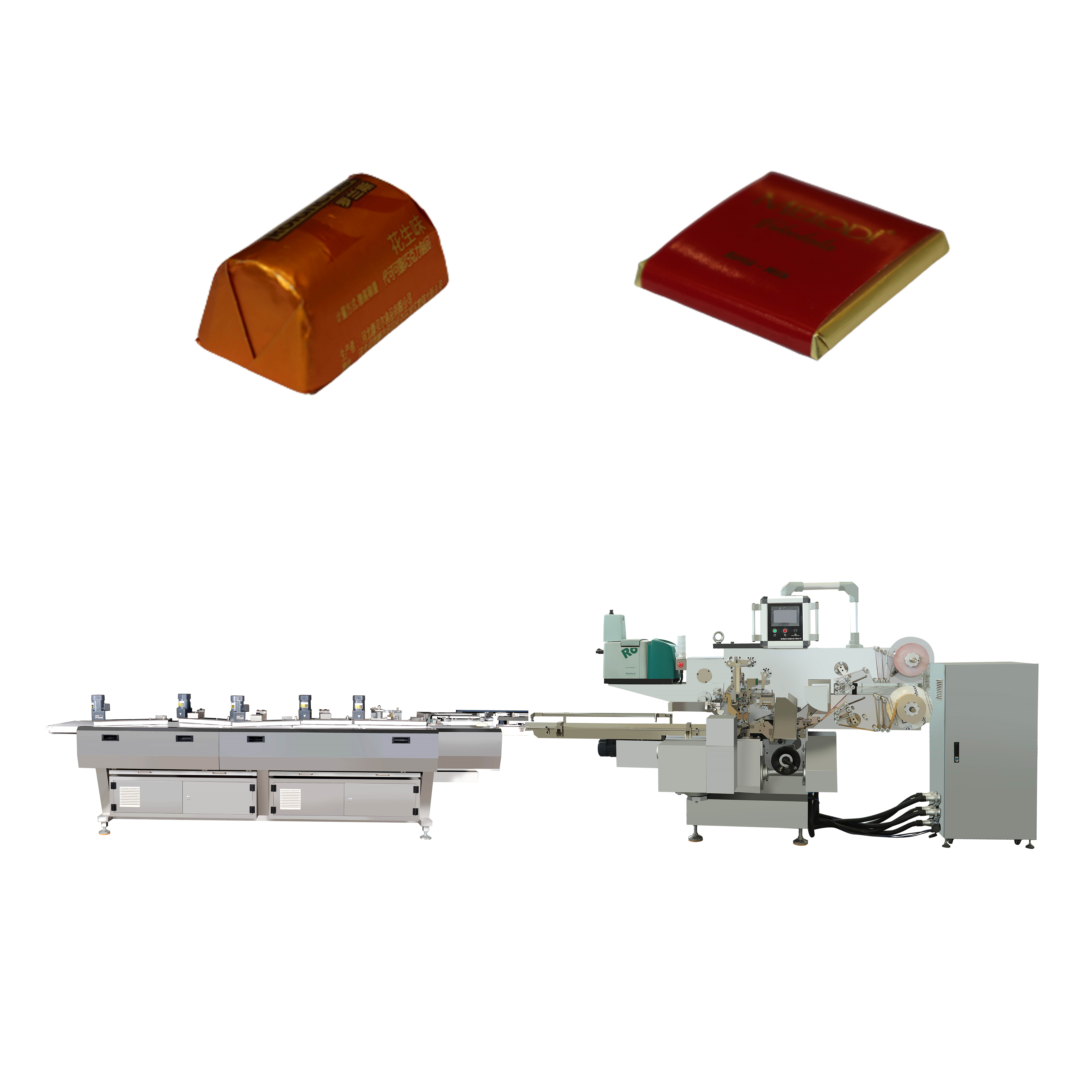

Chocolate Fold Packing Machine Multi-Function Packaging Machine (additional wrapping label available)

SL-SBZB450?series?automatic?packing machines?are?mainly used for the folding and envelop style packing of?chocolate, hard?candy,?pressed?candy etc. in certain?sizes?and shapes.?The model is compatible with?various?types of?packaging materials. Meanwhile, brushing packing is also available on this model by replacing several tool parts.

SL-SBZB450D is an upgraded version based on SL-SBZB450, which adds additional label wrapping and double layers wrapping packing function, providing more variety and flexibility in packing style.

?Chocolate Fold Packing Machine Multi-Function Packaging Machine

?

Technical parameters

SL-SBZB450/D?Square Chocolate Fold Wrapping Machine

1

Packing Speed

200-260pics/min

2

Product Dimensions(L*W*?H)

10-80 *4-?45?x*4-35?mm

3

Total Power

3kW
4

Power Supply

380 V, 50 Hz, 3-Phase

5

Air Supply

0.6 MPa

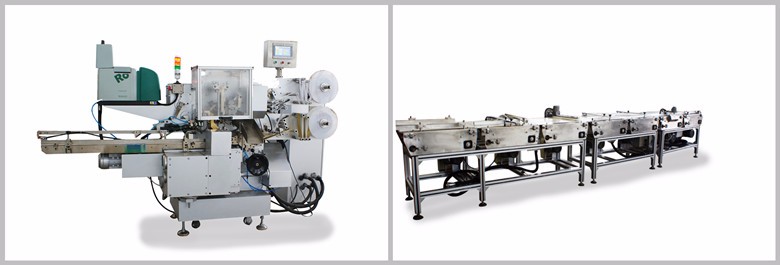

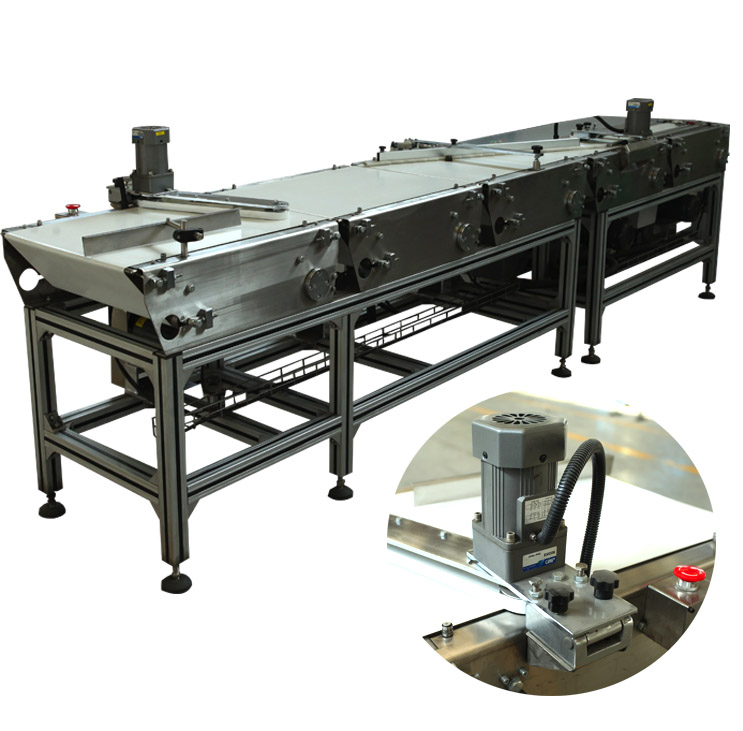

SL-SBZL500 Arranging and Feeding?Machine

?1 ?

Feeding speed

300-500 pics/min(speed matched with packing machine)
?2 ?Total power ?2.3kw
?3 Power Supply ?380 V 50 Hz?3P
4 Air Supply 0.6?MPa ?
Advantages

square chocolate fold wrapping machine

1. Arranging and feeding machine can be chose according to different product properties

2. Use single layer wrapping paper ,paper material :Aluminum foil,PET,PVC,composite material etc.

3.?Adopt?PLC?&??program?software?,?easy?operating?and?setting?. Auto-human touch screen and three color warning light ,self?failure?diagnosis?,?clear?failure?display?.?

4.Fully automatic program-controlled with servo motors,highly stable and reliable

5.Flexible in color sensor settings,paper feeding self-tracking and correction during packing ,providing a consistent packing style and a good product appearance.

6.Self-protection for abnormal product.

7. Online product feeding status monitoring-only feeding wrapping paper when product arrives desired position,which keeps paper consumption at an extremely low level.

8. Removable truckle with machine ,height can be adjusted.

9. Large space switch power supply,electrical device’s brand can be chose.

Bigger cover for the machine , safe with an operator

?

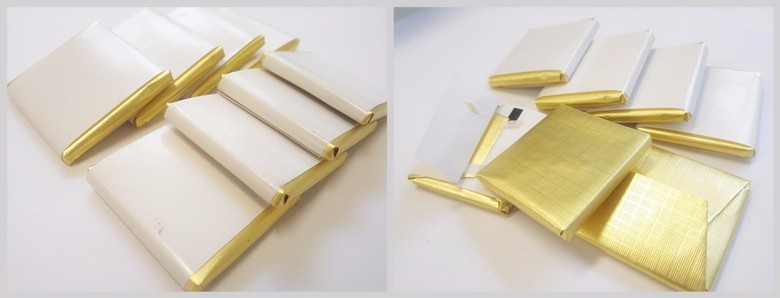

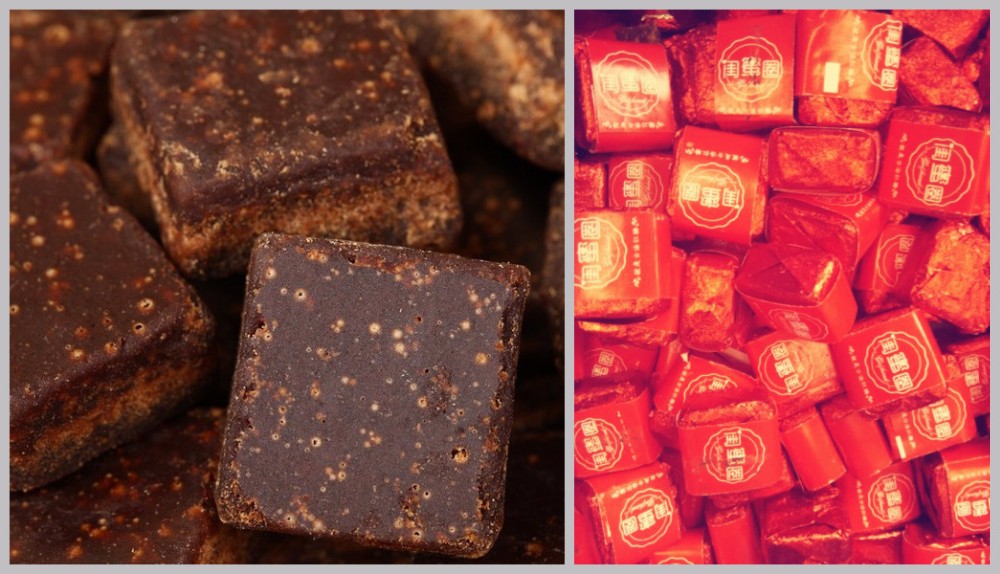

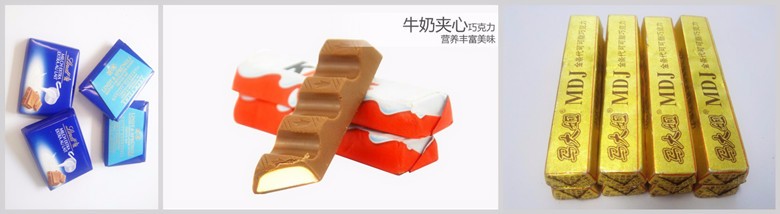

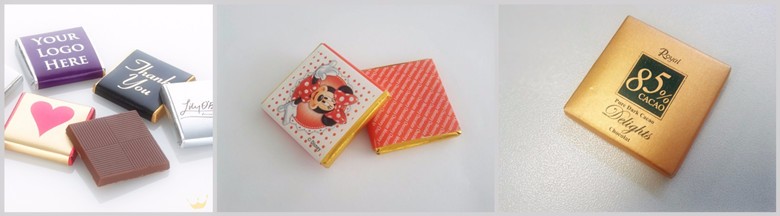

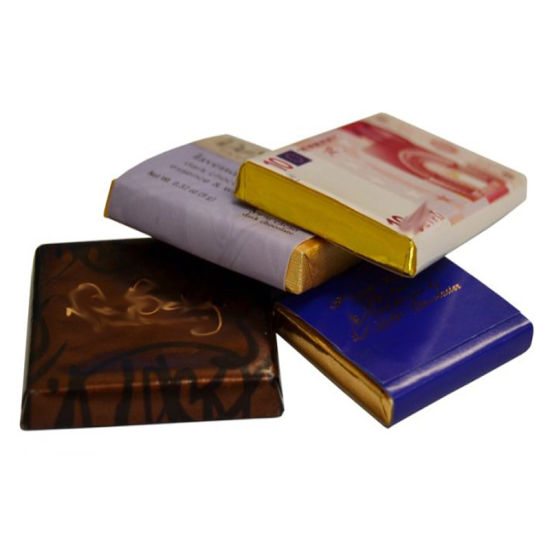

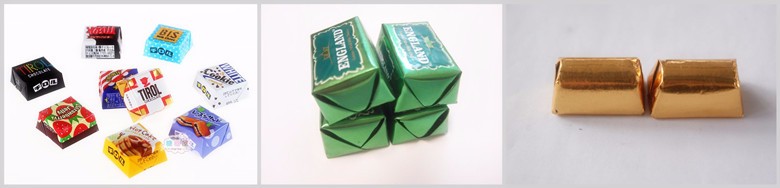

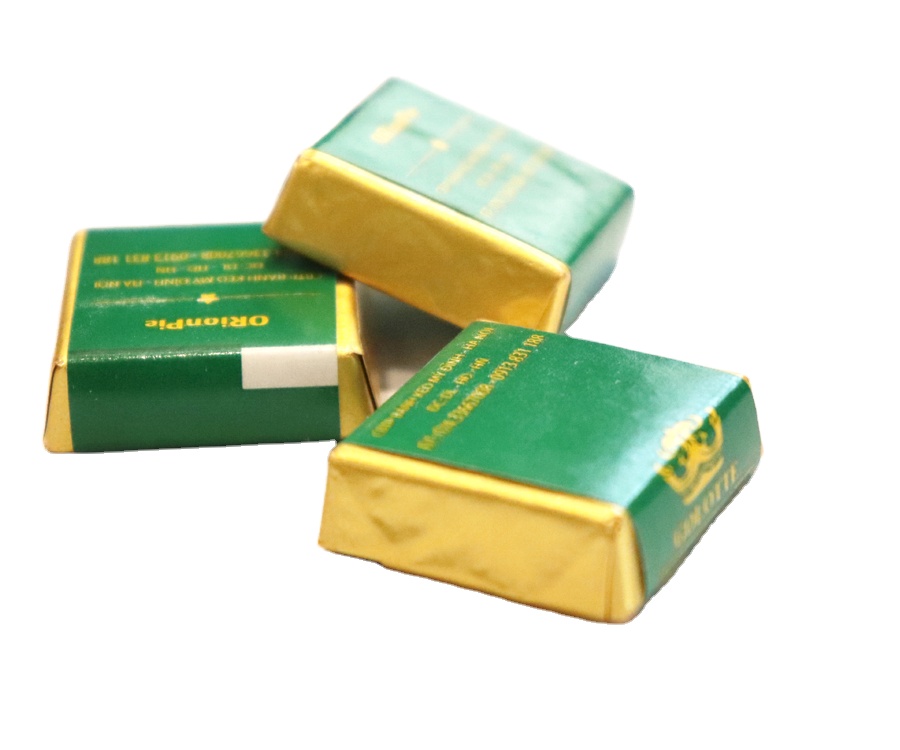

Functions show

Chocolate Fold Packing Machine Multi-Function Packaging MachineChocolate Fold Packing Machine Multi-Function Packaging MachineChocolate Fold Packing Machine Multi-Function Packaging MachineChocolate Fold Packing Machine Multi-Function Packaging MachineChocolate Fold Packing Machine Multi-Function Packaging Machine?

Company Information

?square chocolate fold wrapping machine

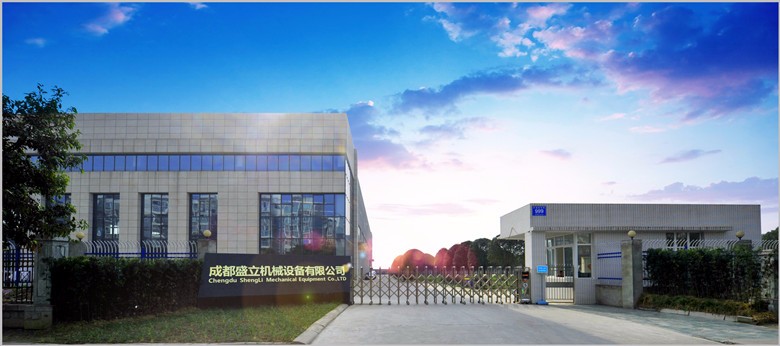

Chengdu ShengLi Machinery Equipment Co., LTD is one company which?are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades?(Chengdu WealthRise Complete Mechanical Engineering Co.,?Ltd is a wholly foreign-owned enterprise founded in 2004 ).
