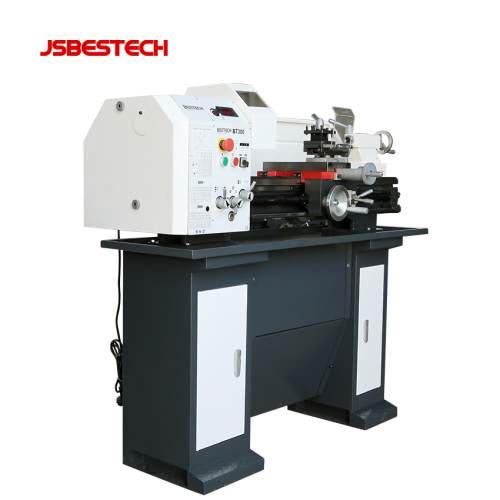

CJM300 metal bench lathe machine
Get Latest Price
You might also like
Basic Info
| Model No. | BT300 |
|---|---|
| Brand Name | JSBESTECH |
| Type | Horizontal Lathe |
| Power Source | Manual |
| Controlling Mode | Artificial |
| Automatic Grade | Manual |
| Setting Mode | Table |
Show More
Product description
|
Model No. |
BT300 |
|
Center distance |
700mm |
|
Max. Swing over bed |
300mm |
|
Max. Swing over cross slide |
180mm |
|
Width of bed |
182mm |
|
Taper of spindle bore |
MT5 |
|
Spindle bore |
38mm |
|
Number of spindle speed |
Variable speed |
|
Range of spindle speed |
80-2000rpm |
|
Range of cross feed |
0.01~0.10mm/rev |
|
Range of longitudinal feed |
0.085~0.832mm/rev |
|
Range of imperial thread |
8~56TP |
|
Range of metric thread |
02~3.5mm |
|
Top slide travel |
70mm |
|
Cross slide travel |
190mm |
|
Tailstock quill travel |
70mm |
|
Taper of tailstock quill |
MT3 |
|
Motor |
1.5KW |
|
Net weight |
280kg |
|
Packing size |
1500×750×700mm |
