1. Inserted type, easy to install.
2. Continuous on-line measurement
3. No moving parts, maintenance-free
4. Specific conditions do anti-corrosion design
5. Temperature compensation
6. Explosion-proof certificate（Exd II CT4）
7. Do long rod type design（max can do 2m）
8. Suitable for high pressure piping（max pressure 20Mpa）
Search
Sign In Join Free
1 / 6

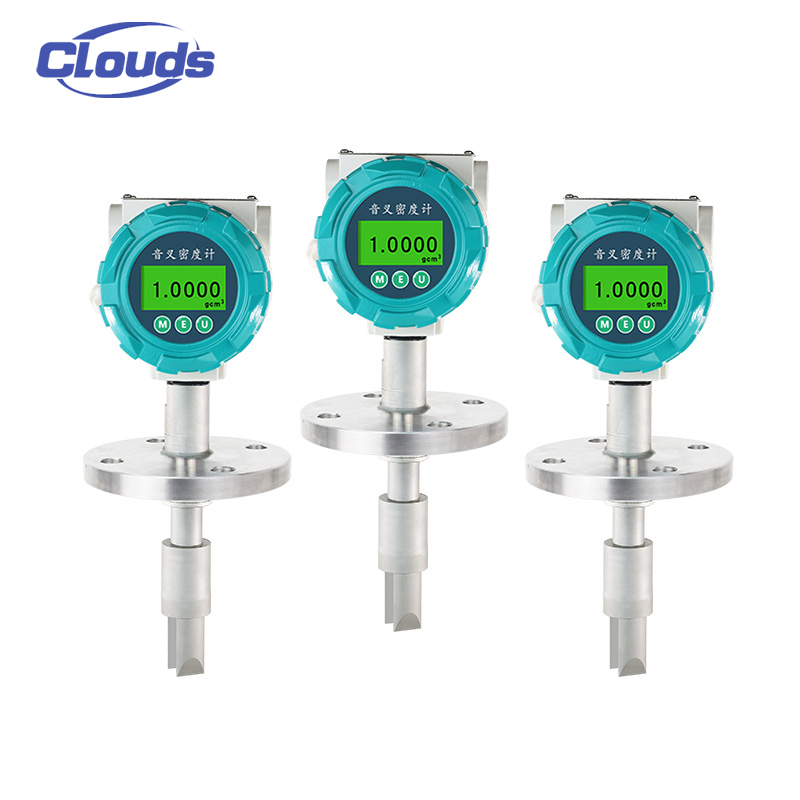

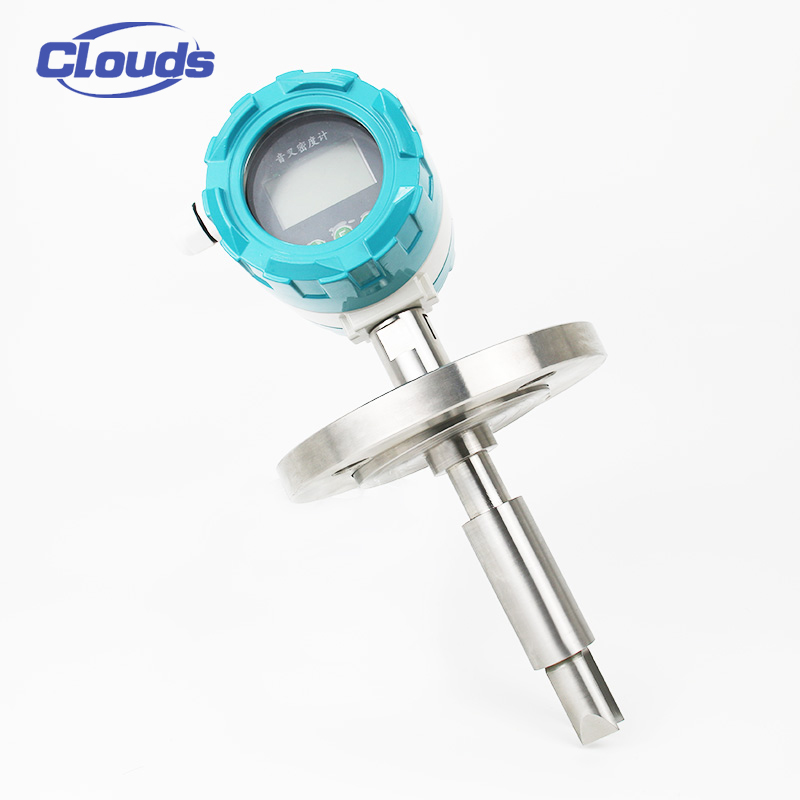

Clouds Density Sensor Explosion-Proof Insertion Digital Slurry Densitometer Tuning Fork Density Meter: Precision Instrument for Industrial Applications
$1560.71
≥5 piece
$1008.69
≥8 piece
$782.60
≥10 piece
Options:
- 0-3 g / CM3 (3 /2.5/ 2 /1.5/ 1)
- 0.001 g / cc
Get Latest Price
You might also like
Basic Info
| warranty | 1 Year |
|---|---|
| Type | Explosion-proof insert tuning fork densitometer |
| Customized support | OEM, ODM, OBM |
| Place of Origin | Shaanxi, China |
| Brand Name | Clouds |
Show More
Product description
Name | Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor |
Measure range | 0–3g/cm3 (3 /2.5/ 2 /1.5/ 1) (0 – 3000 kg/m3) |
Accuracy | ±0.001g /cc (±1 kg/m3) |
Operating temperature | -50℃ ~ +200℃ |
Max work temperature | 20MPa |
Fluid viscosity range | 0 – 20000 cP |
Temperature coefficient | 0.1 kg/m3/℃ |
Pressure influence | Can be ignored |
Built in temperature sensor | PT100 |
Wetted part material | Stainless steel, Hastelloy C22, manganese alloy 400, titanium alloy, etc. |
Fork body coating | Standard type, PTFE or electrolytic polishing |

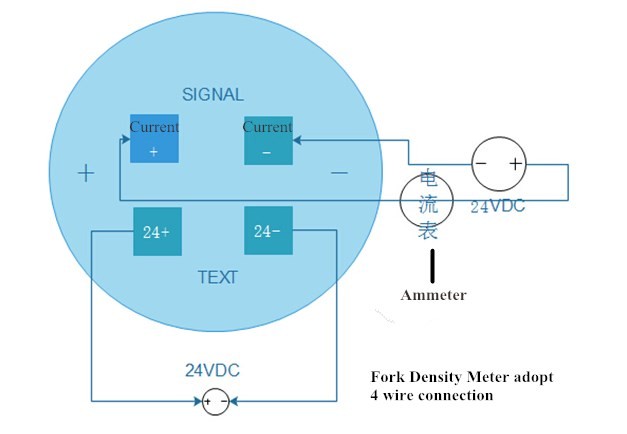

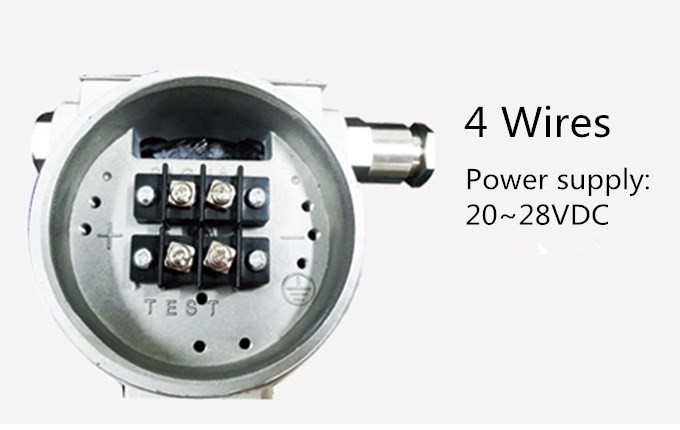

Power supply | 20–28 VDC，35–45 mA |
Analog signal output | 4-20 mA, isolated, non self powered |
Output accuracy | ±0.1%FS, ±0.05%FS (20℃) |
Output repeatability | ± 0.05% FS @ (-40~ 85℃) |

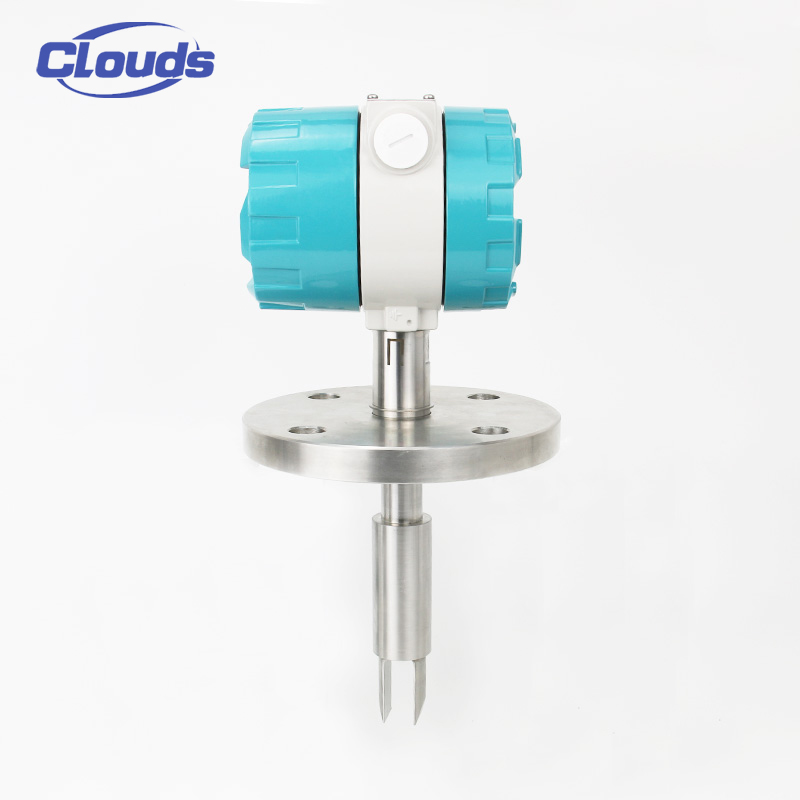

Process connection | 1.5"NPT threaded connections; din 50 PN40 and PN100 flange connections; |

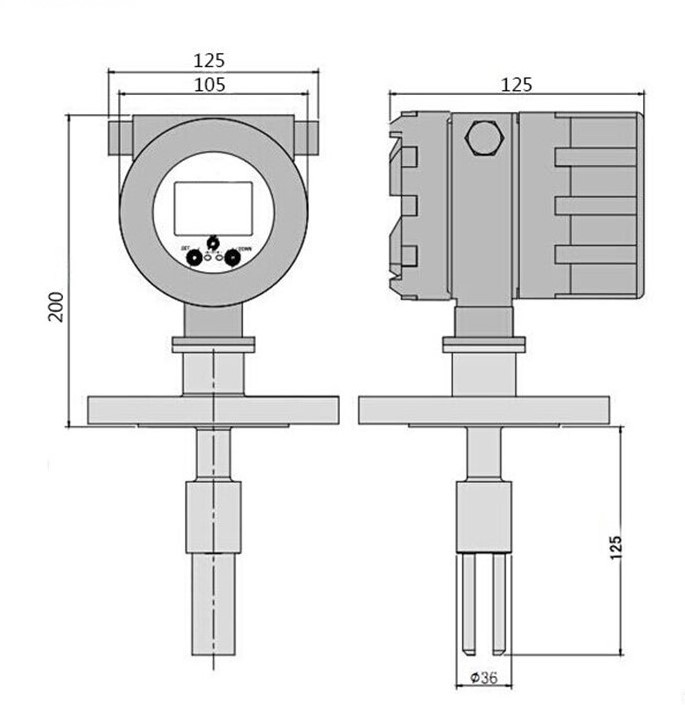

Insertion depth | 125mm~2000mm (from flange to the end of the fork) |
Display | Density value(kg/cubic meter or g/cc) showed at upper screen, the temperature showed at lower screen. |
Accessory | Can choose temperature of 4-20 mA output signal. |
Protection | IP65 |

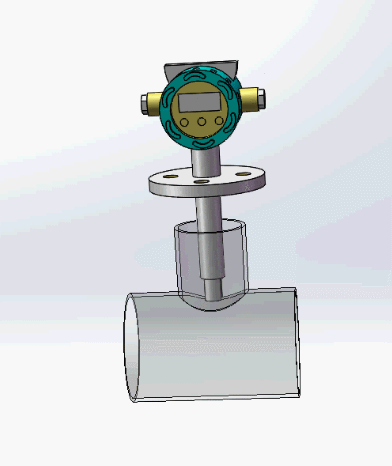

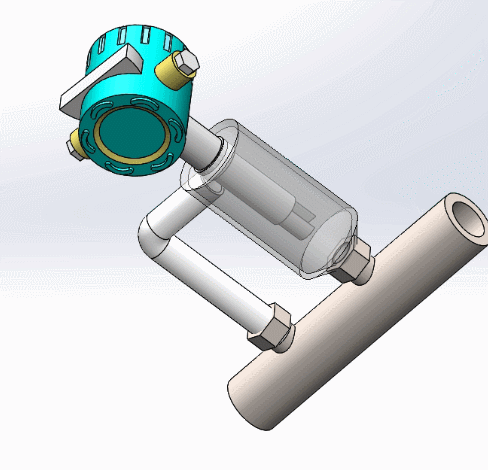

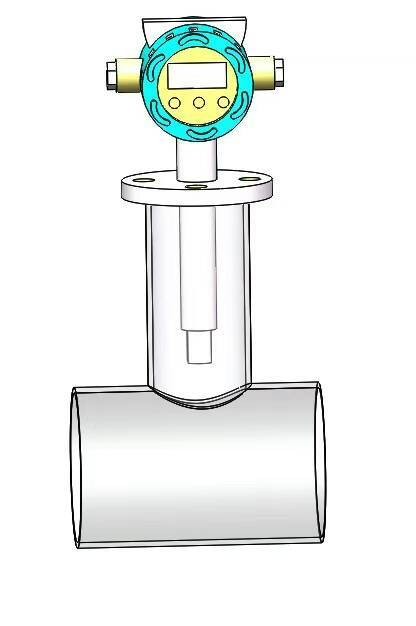

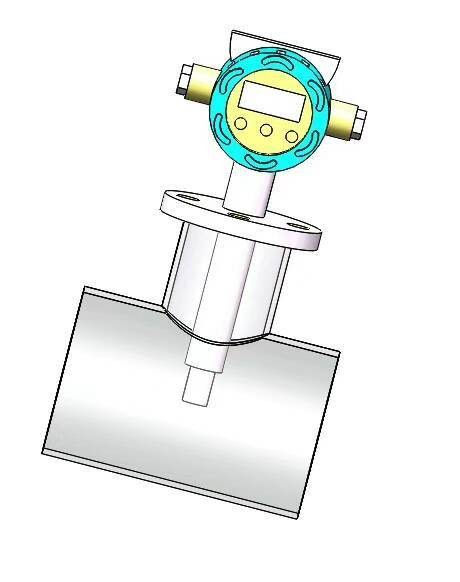

Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor with high precision, high applicability via introducing foreign advanced frequency tracking technology. Product design adopts plug-in mounting, widely used in medium density measurement in pipelines, open tank containers and closed tank containers. Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor is composed of two piezoelectric crystals, one piezoelectric crystal is used for generating vibration, the other piezoelectric crystal is used for measuring vibration, fork sensor built-in temperature sensor,provides temperature compensation.for piezoelectric crystal vibration.
Feature of?Tuning Fork Slurry Density Sensor
Strength of?Tuning Fork Slurry Density Sensor
1.Application for high precision density measuring, mainly used in power plant.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:Can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:Can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
