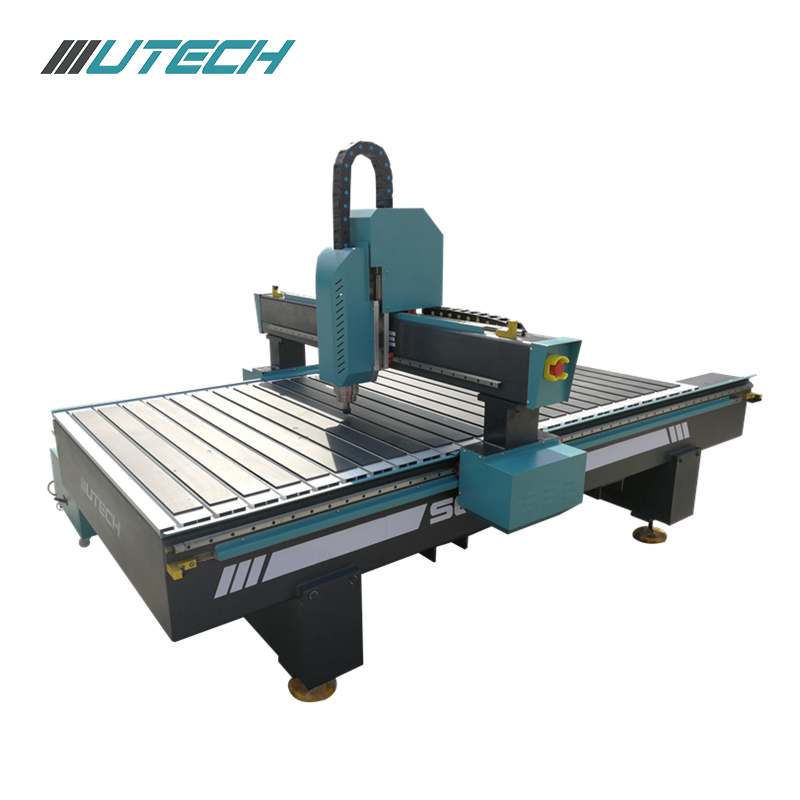

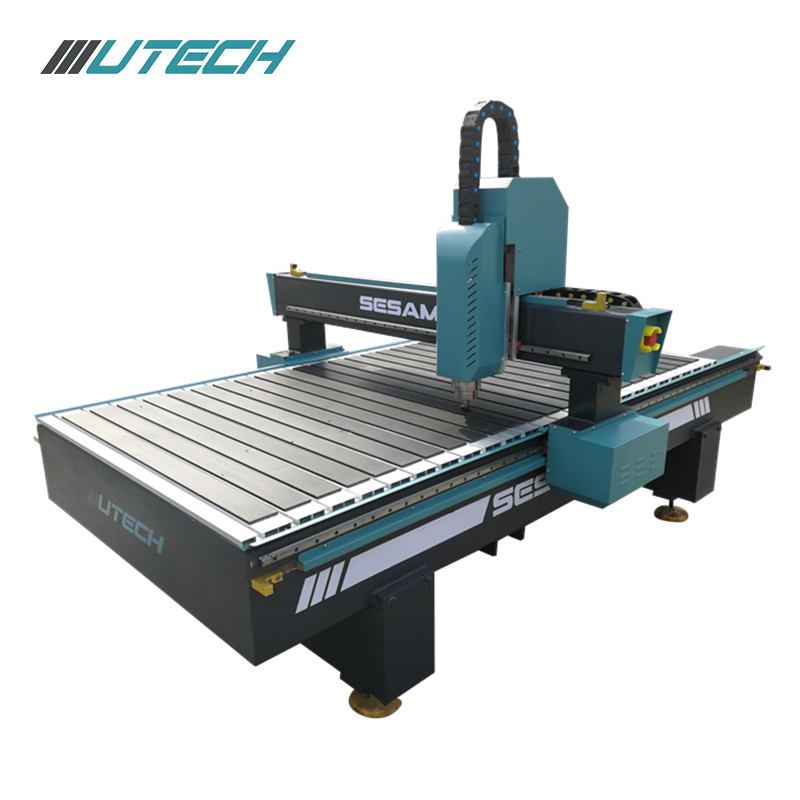

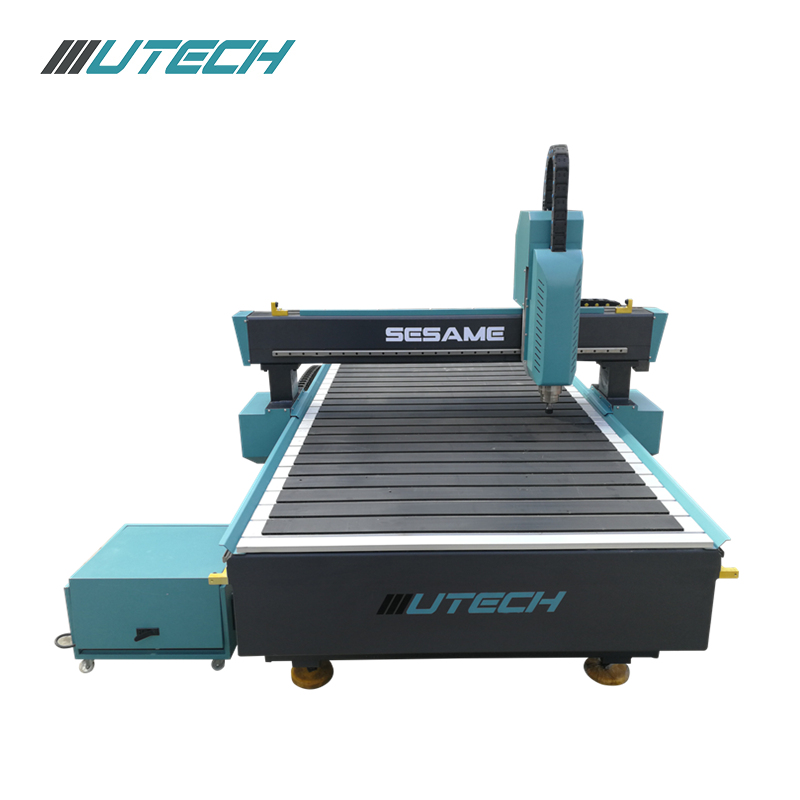

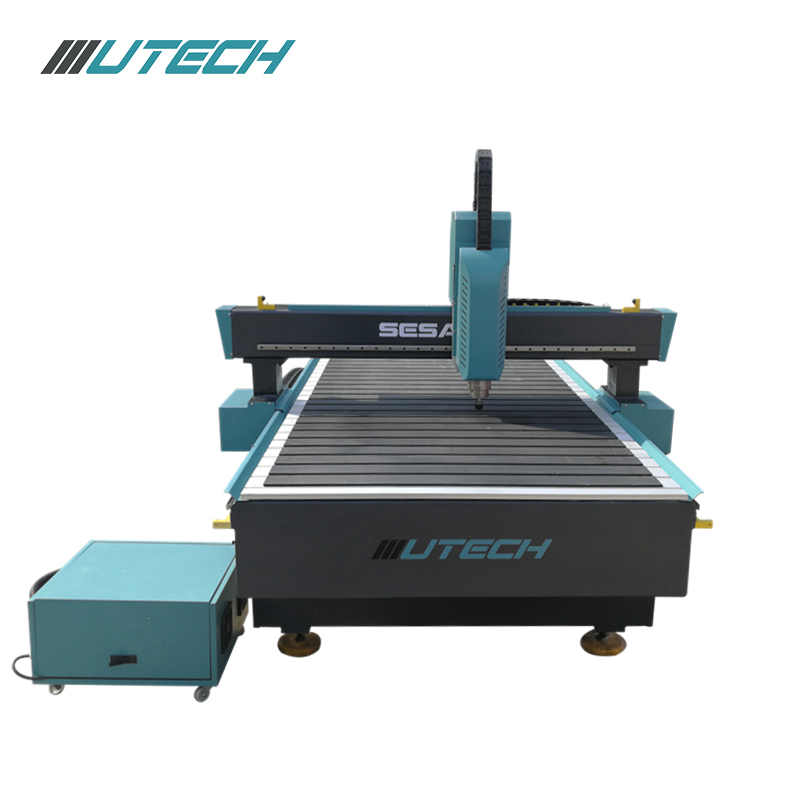

cnc machine router wood carving cnc router price

Product Application

1.Furniture Industry
2.Decoration Industry
3.Mould Industry
4.Craft Industry
5.Advertising Industry

6.Musical Instrument Industry

Main Features

1) Well-known 3 kw water cooling spindle, high precision, long life time, steady working, easy to start up.

2) Thicken square pipe structure, well welded, no distortion for whole structure.

Product Description:

SESAME CNC Router's technical parameters:

Parameters Model

Model  UT-1325 UT-1530 UT-2030 UT-2040 Custom made

Working area  1300*2500mm 1500*3000mm 2000*300mm 2000*4000mm Custom made

Accuracy ±0.03mm

Table Surface Vacuum T-slot (or T-slot Table& vacuum table combined/T-slot table )

Frame Square pipe welding bed structure 200*300mm+150*200mmgantry

X, Y Structure Gear and rack transmission, Taiwan PMI Linear Rail

Z Structure Taiwan TBI Ball Screw, Taiwan PMI Linear Rail

Max. Rapid Travel Rate 45000mm/min

Max. Working Speed 25000mm/min

Spindle Power 3.2kw/3.5kw(4.5kw, 5.5kw for option)

Machine Advantages:

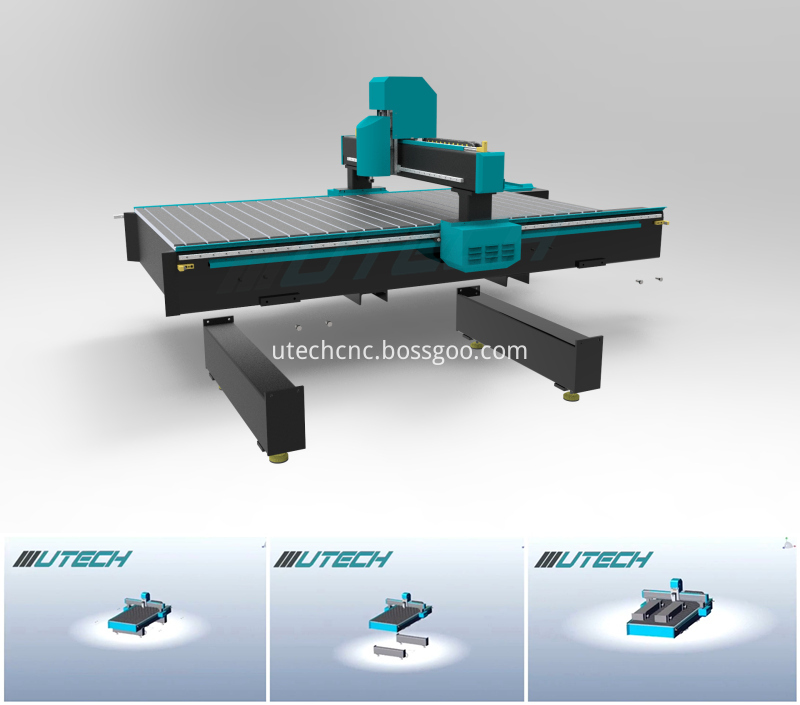

The machine main body and the machine legs are freely separable when delivery the legs are disassembled and put on the table, which will reduce the machine's package size, then will save the shipping cost.

The bed is the backbone of a CNC router machine, our machine bed adapts 200*300mm thick wall steel square tube welded together, solid and not deformed. After high-temperature tempering treatment to ensure the best strength and rigidity side arranged structure, heavy column, 150*150mm gantry. precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine. Compared to ordinary machines, it has better stability.

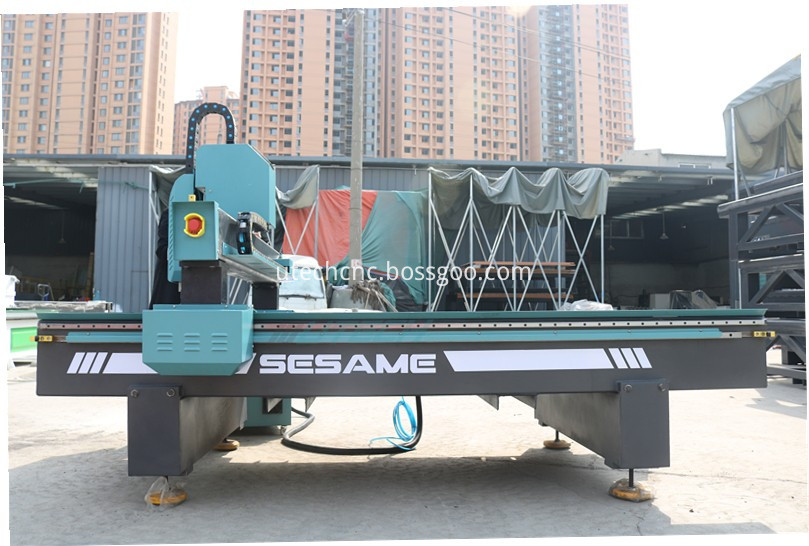

The forklift location display of Sesame CNC router machine.
Bed welding process increases the reserved forklift space, highlights two major advantages: First, it can better protect machine body and cargo-carrying weight; Second, it's more convenient for customers to load or unload the equipment.

Sesame adapts Portable detached optional design control cabinet.

1)Interfacing reaches the purpose of plug and play.

2)Save more space.

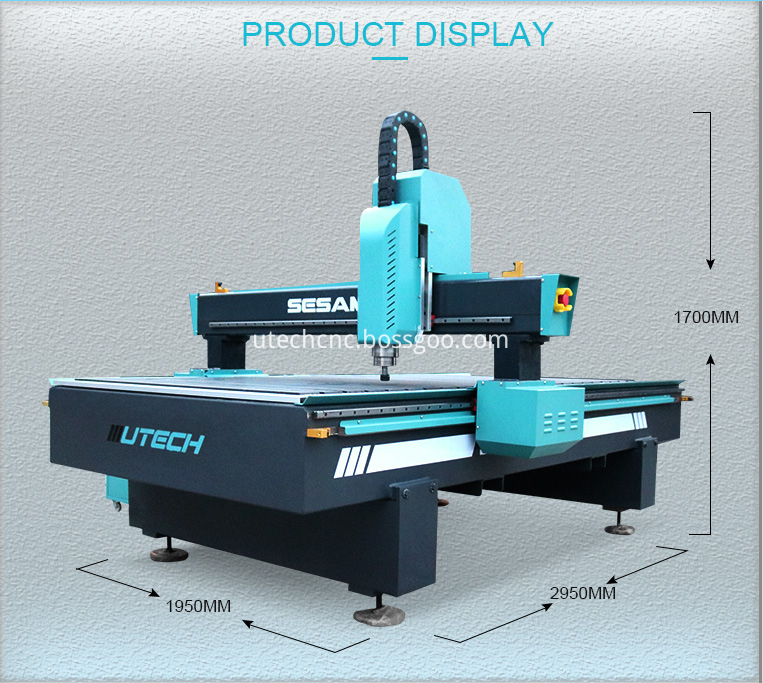

Detailed Images

Packaging & Shipping:

SESAME CNC Router's Packaging&Shipping:

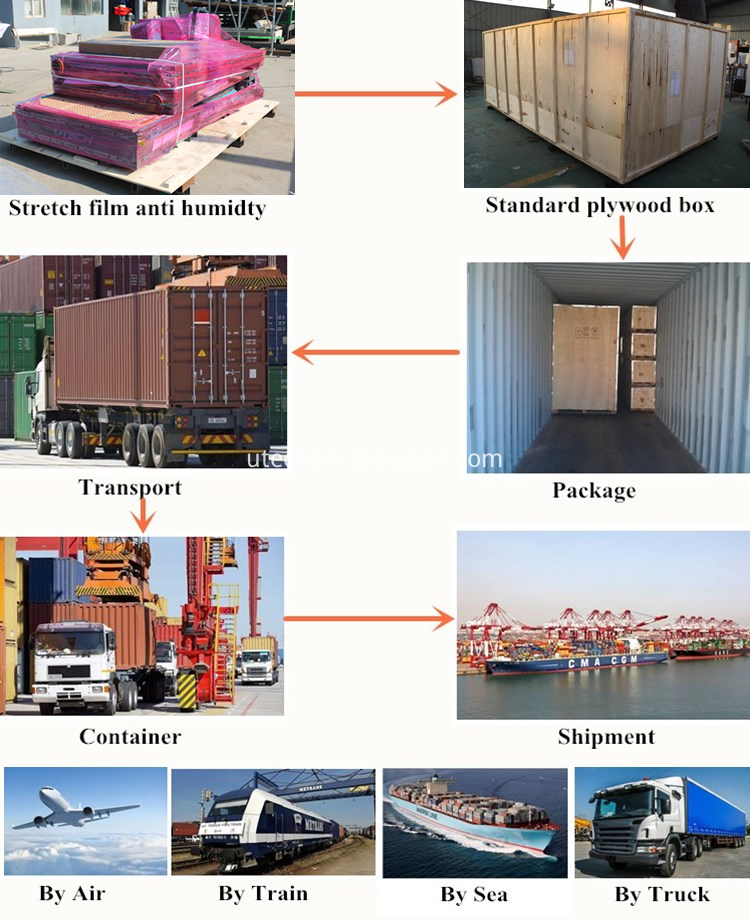

The machine will be packed with wrapping film, EPE foam, and wooden case(composite material box/plywood case).

SESAME CNC Router's machine legs and machine bed can be separated freely, when machine shipping, we'll dismantle the machine legs, they can help you save more shipping fee.

Package Details:

1. Our Wooden Case is after fumigation treatment. Needn`t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we`ll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rustproof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.

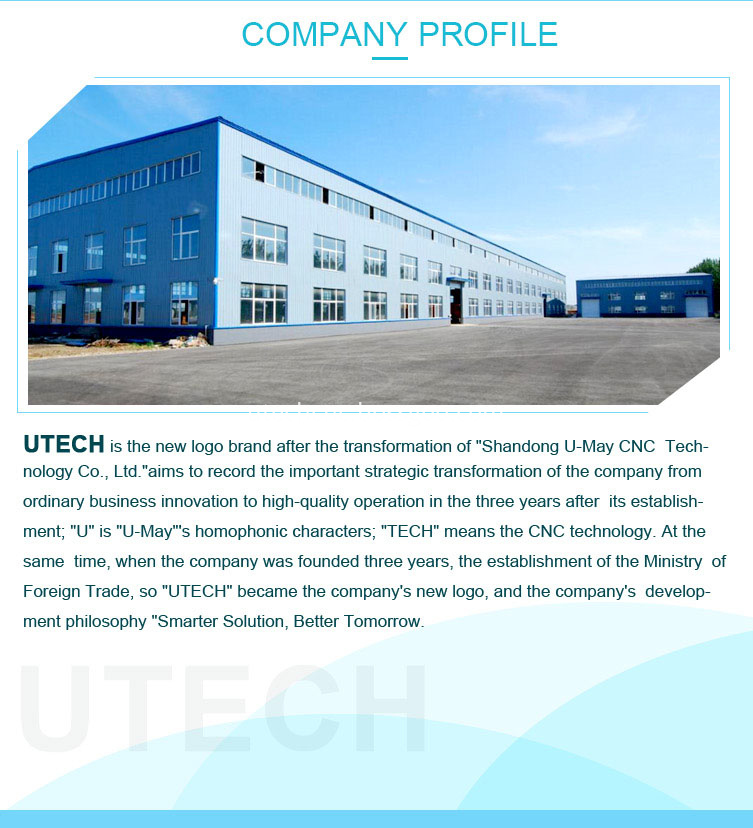

Company Information:

UTECH have Cnc Router Series, include Mini Desktop Cnc Router, Advertising Cnc Router, Woodworking Cnc Router, Professional Stone Cnc Router, Sign Cnc Router, ATC Cnc Router; Vision Localization/CCD Series include Cnc Router with CCD, Oscillating Knife Cutter with CCD.

Exhibition Show:

We are the manufacturer of CNC Router Machine. Utech has provided the super durable and latest design of CNC Router Machine with competitive price- Sesame series and Sofia Series.

We hereby sincerely invite you and your company representatives to visit our booth at the Shanghai SIGN CHINA 2019 Information below is for your reference.

SIGN CHINA 2019. Shanghai

Date: September 18th, 2019- September 20th, 2019

Venue: Shanghai

Our Booth No: W4 Hall C42

( If you wanna know more details about UTECH products, the exhibition, or simply need guidance to the location during BOOTH, just call me! )

Certifications:

After machine shipped, I'll make some documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, etc for you. If you need, we also can provide ISO9001, CE, Certificate of Origin for helping you pick up your machine.

CNC Router Machine UTECH's service:

? The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.
? We are responsible for offering the fittings free of charge during the guarantee period, while it is preferred you send the damaged fittings to us by courier with your charge for our testing, after confirming damage, we will send back the alternative fittings to you. After the guarantee of a quality period, the parts required repairing or change, if any, shall be paid.
? When you meet some complicated problem and online-support cannot solve it, we can offer Door-Visiting Service. If our engineer to assemble or/and maintain or/and adjust the machine is/are required, we shall assist to deal with the visa formality and prepaid traveling expenses and accommodation to us during the business trip and the service period before their dispatch. And you can arrange for the translating person for the service engineer during their service period. Or you can send your engineer to China. We will offer long-term technical training to him for free.

Training, Commissioning & Startup of  SESAME CNC Router:

? We will supply with the machine Operation Manual and Training CD in English version for Installing and operation, including the introduction for the composing of equipment, working principle equipment, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures of equipment. Personal demonstration for installation, adjusting, and operation of equipment, and the computer. Common malfunction eliminating measures, etc.

? We will supply Instruction for simple troubleshooting of the machine when dispatching, which can help you deal with the common problems happened unluckily. Also, one set of [Instruction Book", [Operation Manual" and [Training Video Disk" for machine/software will be sent to you along with the machine, which could be easily understood and friendly handled by you and your customers.

Machine's sampleS

1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

3. Woodworking industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.

4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mold, biscuit, candy, chocolate mold.

5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
