Cnc Router Advertising Machine
Basic Info
| Model No. | DL-1325 |
|---|---|
| Brand Name | DEELEE |
| Type | Wooden Mold Router |
Product description

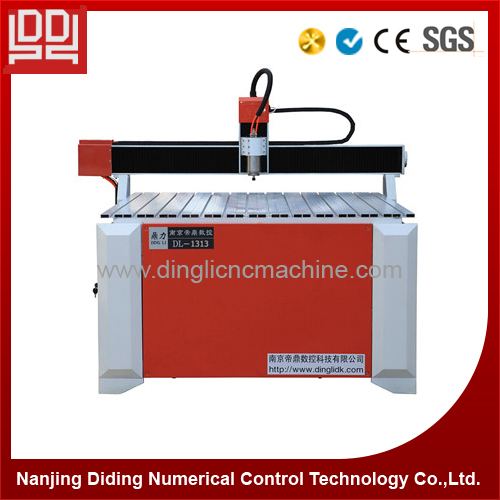

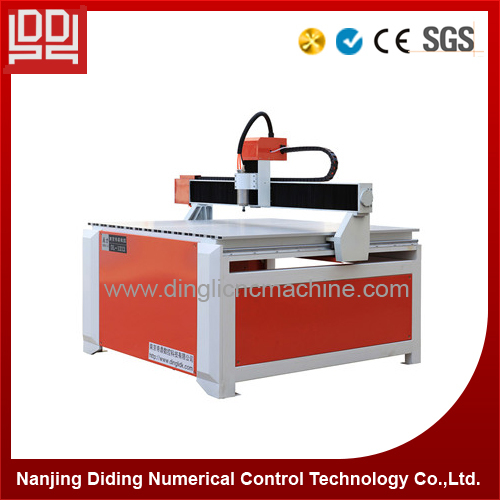

Cnc Router Advertising Machine
Features:
1· Casting iron lathe bed, firmness.

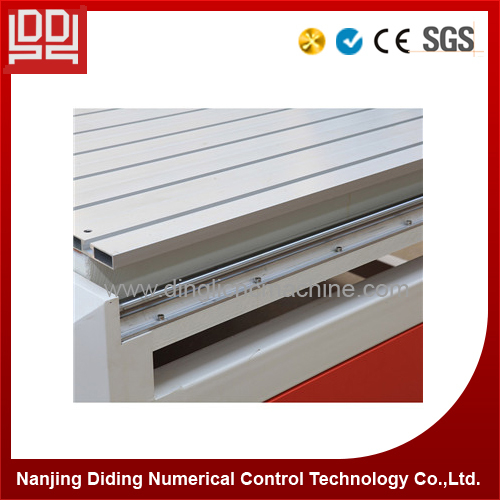

2· Imported ball screw rod and linear guide rail, high precision.
3· High subdivision step motor, high speed, low noise and powerful.

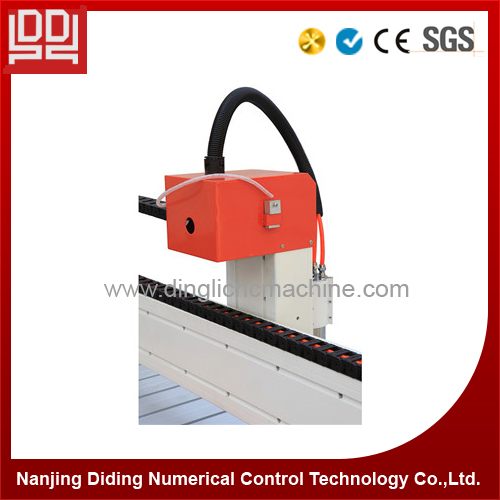

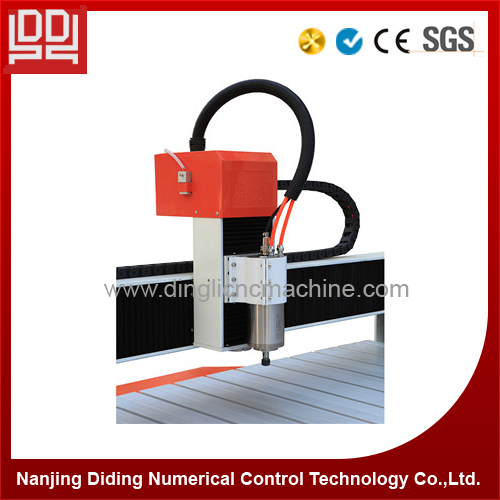

4· Brushless water cooled spindle with 24,000rpm,VFD, Long life time.
5· Connect with all kinds of 3D engraving software.
6· Software update timely.
7· DSP control system optional.
8· High-power, deeply incise.
PS : All the parts of the machine can be do some changes to meet your requirement.such as the guide rail,motor,spindle cooled way(air cooled or water cooled),also the table can be customised.
so please feel free to contact us if you have any futher questions. thanks really very much!
Parameters:
|
Model |
DL-1325 |
|
Working Zone: (X Y Z) |
1200×2400×110mm |
|
Table Size (W×L) |
1420×2680mm |
|
Resolution |
<0.003mm |
|
Cutting Accuracy |
±0.02/300mm |
|
Repositioning Accuracy |
±0.01mm |
|
Drive Type |
Stepper motor |
|
Spindle |
1.5KW liquid-cooled with 24,000rpm,VFD |
|
Max. Working speed |
8m/min |
|
Collets Type |
3.175mm/ 4mm/ 6mm |
|
Command Code |
G*.u00*.mmg*nc.,HPGL |
|
Operational System Software |
Type 3/Artcam/Ucancam |
|
Control System |
NC studio |
|
Interface |
PCI |
|
Max. Power Consumption |
3.2KW |
|
Voltage |
AC220V±10%/50~60Hz |
|
Standard Work Surface |
Aluminum profiles |
|
Weight |
550kg±10% |
|
Warranty |
12 Months (spindle: 6 months) |
samples:
