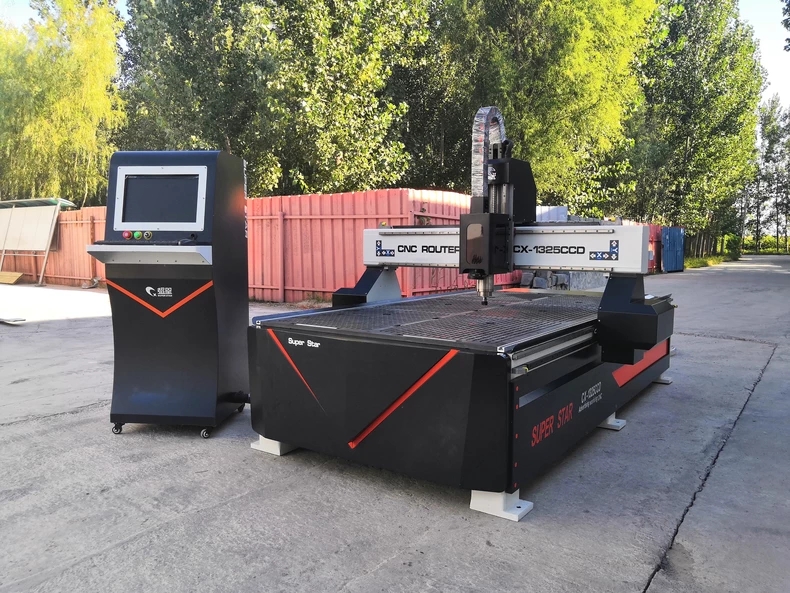

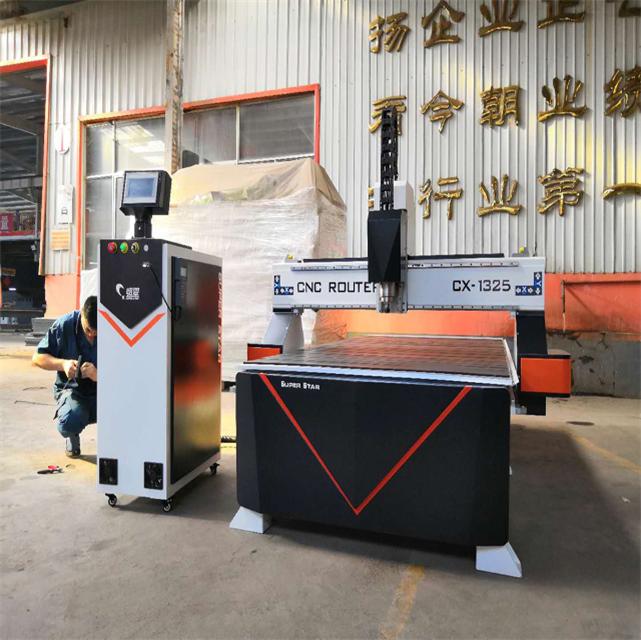

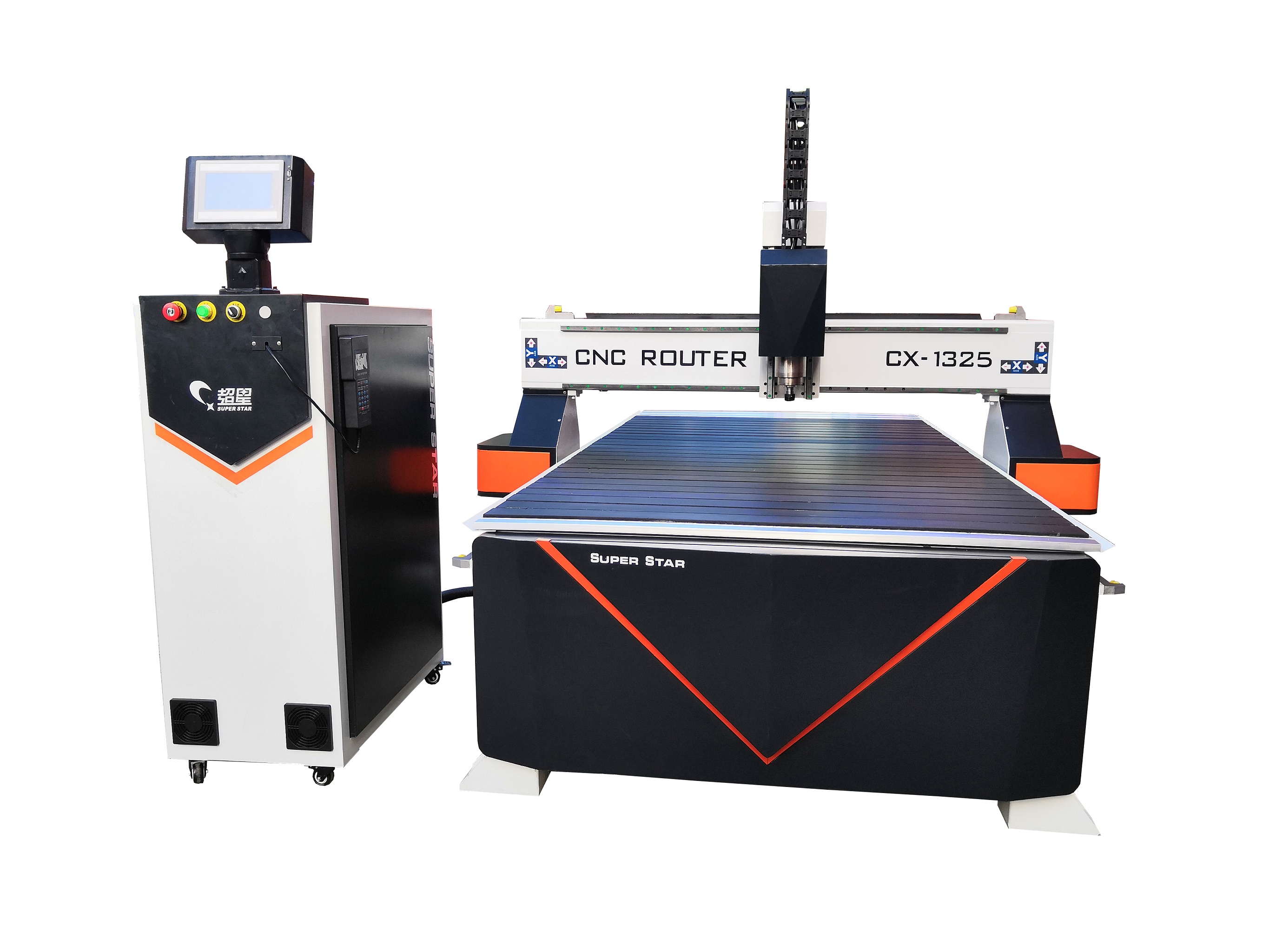

CNC router table 4x8 cnc router relief

This cnc router machine is a kind of interactive advertising machine, used for advertisment industry. Its hot selling advertising machine in the world, with good price and best function.

This digital advertising machine can also cut aluminium, wood, acrylic, plastic, wood, mdf etc. Its a total name of star advertising machine.

Technical parameter of wood router cnc machine:

Working Area(X*Y*Z)	1300*2500*200mm
Working Accuracy	±0.05mm
Re-positioning Accuracy	±0.05mm

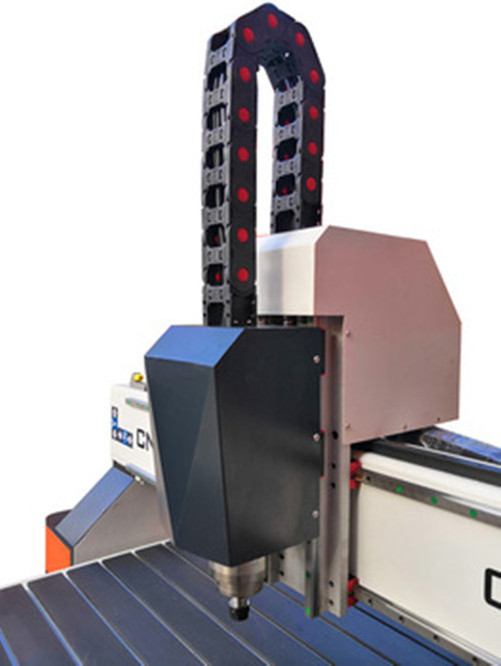

Spindle	3.0KW Water cooling
Working voltage	AC380V/50HZ
Transmission	Square rail liner bearing TAIWAN TBI20
Motor	450B
Driving motor	Stepper(YANKON 2D811)
Table Surface	Manual valve

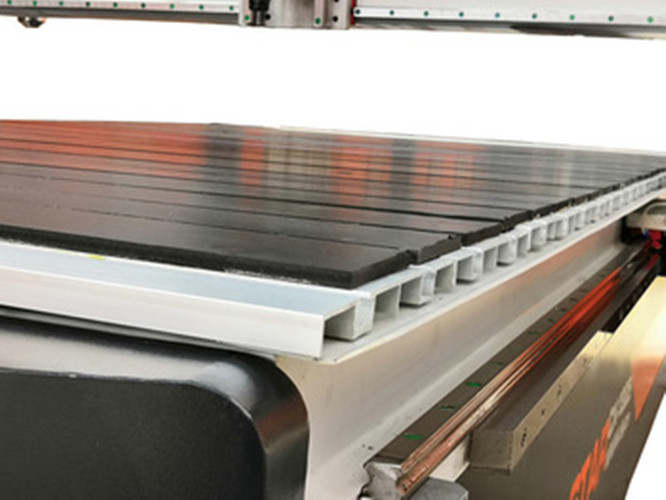

Table Type	Vacuum adsorption
Vacuum pump	5.5KW China oil-free Vacuum Pump
Control Cabinet	Independent Small Computer Cabinets (920)
Vacuuming	There are vacuum devices, but no vacuum cleaners.
Max Working Speed	15000mm/min
Max Travelling Speed	25000mm/min
Dimension	3100*1800*1800mm

Advertising machine

Application

Single Head Woodworking Machine Mainly used for wood furniture industry, such as wood door,cabinet door,

art and craft door, MDF cutting, wood board cutting and other nonmetal material,etc.

Packaging&shipping

Packing In plastic film or wooden case.

company information

HT MACHINERY is a manufacturer belongs to SUPER STAR GROUP since 2003,which is a professional company

researching,developing and manufacturing wood cnc machine.Our company devotes to carving CAD/CAM technology and

CNC numerical control technology research and development.We have made great progress in the precise CNC

router design theory and craft technology.

our advantage

?  Well-educated and experienced international sales.

?  Professional engineers in our R&D department.

?  CE Certification and BV Certification.

OUR GROUP

For 16 year's hardworking and perfect management,HT machinery rely the competitive price,excellent quality

and good service won the good reputation of domestic and overseas clients.
