CNC Small Gear Hobbing Machine Sale

Get Latest Price

You might also like

TOMAN gear hobbing machine vertical

1 Set/Sets (MOQ)

automatic gear hobbing machine

1 Set/Sets (MOQ)

Metal Reducer Gear Hobbing Machines

1 Set/Sets (MOQ)

toman small gear hobbing machine sales

1 Set/Sets (MOQ)

toman small gear hobbing machine

1 Set/Sets (MOQ)

cnc gear hobbing machine maker toman Y3110

1 Set/Sets (MOQ)

toman small gear hobbing machines

1 Set/Sets (MOQ)

TOMAN best cnc gear hobbing machine Y3110

1 Set/Sets (MOQ)

Y3110CNC gear hobbing machine toman

1 Set/Sets (MOQ)

TOMAN CNC gear hobbing machine toman Y3110

1 Set/Sets (MOQ)

Basic Info

Model No.	Y3110CNC7
Brand Name	TOMAN
place of origin	China
Whether CNC machine tool	Cnc
status	New
Types of	Gear Hobbing Machine
Video factory inspection	Provided
Mechanical test report	Provided
Core component warranty period	1 Year
Core components	Gear, Engine, Pump, Gearbox, Motor
warranty period	1 Year
Core selling point	Automatic
Applicable industry	Manufacturing Plant, Farms, Energy &Amp; Mining
Out-of-warranty service	Online Support, Spare Parts, Video Technical Support, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	India, Malaysia

Product description

Zhejiang TOMAN Intelligent Technology Co., Ltd. was founded in 2006, mainly engaged in the research and developments, manufacturing and service of Gear Automation Equipments, Bearing Automation Equipments, Intelligent Components、Industrial Internet Application and System Integration based on Industry 4.0.

TOMAN is committed to being a leader in the professional gear manufacturing field and creating wealth for customers and society.

Speciallized in the production of all kinds of gear cutting machine tools and automatic production line.

Provide the customers with high efficiency, high precision, cost-effective comprehensive solutions of gear cutting.

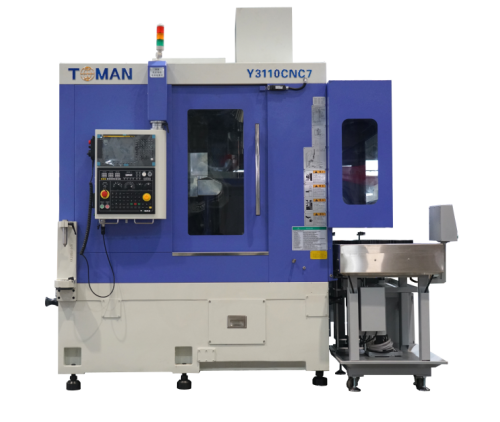

Y3110cnc7 Hobbing Machine Png

Y3110 CNC7 Hobbing Machines are vertical hobbing, which are capable of producing disc gear, shaft gear, helical gear and small taper tooth, drum gear, spline, worm gear, sprocket, double or multi-linkage gear with different modules,teeth number, helical angles and directions.

Customers can choose automatic loading and unloading device, automatic material storage machine, burring device ,coarse positioning device according to the processing demands.

Y3110 CNC7

7 Axis-CNC Hobbing Machine

Ideal for Hobbing Small Gears

An Engery Saving and Complete Dry Cut Hobbing Machine

FANUC numerical control system and servo drive, system reliability, simple operation

Automatic loading/unloading material device

(Dry Cutting Hobbing Machine or Wet/Dry Cut Hobbing Machine is optionally available.)

Max. Workpiece Diameter: Φ100 mm

Max. Module: 3

Main Technology Parameter

CNC hobbing machine	Unit	TMY3110
		Dry hobbing
Maximum workpiece diameter	mm	Φ100
Maximum module	mm	3
Worktable surface diameter	mm	Φ150
Hob maximum assemble diameterx length	mm	Φ110x150
Horizontal distance between hob center and worktable center	mm	5-145
Maximum hob axial movement amount	mm	130
Hob head slide travel （Z axis displacement）	mm	190-400
Max. swiveling angle of the hob head	Deg	±45°
Hob spindle motor power	KW	7.5
Maximum hob spindle rotate speed（B axis）	rpm	3000
Maximum worktable rotate speed（C axis）	rpm	400
Radial feed speed(X axis)(stepless)	mm/min	1-2000
Radial maximum rapid moving speed（X axis）	mm/min	8000
Axial feed speed(Z axis)(stepless)	mm/min	1-2000
Axial maximum rapid moving speed（Z axis）	mm/min	8000
Tangential travel feed speed（Y axis）（stepless）	mm/min	1-1000
Tangential maximum rapid travel speed（Y axis）	mm/min	3000

Standard Configuration

Hob arbor assembly （ Φ32）	hydraulic system
Hob arbor automatic clamping device	NC controller system
Workpiece automatic clamping device	NC data memory card
Spindle positioning	Operational software
Fully-enclosed safeguards	Residual-current circuit breaker
Woking light	Hands action button
Three colour lights indicate machine status	RS232C connector
Workpieces counter	Air conditioner for electric cabinet
Main spindle ampere meter	Chip conveyor
Chip cart	Automatic lubrication system
Cutting oil tank （Wet hobbing ）	Mist collector
Cold spray gun （Wet hobbing ）	The sizing block for machine adjustment

Optional Configuration

Automatic loading/unloading material device	Workpiece clamping
Automatic material storage	Workpiece rough locator device
Deburring device	Automatic tooth align device
Independent hob adjustment device	Oil cooling device
Hob arbor assembly:（metric system：Φ10, Φ13, Φ22, Φ27, Φ40）,（Inch system： Φ16, Φ22.225, Φ26.988, Φ38.1)

Application:

Steering Pinion;
Geared Motor;
Compact Reduction Gear;
Motorcycle Gear etc.

Main Features

1. With the full CNC system 7 axis and 4 axis linkage, using the generating method principle, to achieve indexing and differential compensation movement by the CNC system electronic gearbox function, and produce Cylindrical Spur Gear, Helical Gear, Small Tcone Tooth, Drum Tooth, Spline, Worm Gear, Sprocket and other teeth processing.

2. Adopted modular design, each functional components can be quickly combined into models with different functions, to meet the customer personalized, fast delivery requirements.3. Easy to access and maintenance components with combining the hydraulic, lubricating and pneumatic components onto the machine tool.4. Has fault self-diagnosis, spindle overload automatic monitoring and alarm protection functions etc.5. Customers can purchase automatic loading and unloading device, automatic bin, deburring device and rough positioning device according to the processing needs.

6. The dual-station loading and unloading manipulator design of the processing position and the replacement position, compact and reliable structure, which saves the loading and unloading time to the greatest extent, and realizes less and unmanned processing, to improve the processing efficiency of the machine tool.
