Product Description

Mayflay can study lines in accordance with specific production needs depending on the quantity and quality of the material, even when the space is limited.

Coil Processing Systems for Automotive Stamping Press lines

These lines have been designed to handle coils intended for making structural elements for the car sector and feed presses with progressive dies. Specific systems are introduced into these lines for preparing coils in hidden time and, if requested, capable of cutting sheet to length for feeding transfer dies. The coils can be treated by levellers specially designed for eliminating internal stresses and for obtaining high piece quality as requested by the quality standards in the automotive sector.

Coil Processing Systems for Home Appliance Stamping Press lines

These lines have been designed for treating coils with a delicate surface finish. The particularity of these lines comes from the introduction of systems and features aimed at maintaining the aesthetic and qualitative characteristics of the coils (line with loop) as required specifically by the market and by the end-product.

Coil Processing Systems for Punching Stamping Press lines

Lines specially designed for working coils intended for precision production. The coils can be treated by levellers specifically designed for eliminating internal stresses and for obtaining the high piece quality requested by the quality standards in the sector.

Coil Processing Systems for  lamination steel Stamping Press lines

Lines specially designed for production using fast presses. Systems that maximize the performance of the feeder are introduced into these lines as requested by the specific market.



Compact System Press Feeding Machines
Model:MAC5
Specifications
Model	MAC5-600H	MAC5-800H	MAC5-1000H	MAC5-1300H
Material Width(mm)	70-600	70-800	70-1000	70-1300
Material Thickness(mm)	0.8-9.0
Max.Coil Weight(kg)	5000	5000	10000	10000
Max.Coil O.D.(mm)	1400
Coil l.D.(mm)	508
Feed Length(mm)	0-500
Max.Line Speed(m/min)	22
StraightenerRoll (pcs)	upper5/lower4
Feed Roll(pcs)	upper1/lower1
Main Motor	AC22		AC30
Mandrel Expansion	Hydraulic
Reel Motor(kw)	5.5	7.5	11	22
Power(V)	3phase 220V/380V/50HZ		3phase 220V/380V/50HZ
Operating Air(Mpa)	0.5

Remarks:

1)The above figures are the material having yield strength σs=245N/mm2.

2)Specifications are subject to change for improvement without notice.

Products Show

The Main Detailed Parts of  Coil Processing Systems For Press Line as below:

1. Coil Car---Hydraulic power, wear-resisting surface
2. Decoiler Mandrel ---Hydraulic Expansion, Delta Inverter
3. Pressing Arm---Coil well-knit, no disperse
4. Limiting Arm--- Locating coil, avoid coil shuffling
5. Support Arm---Auxiliary support coil
6. Coil Inlet---With supporting swing arm
7. Control Cabinet---Weinview Touchscreen
8. Straightening Part---GCr15 steel straightener rolls
9. Handwheel --- Straightening value adjustment
10. Shearing Unit---Hydraulic shear (Optional)
11. Lubrication Unit---Automatic control, 20L (Optional)

12. Outlet Bracket  --- Adjustable length

Application

Automobile stamping, appliances manufacturing, computer and electronic componets, hardware and metal parts etc industry.

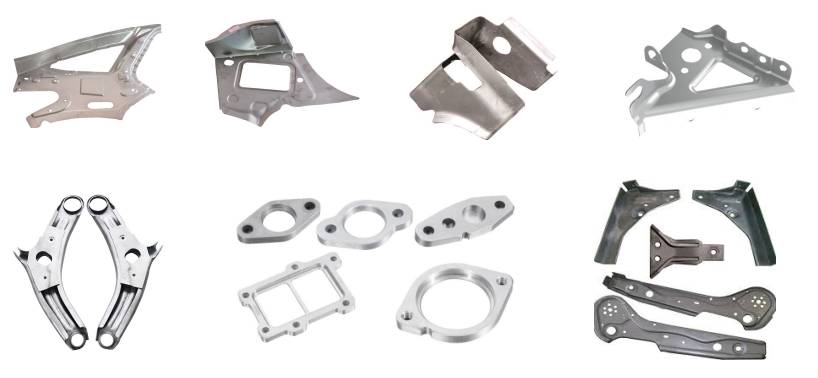

Automotive Parts: Bracket, Damper, Barke Pad, Tie Bar, Electric Accessory, Shell Parts Of Printers, Computer Frame,Slide Rail of Car Seat, Splash Shield of car body and etc

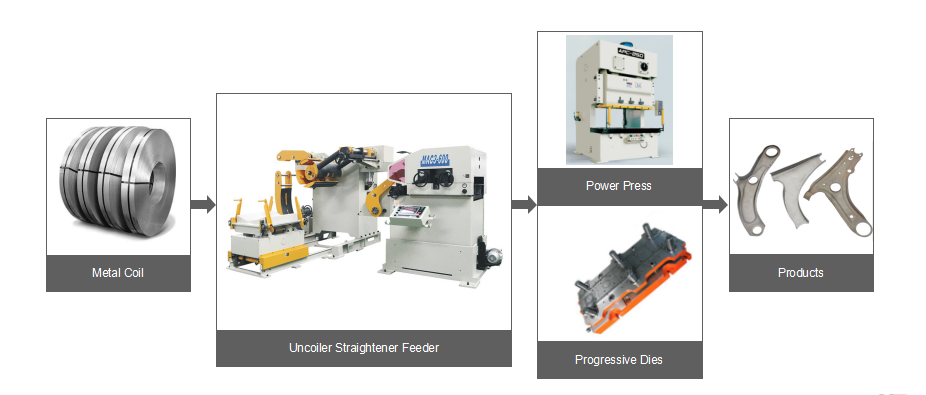

MAC4 Coil Processing Systems For Press Line is working in our customer's factory.

Coil Processing Systems For Press Line for making the bracket coil sheet feed line.

This machine is workinng in one of our customer's factory, they produce U type parts with Coil Processing Systems For Press Line.

With the Yaskawa Servo Systems and Mitsubishi PLC control, the feeding line can reach ±0.15mm feeding accuray.
