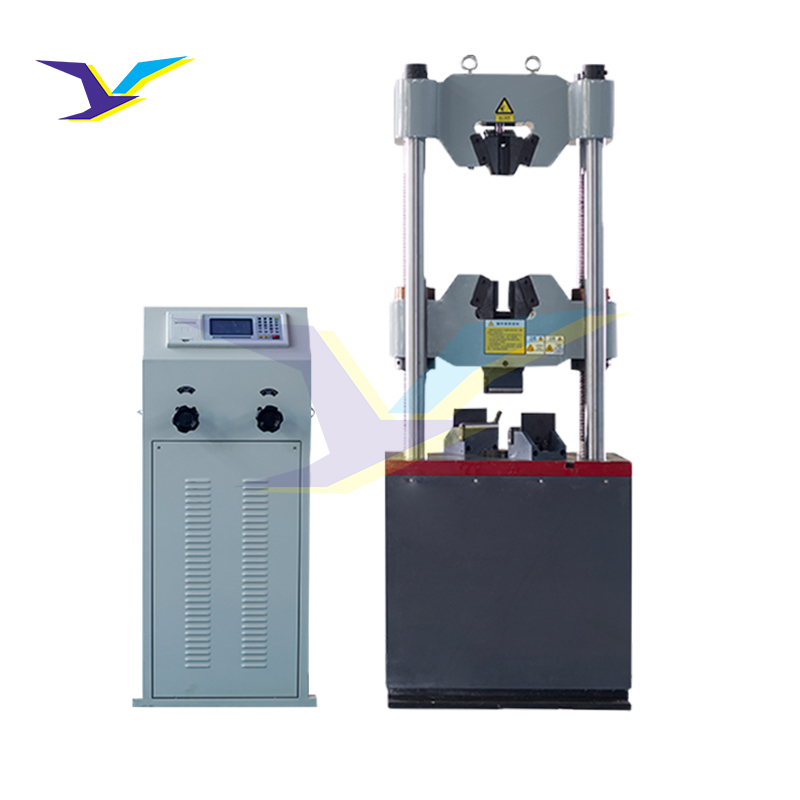

Computer-Controlled Hydraulic Universal Testing Machine
$4000.00
≥1 piece
$3000.00
≥3 piece
use:
- Compression Testing Machine
- Strength Testing Machine
- Tensile Testing Machine
- Cement Testing Machine
- Bending Testing Machine
- Universal Testing Machine
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm |
| Place Of Origin | FuJian |
| Brand Name | East |
| Model Number | STD-1006W |
Product description
?
?
This series of testing machine can be used for material stretching, compression and bending tests in this environment if the environmental device is added. For example: high temperature stretching, low temperature stretching, compression and other tests.
It is applicable to iron and steel, metallurgy , building materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and research institutions.
?
?
| Model | STD-106W | STD-306W | STD-606W | STD-1006W | STD-2006W | ||||||
| Structure | 6 column | ||||||||||

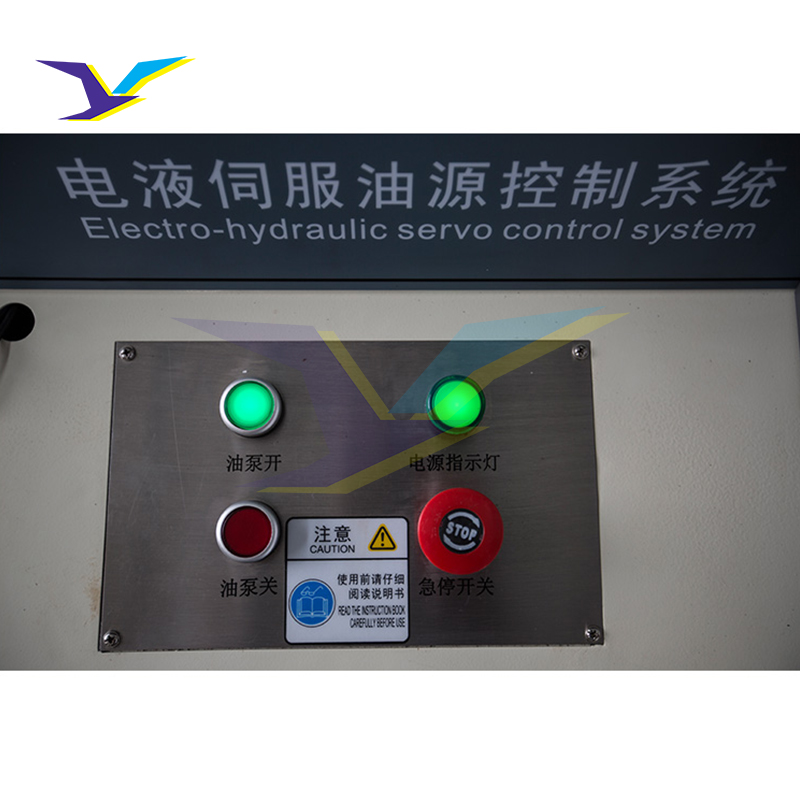

| Control mode | loading process manual control,computer automatic data dealing | ||||||||||
| Max. Load | 100KN | 300KN | 600KN | 1000KN | 2000KN | ||||||
| Tension test space | 650mm | 750mm | |||||||||
| Compression Test Space | 500mm | 600mm | |||||||||
| Round specimen clamping diameter (mm) | Φ4-Φ21 | Φ10-Φ32 | Φ13-Φ40 | Φ13-Φ50 | Φ15-Φ70 | ||||||
| Flat specimen clamping thickness (mm) | 0-15mm | 0-30mm | 0-60mm | ||||||||
| Flat specimen clamping width | 70mm | 75mm | 85mm | ||||||||
| Compression plate size | φ160mm/φ240mm | Φ240mm | |||||||||

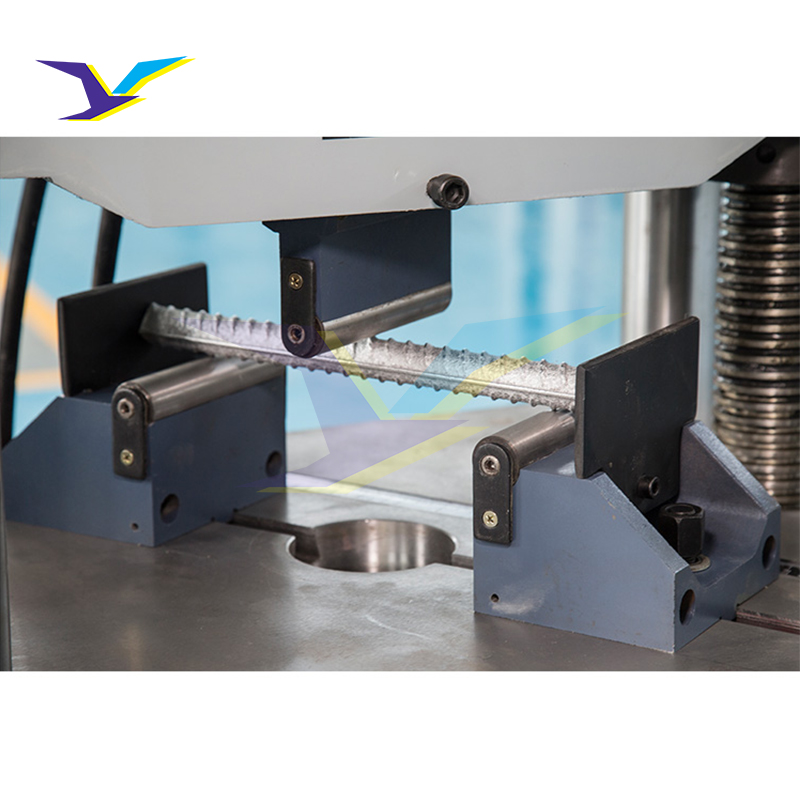

| Bending roller distance | 450mm | ||||||||||
| Width of bending rollers | 120mm | 160mm | |||||||||
| Load accuracy | ≤±1% or ≤± 0.5% | ||||||||||
| Load range | 2%-100%of Full Scale or 0.4%-100% of Full Scale | ||||||||||
| Load resolution | 1/300000 of? Full Scale | ||||||||||
| Deformation Measurement Range | 2%~100% of? Full Scale | ||||||||||
| Deformation accuracy | ≤±1% or ± 0.5% | ||||||||||
| Displacement resolution | 0.01mm | ||||||||||
| Displacement accuracy | ≤±0.5% | ||||||||||
| Piston stroke | 250mm | ||||||||||
| Lifting speed of mobile beams | 150mm/min | ||||||||||
| Clamping method | Hydraulic clamp | ||||||||||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | ||||||||||
?
?
?
