Run your machine easily with an easy-to-use high-definition true color 7" LCD touchscreen panel. Each MBC Series includes a computer control panel that stores 20 million pins. With the 7S panel, you can upload and edit design settings directly on the panel and create custom fonts.

Machine Specs

?Head:2

?Needles:15

?Maximum speed in stitches per minute:1000

?Capacity:20 million stitches or 200 designs Memory Capacity

?Display screen:High-Definition True-Color 7" LCD Touch Screen

?Embroidery range：400*450mm

?Embroidery Accessories：Hoops,hat hoops,flat embroidery frame

?Function：hats, clothes, shoes

?Embroidery frame range：

? Embroidery frame (extra large) 290mm (H) x 290mm (W)
? Embroidery frame (medium) 210mm (H) x 210mm (W)
? Compact frame  160mm (H) x 160mm (W)
? Compact frame 130mm (H) x 130mm (W)
? Compact frame 100mm (H) x 100mm (W)

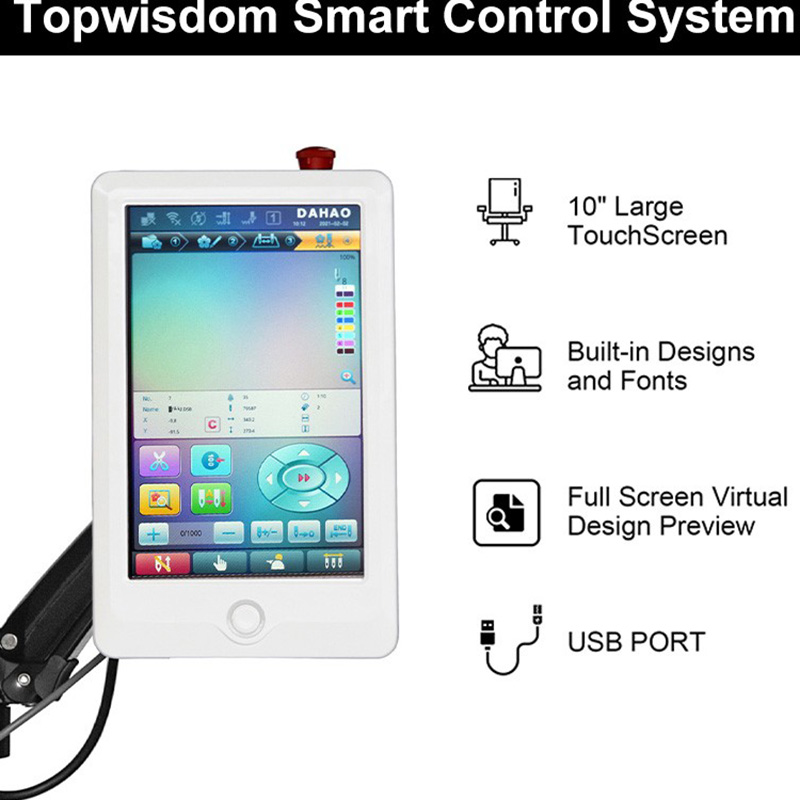

Control panel

?Easy to operate

?Large memory capacity: 20 million stitches or 200 designs

?Machine reads multiple design formats such as DST, DSB and more

?Frame offset and frame outlining available for easy appliqué

?High-Definition True-Color 7" LCD Touch Screen

?Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic,Italian,      Czech, Polish and more

?Networkable. USB input or direct transmission from PC via LAN port

?Ergonomic touch screen allows for easy operation with right-hand thumb

?Preset hoop parameters, which are designed to avoid hitting hoop frames

?Automatic color change

?Built-in 172 degree and 196 degree keys for easy machine maintenance

?One-step tracing button on home screen

?Automatic thread trimmer

Size & Weight

?Size:70*60*150cm

?Net weight:350KG

?Gross weight：392KG

Additional features

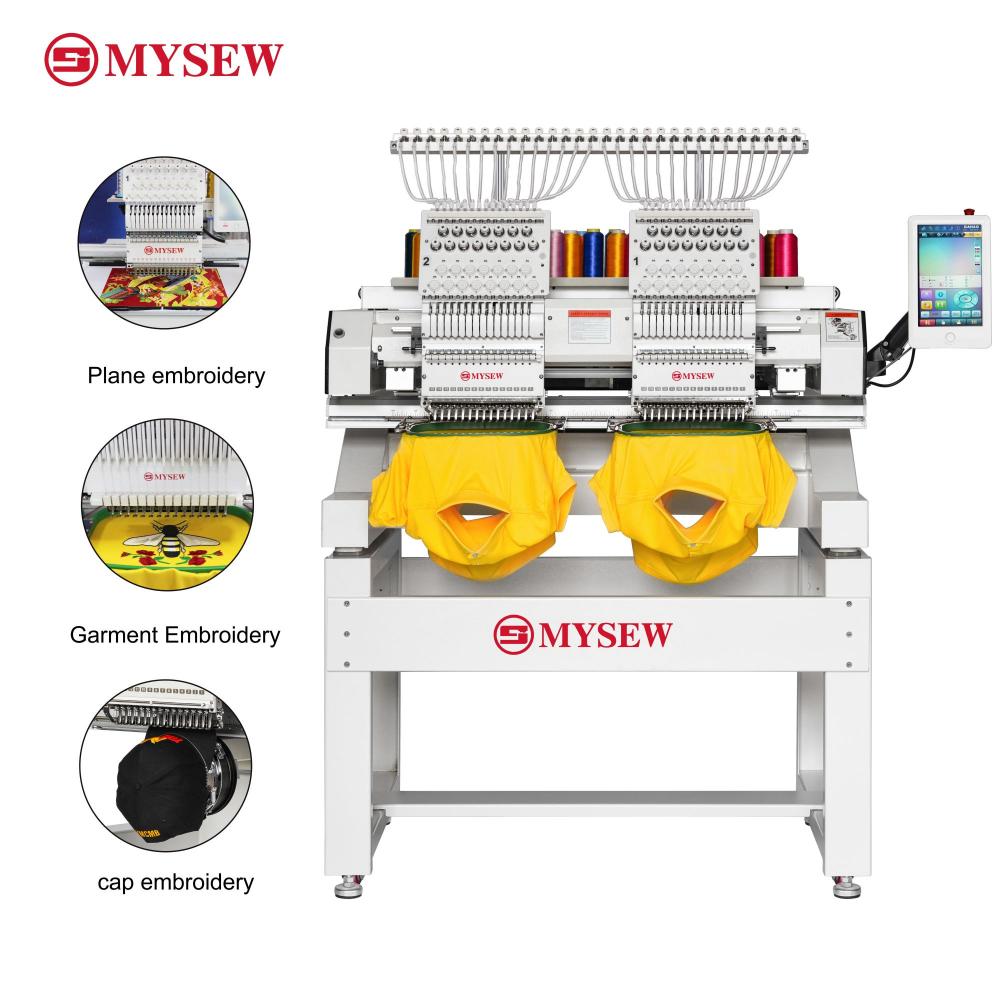

?Suitable for embroidery on flats, caps, finished garments and more!

?Perfect for small and established businesses alike

?2 head models allow for mass production

?Maximum speed: 1200

?Machine reads multiple design formats such as DST, DSB and more

?270° wide angle cap system

?Smaller sewing arm greatly improves the performance of cap embroidery and embroidery on small items

?Heavy duty steel stand with wheels to ensure both stability and mobility

?Multiple hoop sizes for a variety of embroidery needs

?Wide overhead arm system for easy embroidery on bulky items

?Automatic thread trimmer

?External 100° button and trimming button

?Reinforced upper thread clamp to ensure stable trimming

?Thread break detection

?Networkable. USB input or direct transmission from PC via LAN port

?Design transfer from Chroma software to 7S panel with ethernet cable

?Easily add appliqué, sequin, boring or cording

?Frame offset and frame outlining available for easy appliqué

?Automatic memory retention

?One-step tracing button on home screen

?Adjustable control panel positioning for better visibility and comfort

?Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance

?Recessed USB port to protect USB flash drive

?Emergency stop button

?Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic,Italian,   Czech, Polish and more

?Servo motor 150W – lowest power consumption in the industry!

?Built-in universal power supply, 110V/60Hz and 220V/50Hz self-adaptable worldwide

?DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration

?Compatible with optional laser tracing device

?Double LED lights for a wider field of view

?Front LED lamp provides better visibility and protection for eyes against strong light during threading

?Environmentally friendly packaging

?Perfect for mass production of patches

?Slim machine width allows for easy entry through standard sized doors

You’ll get peace of mind with a 5-year limited warranty

Keep your machine covered for the first 5 years with our included warranty. You can enjoy peace of mind knowing your business is backed by the industry's best support and warranty.
