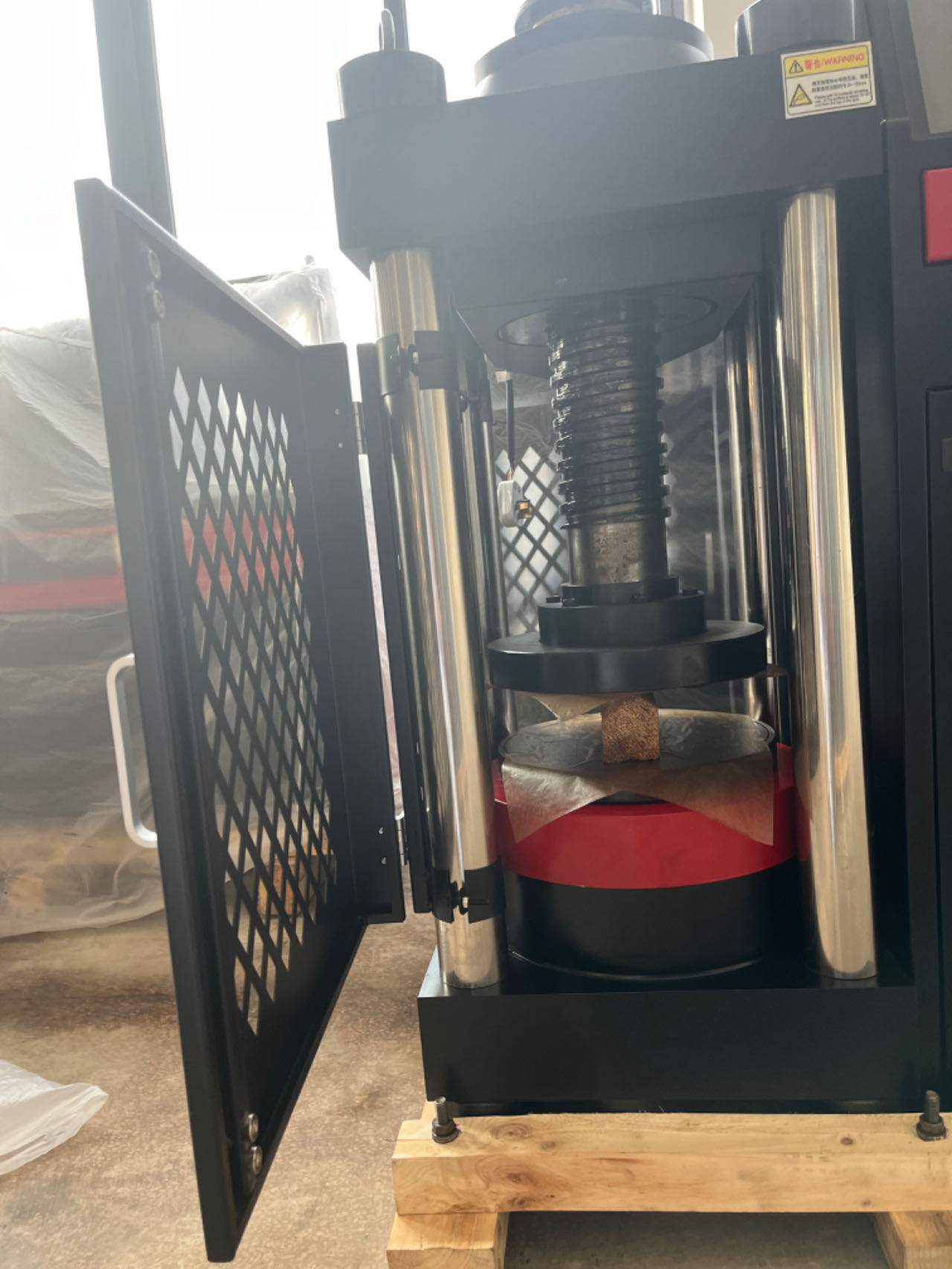

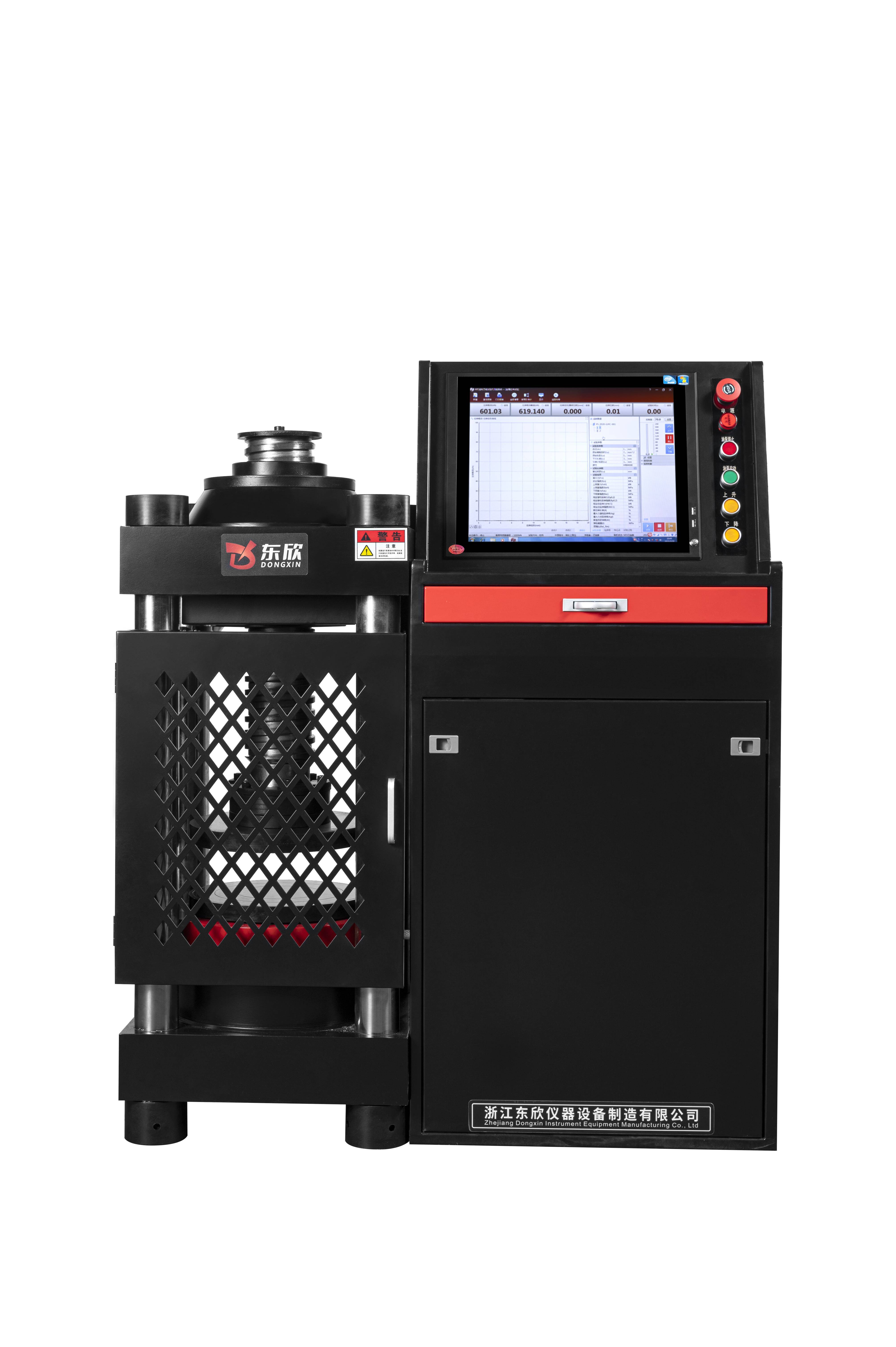

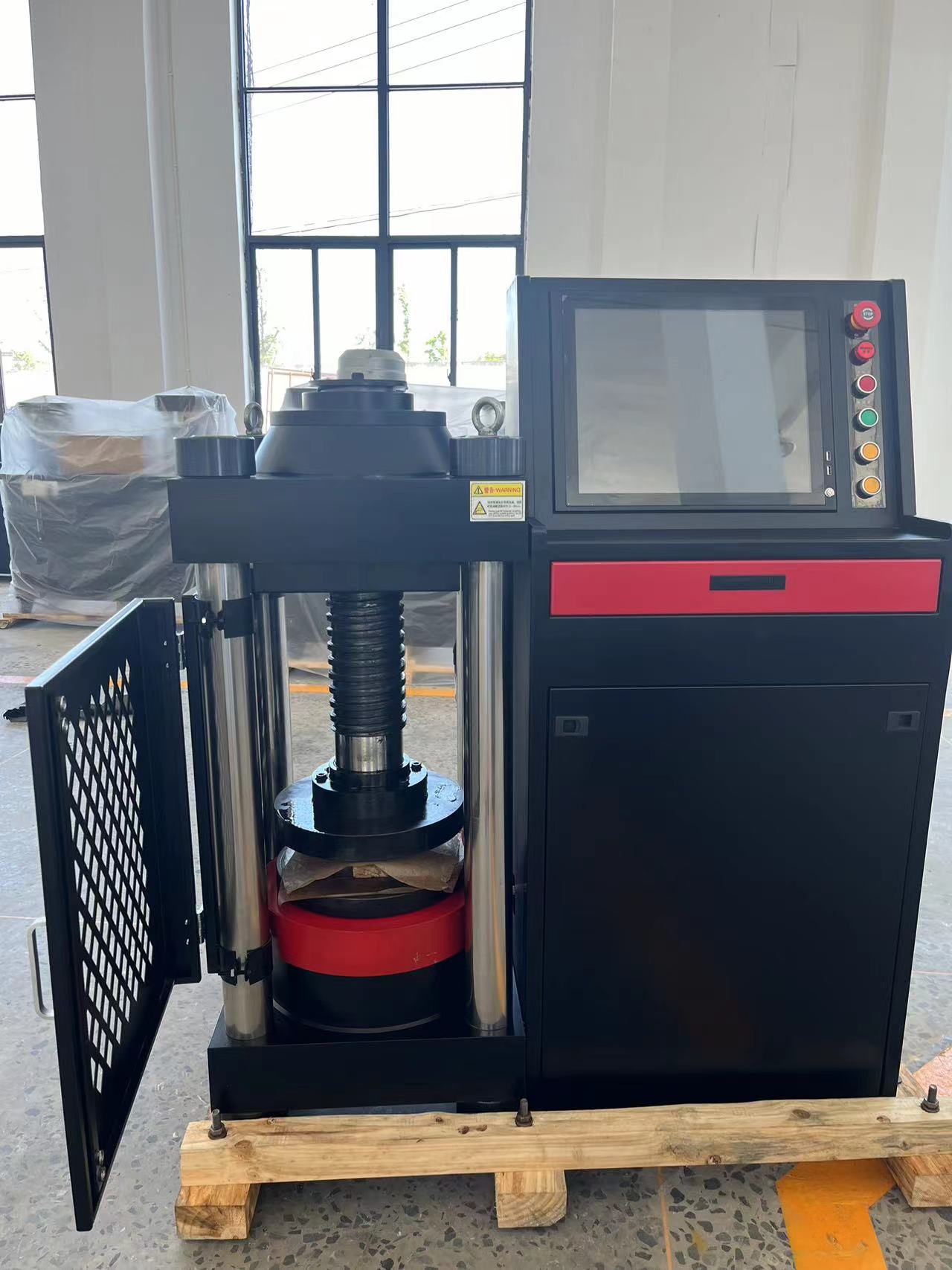

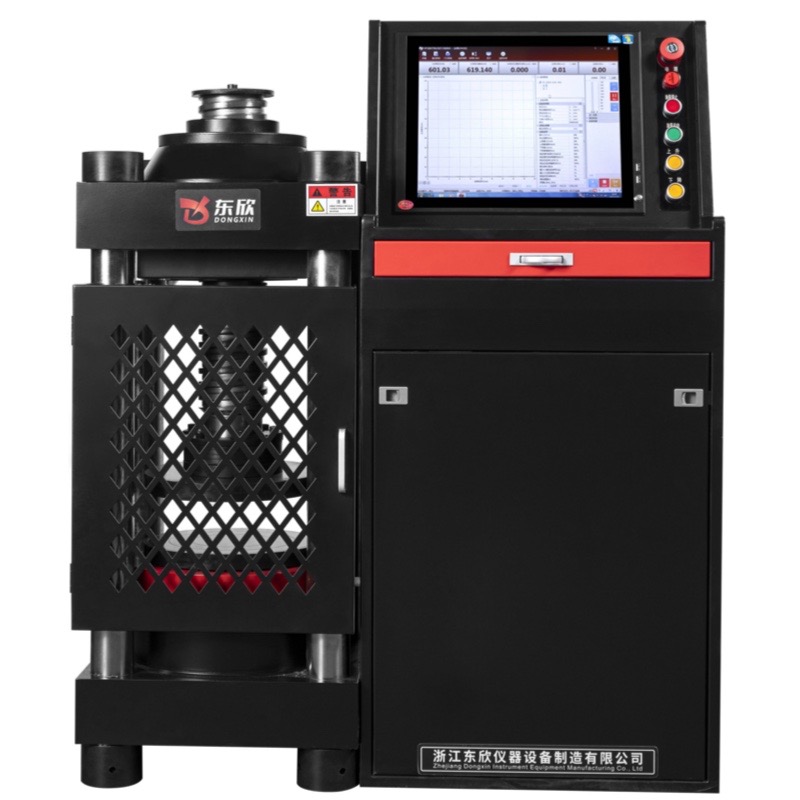

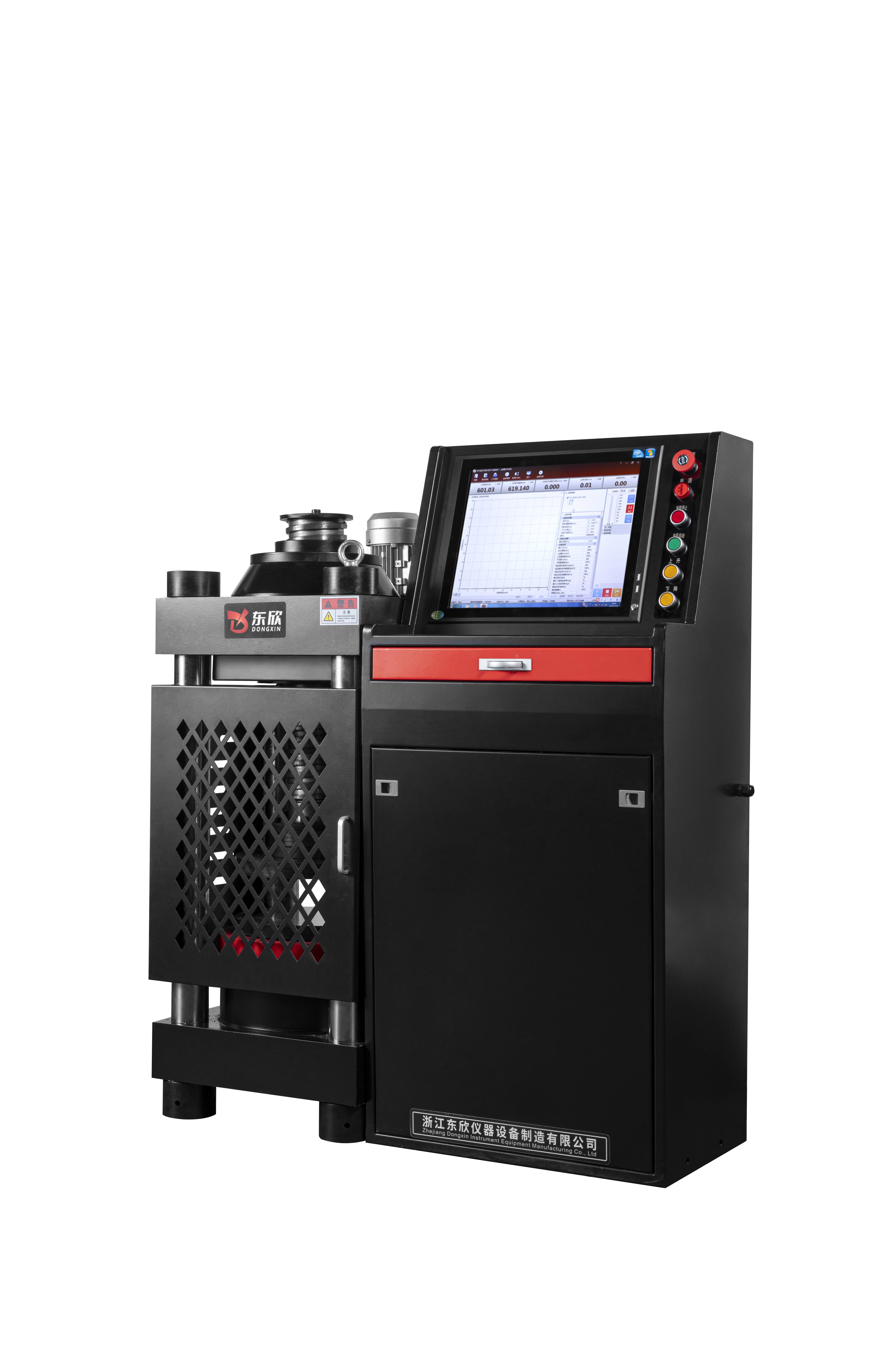

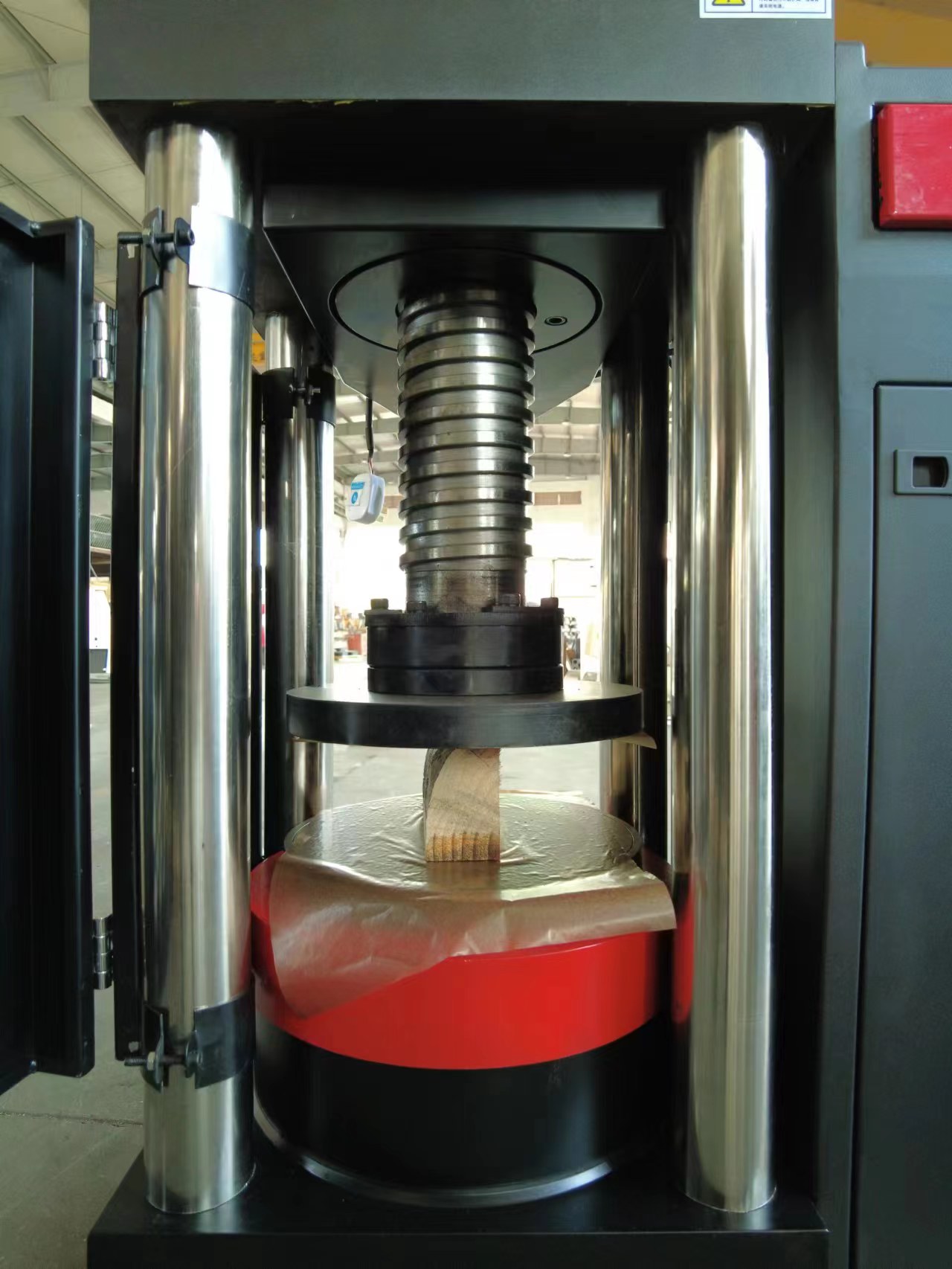

Concrete Compression Testing Machine - Compressive Strength Testing Price
$4500.00
≥1 set
$4300.00
≥5 set
$4100.00
≥20 set
use:
- Auto Testing Machine
- Plastic Testing Machine
- Compression Testing Machine
- Strength Testing Machine
- Cement Testing Machine
- Torsion Tester
- Bending Testing Machine
Basic Info
| Warranty | 1 Years |
|---|---|
| Customized Support | Negotiate |
| Place Of Origin | Zhejiang, China |
| Brand Name | DONGXIN |
| Model Number | YAW-3000B |
Product description
Product Introduction
Product model | YAW-2000B | YAW-3000B |
Maximum Testing Force | 2000kN | 3000kN |
Measure Range of Testing Force | 2%~100%FS | 2%~100%FS |
Relative Accuracy of Value Display of Testing Force | ≤±1% | ≤±1% |

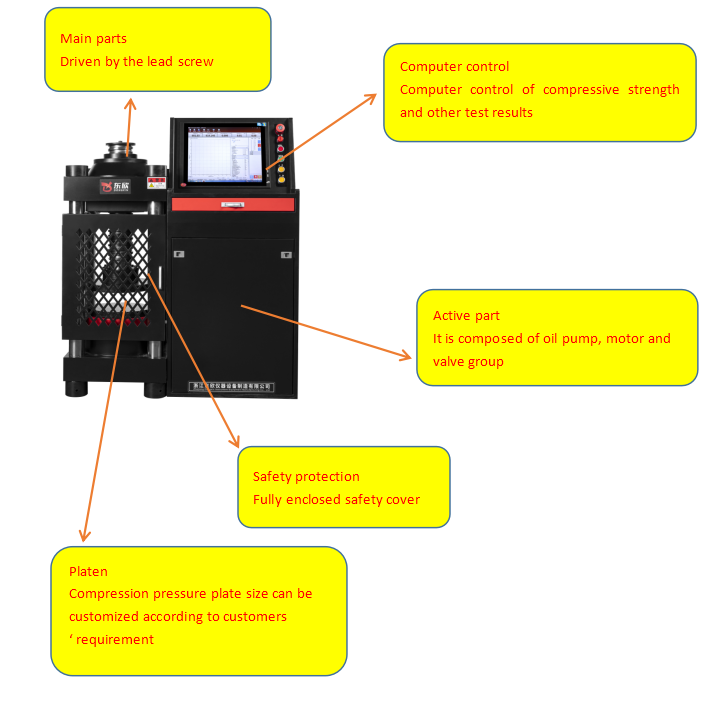

Adjustment method of Lead Screw | Electronic | Electronic |
Top and Bottom Pressure Plate Dimension (mm) | 320*320 | 320*320 |
Max.Space of Top and Bottom Pressure Plate(mm) | 330 | 330 |
Max.Piston Stroke(mm) | 100 | 100 |
Piston Diameter(mm) | Φ310 | Φ310 |
Source Power(kW) | 0.75 | 0.75 |
Overall Dimension(L*W*H)(mm) | 750*460*1300 | 1040*550*1260 |
Weight (kg) | 650kg | 750kg |
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
