Construction machinery roller asphalt mini road roller
$950.00
≥1 Set/Sets
Model:
- Q520
Saw blade diameter:
- 500MM
Engine parameters:
- 13HP
Model:
- OCR30
Static linear pressure:
- 20KN
Engine parameters:
- Diesel Engine
- Gasoline Engine
Basic Info
| Model No. | Standard |
|---|---|
| Applicable industry | Printing Shops, Construction Works |
| Out-of-warranty service | Video Technical Support, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | Canada, Philippines, Brazil, Spain, Thailand, South Korea, Chile, Uae, South Africa, Kazakhstan |
| Showroom location (in which countries are there sample rooms overseas) | Canada, Philippines, Brazil, Peru, Russia, Spain, Thailand, Kenya, Argentina, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia |
| status | New |
Product description

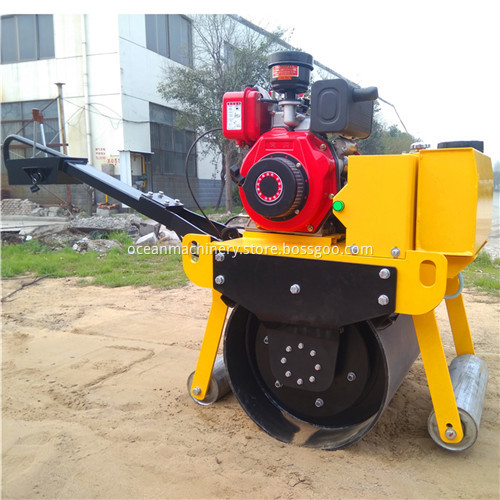

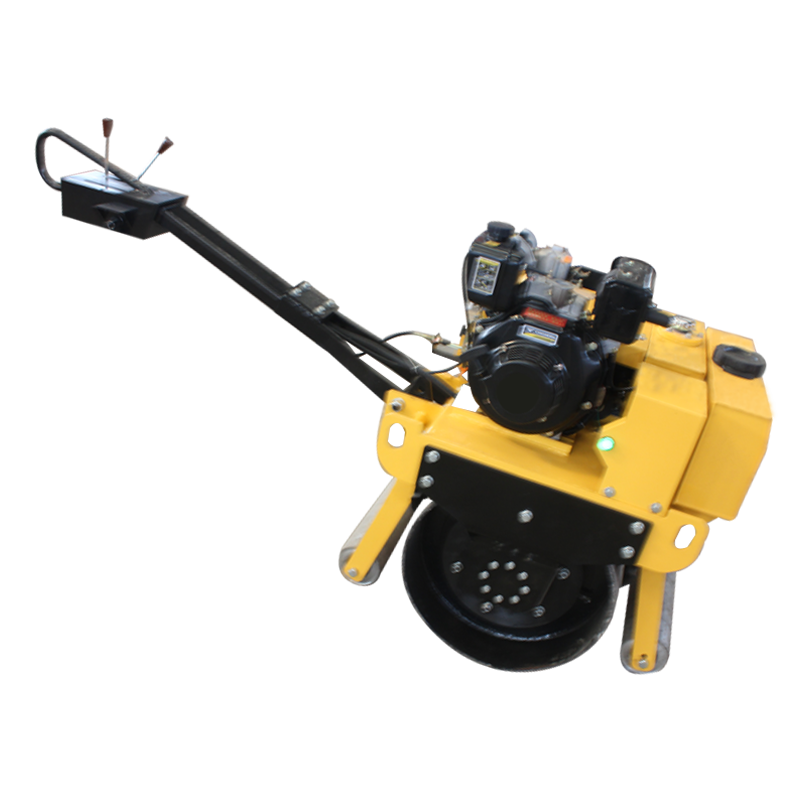

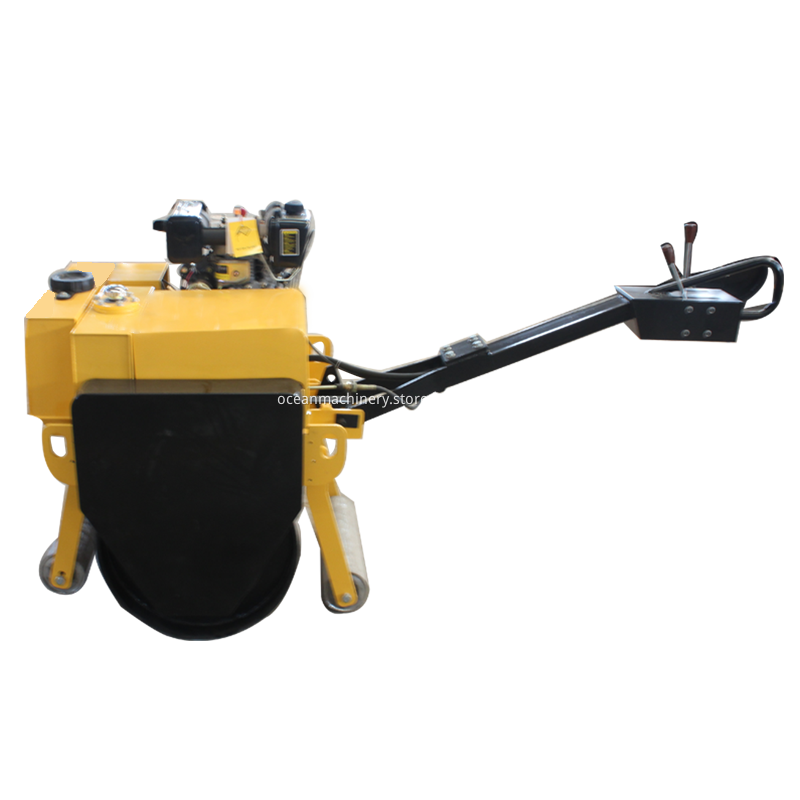

Construction machinery roller asphalt mini road roller
Main Features
1 ) road roller can adopt famous diesel engine, superior performance, esay to start.
2 ) Operating radius is small, can work in a small area, suitable for groove backfill.
3 ) With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.
4 )With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven,
the gradeability stays the same when oil temperature is higher.
5)Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.
Technical Data Unit OCR50
|
Model |
|
OCR50 |
OCR50 |
OCR50S |
||
|
Weights |
||||||
|
Operating weight |
kg |
540 |
540 |
570 |
||
|
Static linear load |
N/cm |
45 |
||||
|
Dimensions |
||||||
|
Working width |
mm |
788 |
||||
|
Total length |
mm |
2480 |
||||
|
Total height with ROPS |
|
1300 |
||||
|
Package dimensions |
mm |
1350*900*1200 |
||||
|
Drum width |
mm |
600 |
||||
|
Drum diameter |
mm |
426 |
||||
|
Start Up |
|
Recoil, electric start |
||||
|
Drive |
||||||
|
Engine manufacturer |
|
HONDA |
CHANGCHAI/CHANGFA/KAMA |
CHANGCHAI |
||
|
Type |
|
GX270 |
CF178 |
R180 |
||
|
Engine type |
|
Gasoline four-stroke |
Diesel four stroke |
Diesel, water cooled ,four stoke |
||
|
Number of cylinders |
|
1 |
1 |
1 |
||
|
Power ISO 14396 |
kW |
6.7 |
4.4 |
5.7 |
||
|
Rating speed |
rpm |
3600 |
3600 |
2600 |
||
|
Driving characteristics |
||||||
|
Speed |
km/h |
0-3.8 |
||||
|
Climbing ability |
% |
30 |
||||
|
Brakes |
||||||
|
Walk form |
|
Two-way hydraulic, chain drive |
||||
|
Exciter system |
||||||
|
Vibration wheel |
|
Front+rear |
||||
|
Frequency |
Hz |
70 |
||||
|
Amplitude |
mm |
0.6 |
||||
|
Centrifugal force |
kN |
20 |
||||
|
Sprinkler system |
||||||
|
Type of sprinkling |
|
Gravity spray |
||||
|
Capacities |
||||||
|
Fuel |
l |
5.9 |
2.7 |
6.5 |
||
|
Lubricant |
L |
1.1 |
1.1 |
2 |
||
|
Hydraulic oil |
L |
18 |
||||
|
Water |
l |
20 |
20 |
--------- |
||
It is mainly used for compacting asphalt surface, gravel, sand and other engineering foundations, and rolling lawn. Small working radius, can work in a small area。
can also work smoothly with smaller wheel loader ,road machinery ,will give customer some engine spare parts for free .
Our all smaller excavator diggers have Sufficient stock ，also excavator spare parts .
We will treat all our customers like family ,welcome your inquiry!
Video

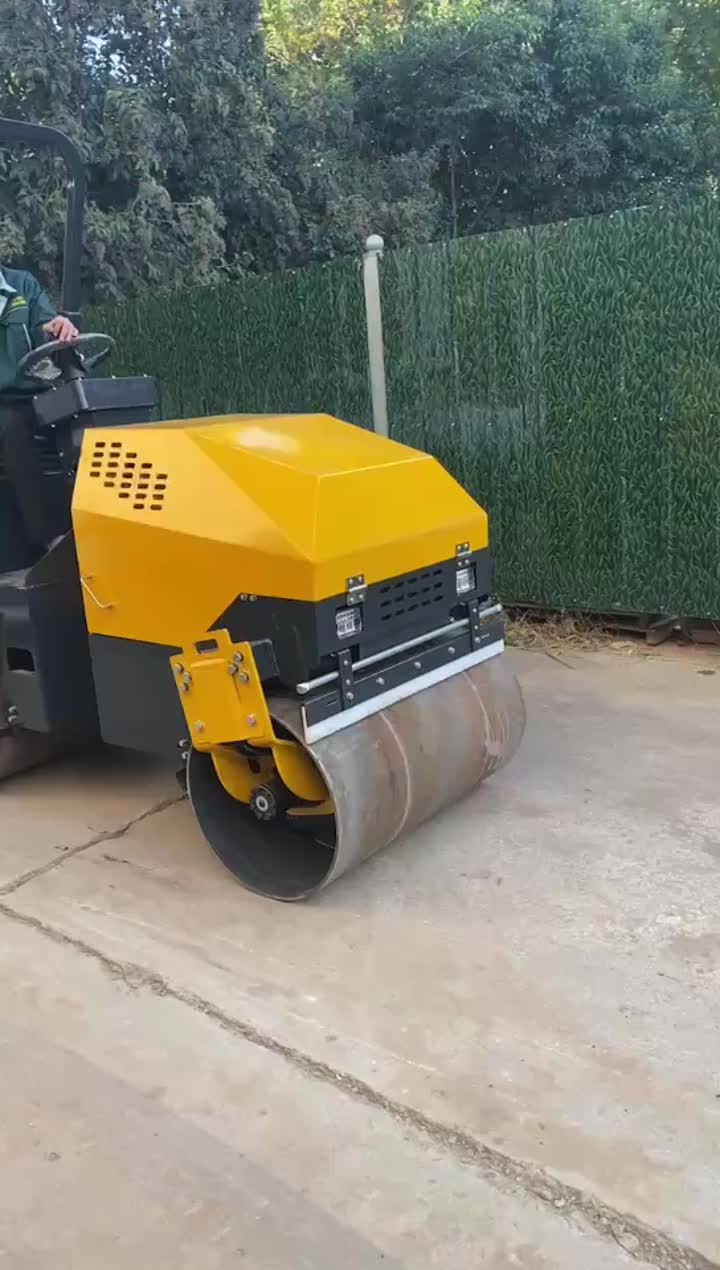

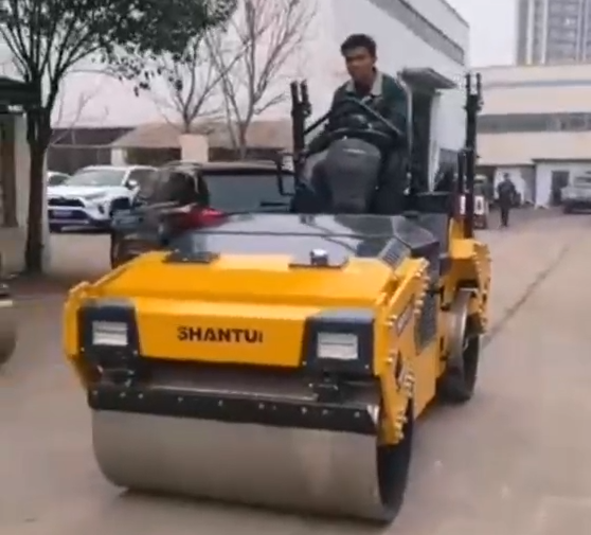

Double cylinder small road roller
Double cylinder small road roller
small road roller (6)
small road roller (1)
Double cylinder small road roller
small road roller (6)
small road roller (1)
