Construction Tools 100m Range Sensor

If you want to work with your laser construction measure tools, using our 707C laser range sensor is easily up to 100m, 120m, 150m.

JRT meter's 150m laser rangefinder sensors support single measurement and continuous measurement function.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 oC~50 oC can be customized.

Technical Datasheet

	Middle Module	Big Module
Product Model:	703A	604B/605B
Accuracy:	±1 mm	±3 mm
Measuring Unit:	mm/in/ft	mm/in/ft
Measuring Range:	0.03-40m/50m/60m	0.03-40m/60m/80m/100m/120m/150m
Measuring Time:	0.3-3s	0.3-3s
Laser Class:	Class Ⅱ	Class Ⅱ
Laser Type:	635nm,<1mw	635nm,<1mw
Size:	45*25*12mm	75*40*18mm
Weight:	About 10g	About 21g
Voltage:	DC2.5~3V	DC2.5~3V
Operating Temperature:	0 C°~40 C°	0 C°~40 C°
Storage Temperature:	-25 C°~60 C°	-25 C°~60 C°

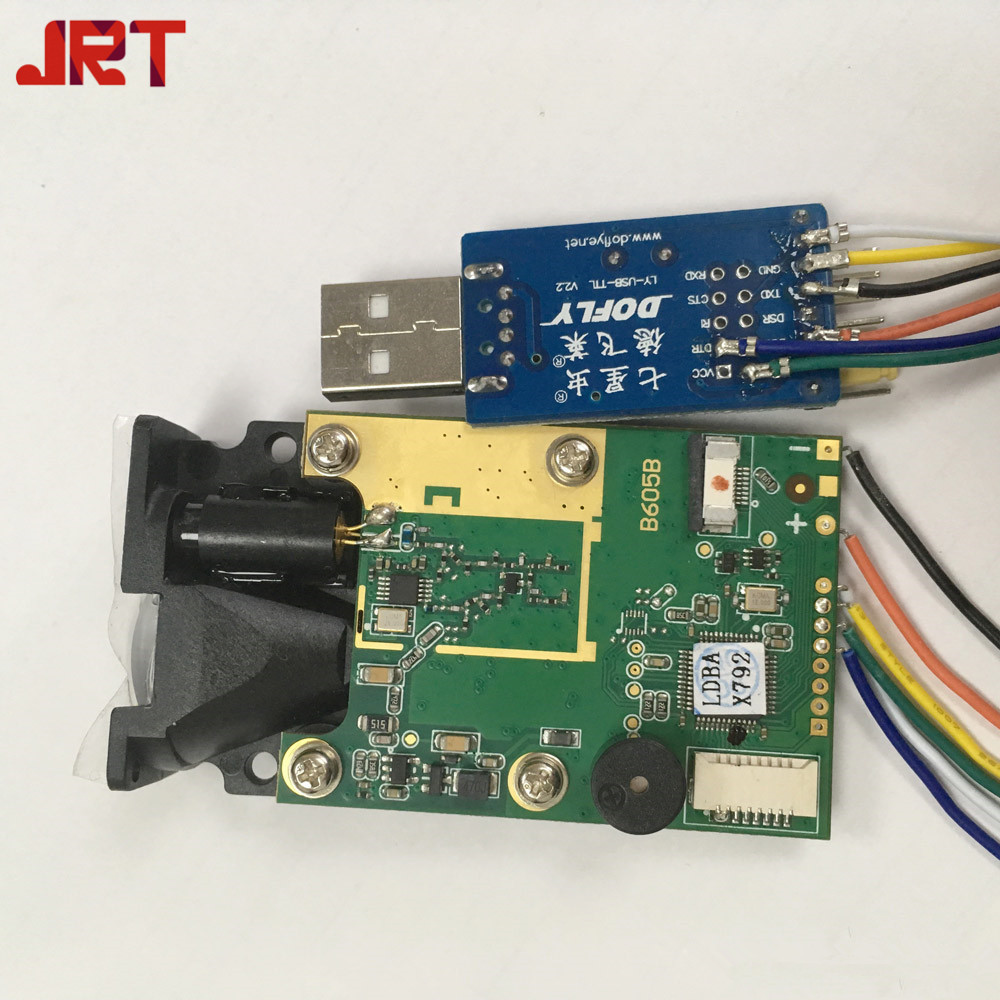

Pictures:



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
