core sample drill
Basic Info
| Model No. | QTZ-4 |
|---|---|
| Brand Name | HuaxiaMaster |
| Usage | Ore |
| Power Type | Diesel |
| Type | Core Drilling Rig |
| Condition | New |
| Drilling Diameter | 54-110mm |
Product description

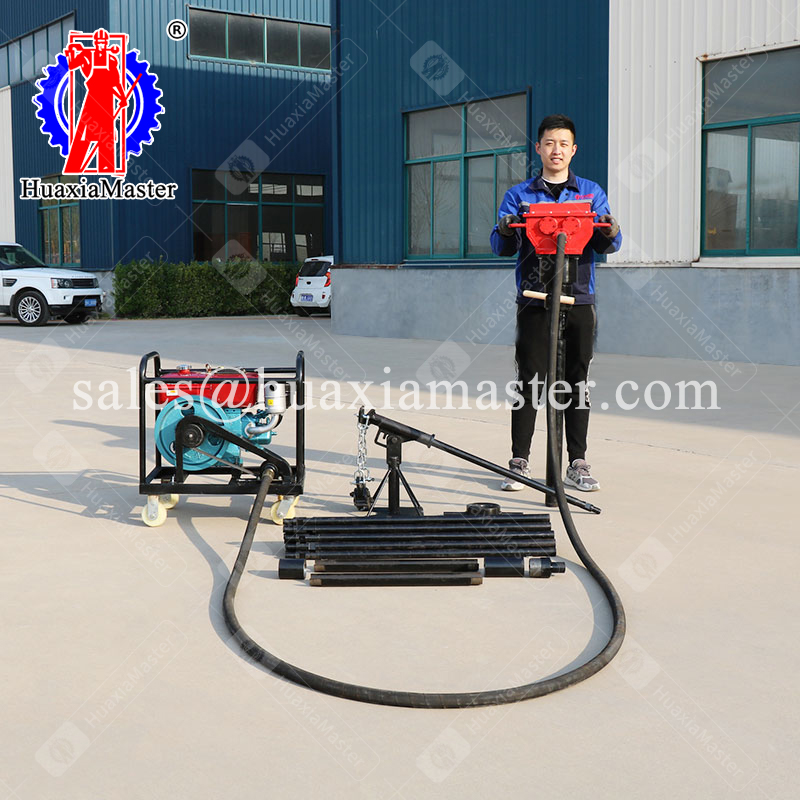

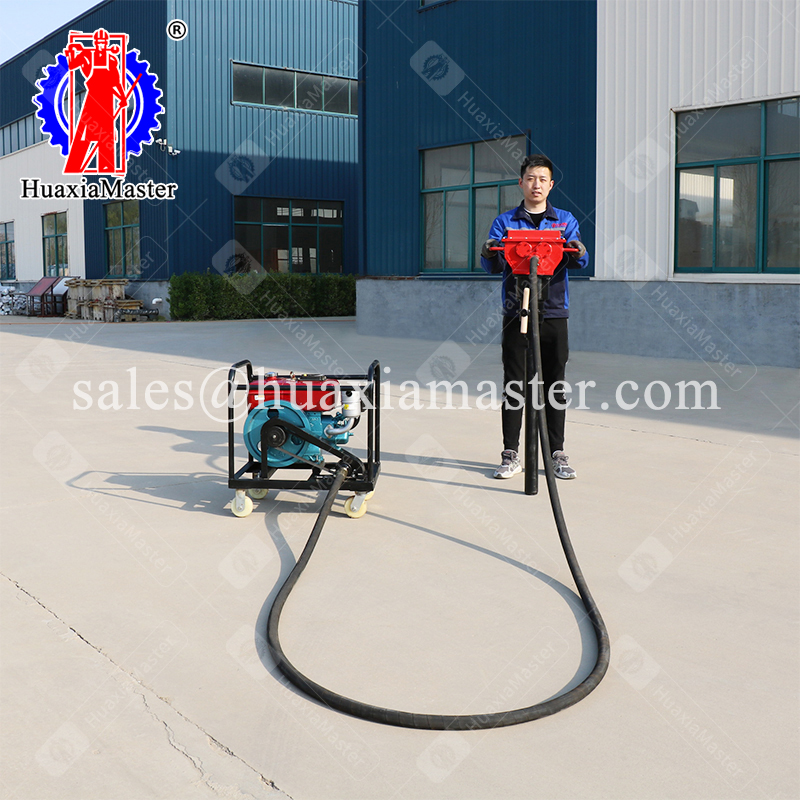

QTZ-4 Diesel engine portable soil sampling drilling rig
1.Brief introduction of QTZ-4 Diesel engine portable soil sampling drilling rig
QTZ-4 diesel engine portable soil sampling drilling rig is a special soil sampling drilling rig that developed according to the actual needs of large depth soil sampling with small machine. The new QTZ-4 soil drilling rig applies the vibration shock theory with the advantages of large energy, small size, light weight, simple structure, simple operation, and two people can carry out sampling operations.
2.Parameters of QTZ-4 Diesel engine portable soil sampling drilling rig
|
QTZ-4 Diesel engine portable soil sampling drilling rig |
||
|
Diesel engine |
Model |
R175B |
|
Type |
Horizontal, single-cylinder, four-stroke,water-cooled |
|
|
Power |
4.85kW |
|
|
Max.impact energy |
110.46N.m |
|
|
Excitation force amplitude |
1041.8-4167.2N |
|
|
Exciter amplitude |
14.1- 40mm |
|
|
Flexible shaft length |
5m |
|
|
Coring depth |
20m-25m |
|
|
Weight of exciter |
35kg |
|
3.Configuration list of QTZ-4 Diesel engine portable soil sampling drilling rig
|
Name |
Model |
Unit |
Quantity |
|
Exciter |
Diesel engine |
set |
1 |
|
Energy transmission flexible shaft |
4m/pc |
pc |
1 |
|
diesel engine |
R175B |
set |
1 |
|
Cap |
Φ120→φ50 |
pc |
1 |
|
Pad |
Φ50*125mm |
pc |
1 |
|
Square buckle takes over |
Φ34*170mm |
pc |
20 |
|
Square buckle drill pipe |
Φ34*910mm |
pc |
20 |
|
Head |
Φ54/34 |
pc |
1 |
|
Coupling |
Φ54*140mm |
pc |
1 |
|
Folio |
Φ54*600mm |
pc |
1 |
|
Inner tube boots |
Φ54*90mm |
pc |
1 |
|
Outer blade boots |
Φ54*90mm |
pc |
1 |
|
Head |
Φ73/34 |
pc |
1 |
|
Coupling |
Φ73*140mm |
pc |
1 |
|
Folio |
Φ73*600mm |
pc |
1 |
|
Inner tube boots |
Φ73*90mm |
pc |
1 |
|
Outer blade boots |
Φ73*90mm |
pc |
1 |
|
Probe hammer weight |
10KG |
pc |
1 |
|
Square buckle touch probe |
Φ34*98mm |
pc |
1 |
|
Square buckle |
|
pc |
1 |
|
Puller |
Three arm |
set |
1 |
