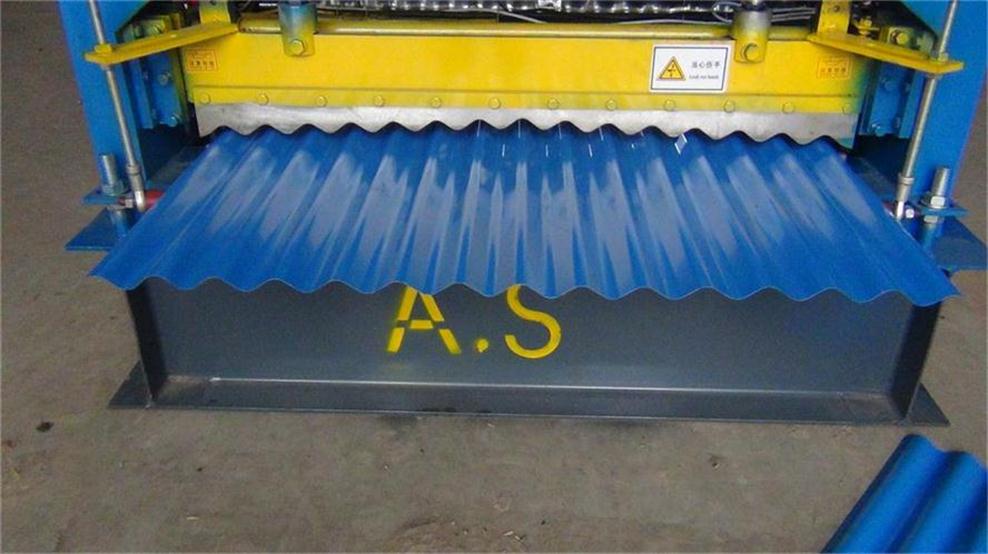

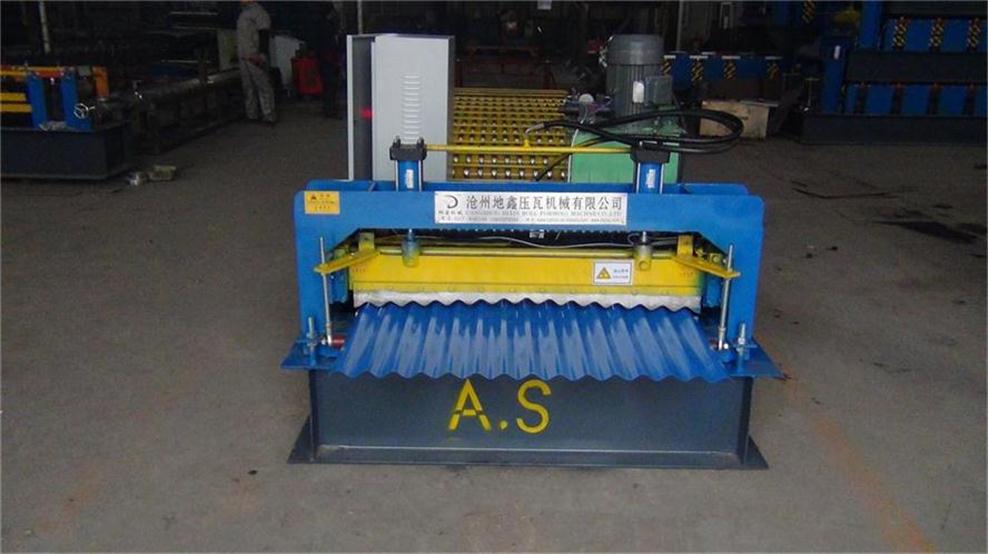

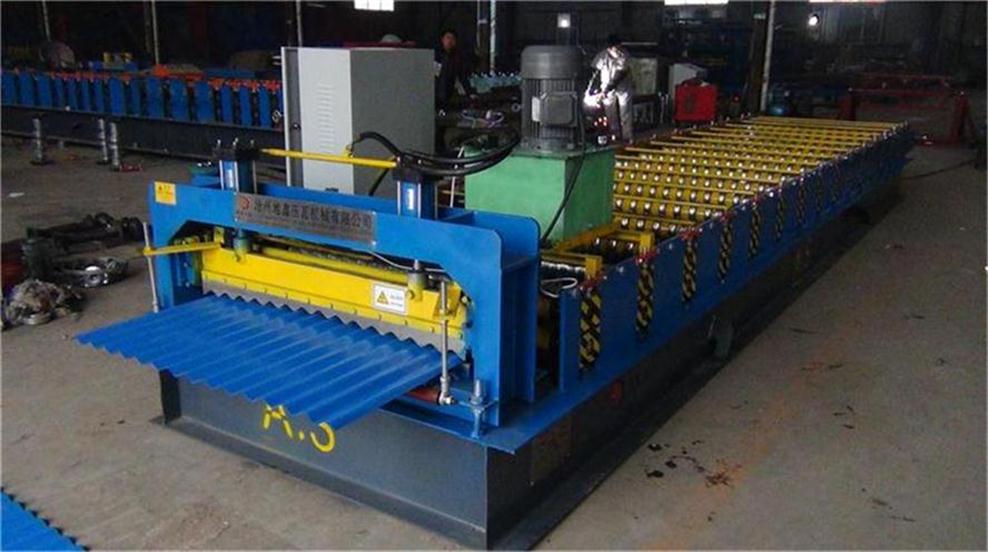

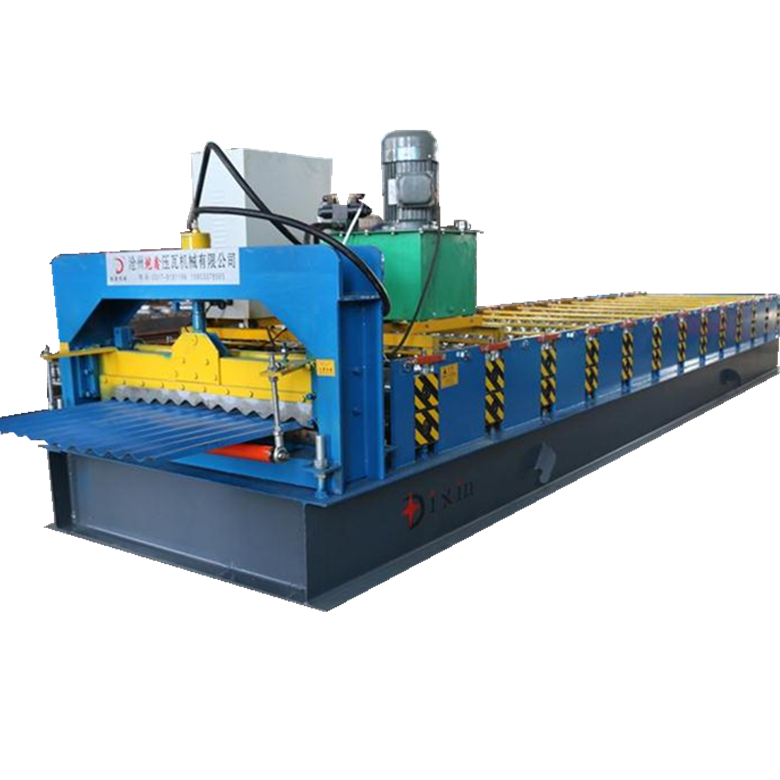

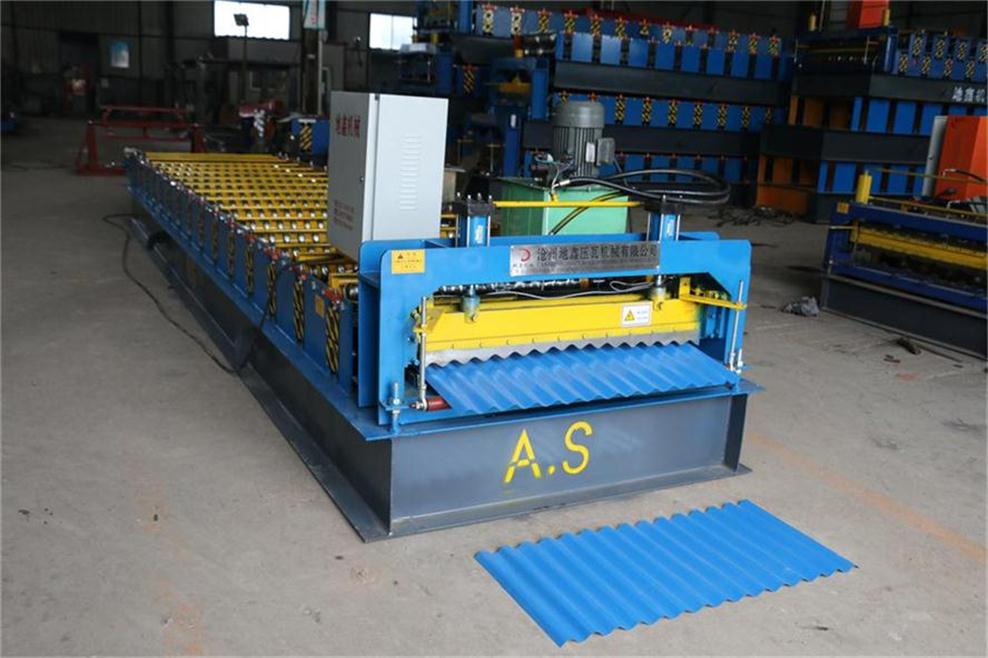

Corrugated Wave Panel Roll Forming Machine

Product Description

The Color steel roll forming machine is mainly composed of decoiler roll forming part ,stamping part ,hydraulic cutting part , computer control system , receiving table.

The equipment adopts the high level automatic control software, the realization of information management system of production in tile press equipment to produce color plate straightening process.

Advantages of Roof Forming Machine
1) With the professional and innovative technology support
2) Equipped with PLC control and touch screen HMI
3) Roller can be changed within same machine
4) Auto length-cut and easy operation
5) Can design the forming machine according to our customers` specific requirement

Machine parameters

Suitable material	Color steel sheet , galvanized steel sheet,
Main motor power	5.5 KW with Cycloidal reducer
Hydraulic station power	4 KW
Forming Stations	16 Stations
Thickness	0.3mm~0.8mm
Shaft Diameter	Φ70mm
Material expand width	914mm-1250mm
Voltage	380V 3phase 50HZ or as your request
Roller Material	High grade 45# Steel,quenched and hard chromed 0.05mm
Shaft Material	High Grade 45# Steel and Polishing
Processing speed	8-12m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 Mov quenched

After-sale service

a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.

Shipping & packing

Packaging Details: main machine is naked and the computer control box is packed by carton box

Delivery Detail:  30days after receiving the deposit

1.We have professional technicians for loading

Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
