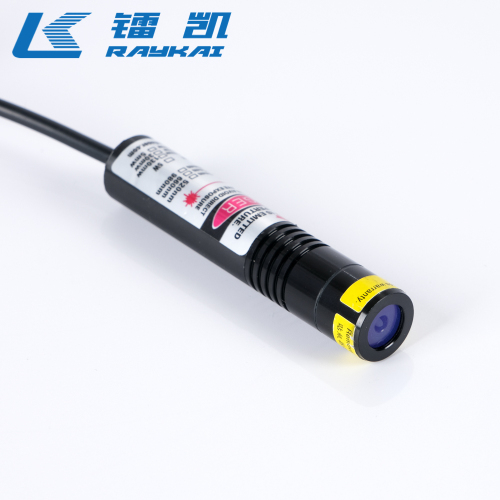

Description:

This laser is commonly used in printing machine factory for positioning. It’s anti-reverse, and anti-interference and is suitable for use within 3 meters.

In the field of positioning and marking, the laser is clearly marking and easy to identify, which greatly improves work efficiency. Reliable quality, stable performance and long service life are the advantages of this model, making it suitable for a variety of work environments.

Specification:

Model	DSC6310LH1680
Beam Shape	Cross
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	10mW
Fan Angle	110°
Focusable	No
Working Distance	2-3m
Power Supply	5V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ16mm*80mm
Weight	57.9g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions

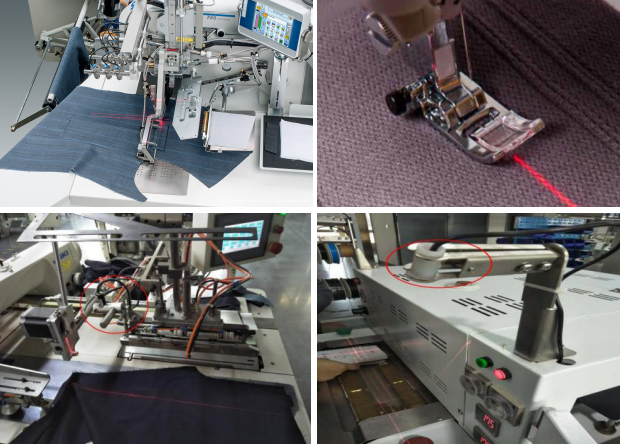

Field Application:

Printing machine marking，Sew Machinery positioning,  and so on...
