Customized Automatic Screw Driver Machine Automatic Robot

Video

1 / 3

Customized Automatic Screw Driver Machine Automatic Robot

Get Latest Price

You might also like

Robot Automatic Pneumatic Screw Locking Machine

1 Set/Sets (MOQ)

6-axis Fully Automatic Dual Screw Locking Machine

1 Set/Sets (MOQ)

Robot Automatic Multi Axis Screw Locking Machine

1 Set/Sets (MOQ)

Six Axis Robot Automatic Screw Locking Machine

1 Set/Sets (MOQ)

Standard Automatic 6 Axis Screw Locking Machine

1 Set/Sets (MOQ)

Customized Robot OEM Automatic Screw Locking Machine

1 Set/Sets (MOQ)

Standard Fully Auto Screw Locking Machine Pneumatic

1 Set/Sets (MOQ)

Coordinate Robotic Full Automatic Screw Fastening Machine

1 Set/Sets (MOQ)

Automatic Robotic Automatic Screw Fasten Machine

1 Set/Sets (MOQ)

Precise Robot Automatic Screw Fiting Machine

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	HWLE
place of origin	China
status	New
Service system	Engineers Available To Service Machinery Overseas
Applicable industry	Manufacturing Plant, Other
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Video factory inspection	Provided
Mechanical test report	Provided
Core component warranty period	1 Year
Core components	Plc, Motor, Pressure Vessel
Function 1	Automatic locking screws, nuts, sleeves, rivets
Function 2	Automatic assembling gaskets, washers
Integrated function	MES+CCD; Torque detection + Sliding teeth + floating lock + leak lock alarm and prompt
Screwdriver	Electric screwdriver; Servo screwdriver
Tightening speed	1.5-2.5s/screw
Stuck rate	Less than 0.1%
Running accuracy	1000mm/sec ±0.02mm/axis
Control method	PLC+HMI Industrial computer +Display
Suitable products	At least 20 groups
Multi-station	4 stations, 6 stations, or more stations

Parameters of Jig (Fixture) Rotation Automatic Locking Screw Machine Company Photos Production Certification RFQ

Product description

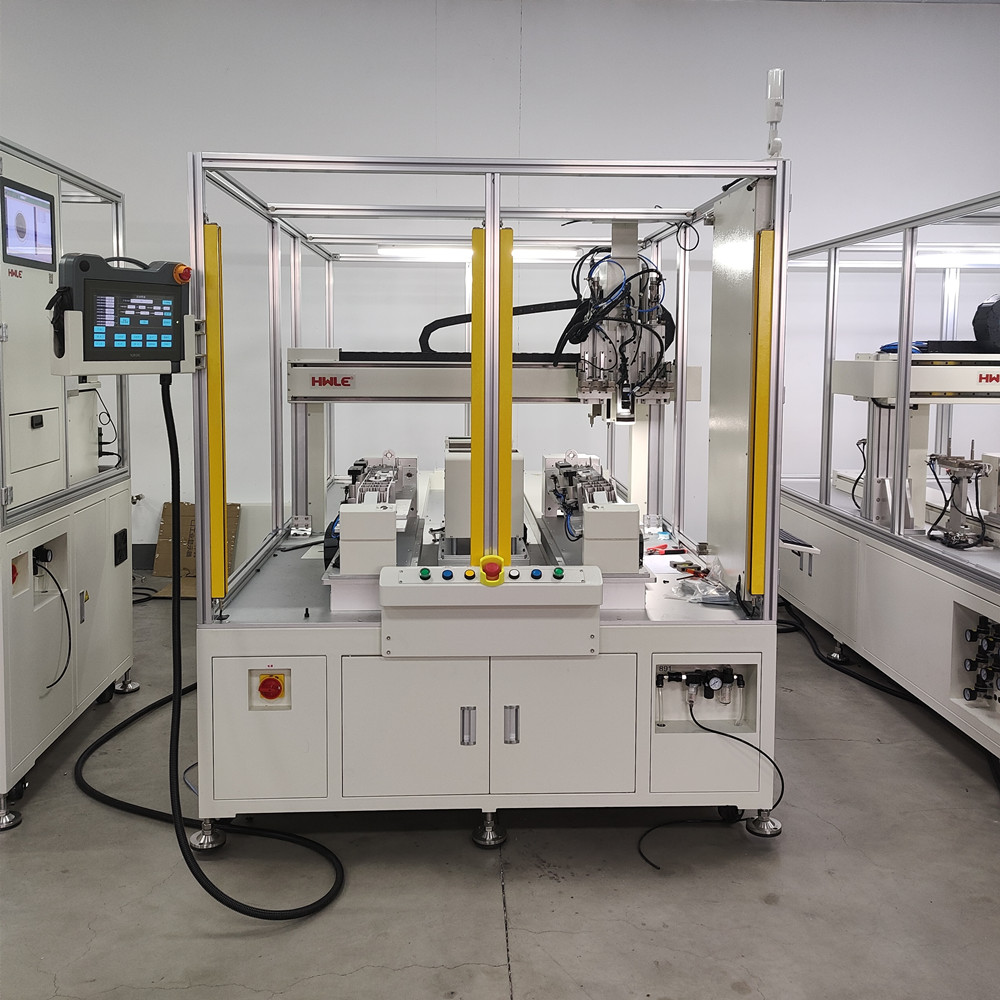

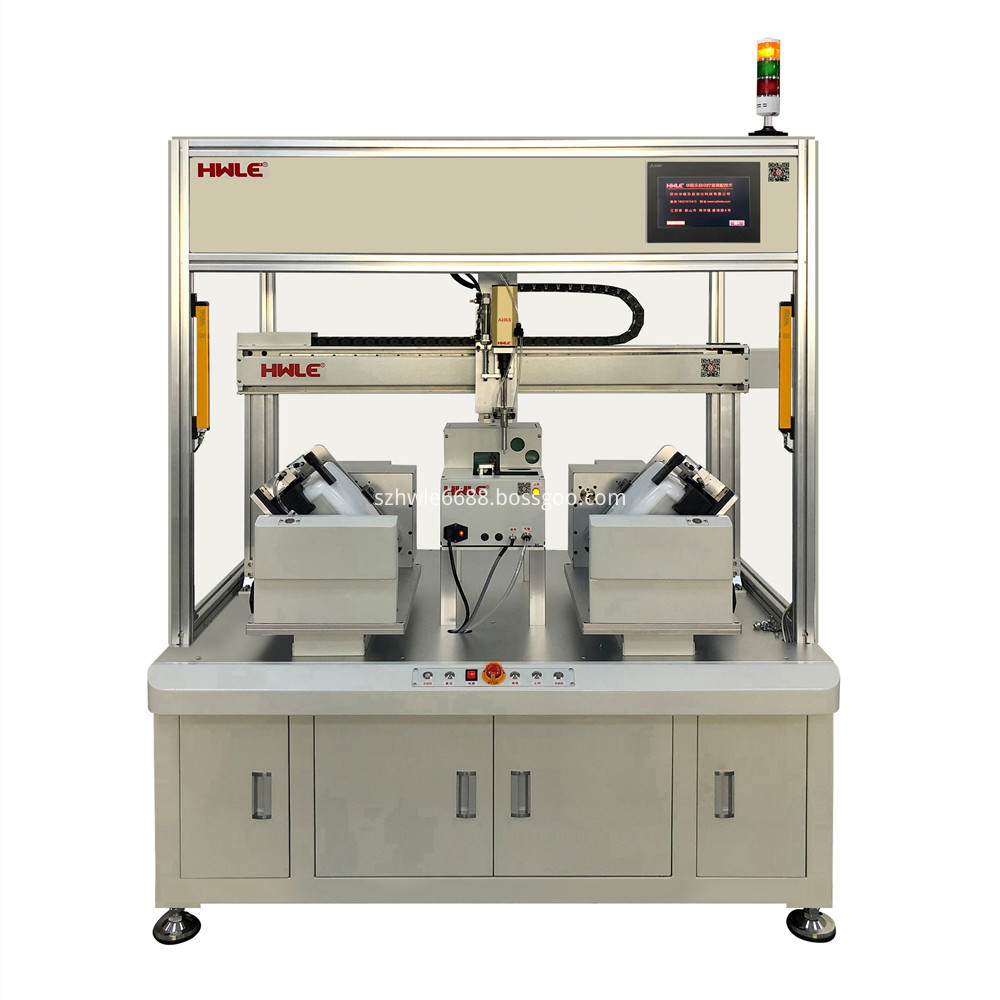

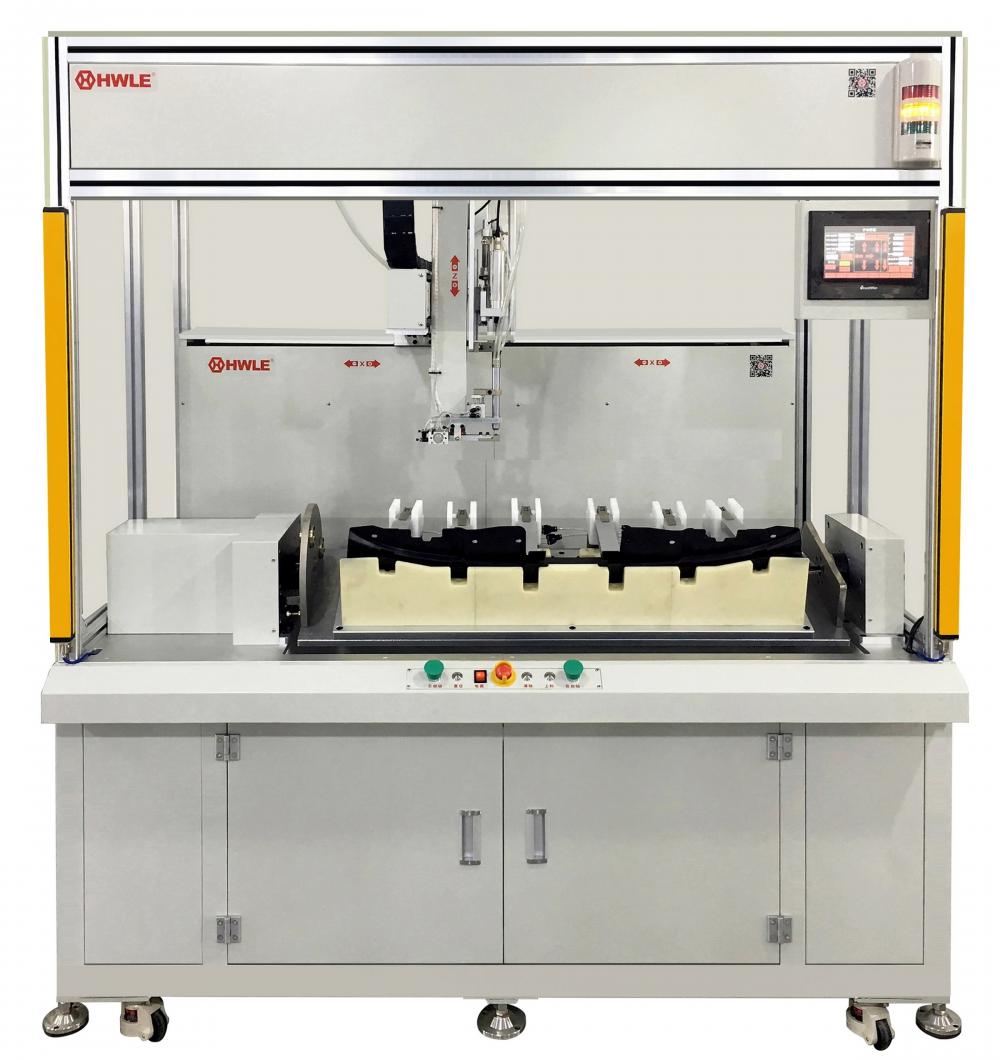

Automatic Locking Screw Machine with Rotated Fixture
The automatic locking screw machine also know as Automatic Screw Tightening Machine, Automatic Screw Fastening Machine, automatic screw feeding and tightening machine, Automatic Screwdriving Machine etc. According to the structure, it is devided into cantilever Automatic Screw Locking Machine, gantry Automatic Screw Machine, robot Automatic Screw Tighten Machine, online screw lcoking machine, Robot Screw Locking Machine etc.
The Features Of Cantilever Fixture Rotated Automatic Locking Screw Machine
1. The cantilever move to tighten, the fixture is fixed when tightening, and it can be installed across the line or fixed.
2. The jig can be rotated at multiple angles longitudinally or laterally, and work with different angles or different orientations.

Parameters of Jig (Fixture) Rotation Automatic Locking Screw Machine

The Parameters Of Automatic Screw Tightening Machines
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gasket

Company Photos

Production Certification

RFQ

1. How do we install the equipment when we receive it? How to provide after-sales service?
1) Before delivery, the equipment has been debugged in our company. Before delivery, we will screw the screws on your sample and
