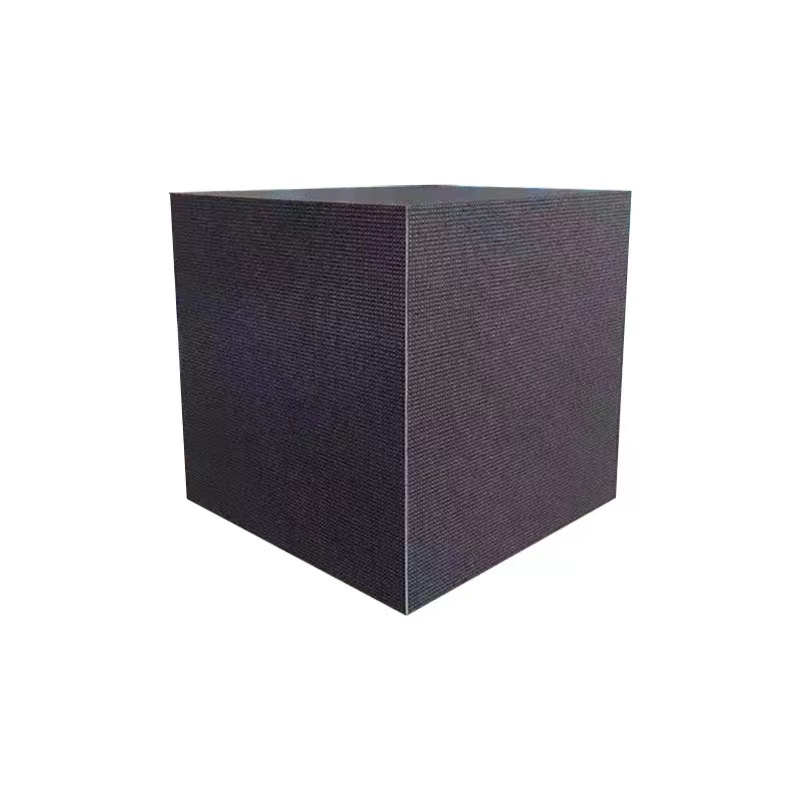

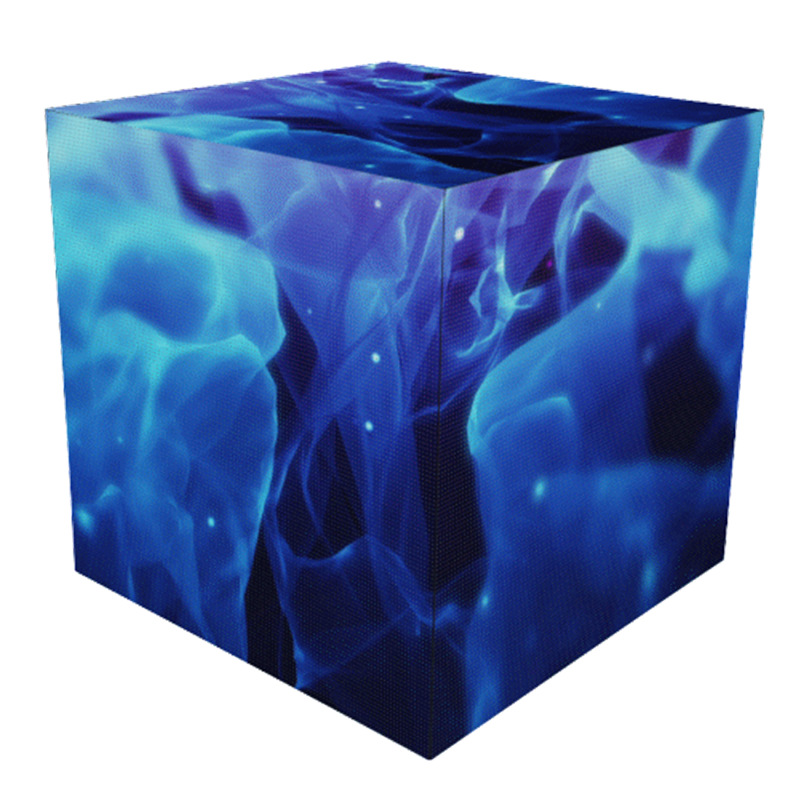

Customized Interactive HD LED Display Cube
$1085.00
≥10 piece
$1035.00
≥21 piece
$985.00
≥51 piece
Options:
- ODM
- OEM
- datasheet
- advertising publish
- retail store
- shopping mall
- welcome display
- self-service business
- exhibition hall
- wayfinding
- airport
- subway
- elevator
- Restaurant & Hotel Supplies
- education
- medical treatment
Basic Info
| Application | Indoor |
|---|---|
| Color | Full Color |
| Panel size | 320mm(W) * 160mm(H) |
| Place Of Origin | Guangdong, China |
| Model Number | P2.5 |
Product description
? ?Item | Indoor P2.5 | Indoor P4 | Indoor P5 | ||||
Module | Panel Dimension | 320mm(W) * 160mm(H) | 320mm(W) * 160mm(H) | 320mm(W) * 160mm(H) | |||
Pixel pitch | 2.5mm | 4mm | 5mm | ||||
Pixel Density | 160000 dot/m2 | 62500 dot/m2 | 40000 dot/m2 | ||||
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | ||||
LED specification | SMD2121 | SMD2121 | SMD3528 / 2121 | ||||
Pixel resolution | 128 dot * 64 dot | 80 dot * 40 dot | 64 dot * 32 dot | ||||
Average power | 30W | 26W | 15W/24W | ||||
Panel weight | 0.39KG | 0.3KG | 0.33KG | ||||
Cabinet | Cabinet size | 640mm*640mm*85mm | 960mm*960mm*85mm | 640mm*640mm*85mm, 960mm*960mm*85mm | |||
Cabinet Resolution | 256 dot * 256 dt | 240 dot * 240 dot | 128 dot * 128 dot, 192 dot*192 dot | ||||
Quantity of panel | 8pcs | 18pcs | 8pcs, 18pcs | ||||
Hub connecting | HUB75-E | HUB75-E | HUB75-E | ||||
Best viewing angle | 140/120 | 140/120 | 140/120 | ||||
Best viewing distance | 2-30M | 4-30M | 5-30M | ||||
Operating temperature | -10C°~45C° | -10C°~45C° | -10C°~45C° | ||||
Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A | ||||
Max power | 780 W/m2 | 700 W/m2 | 750W/m2 | ||||
Average power | 390 W/m2 | 350 W/m2 | 375W/m2 | ||||
Technical Signal Index | Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 | |||
Scan Rate | 1/32S | 1/20S | 1/16S | ||||
Refresh frepuency | 1920-3300 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S | ||||
Display color | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | ||||
Brightness | 800-1000 cd/m2 | 800-1000 cd/m2 | 900-1100 cd/m2 | ||||
Life span | 100000Hours | 100000Hours | 100000Hours | ||||
Control distance | <100M | <100M | <100M | ||||
Operating Humidity | 10-90% | 10-90% | 10-90% | ||||
IP protective index | IP43 | IP43 | IP43 | ||||
Q2:How does your factory do regarding quality control?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?

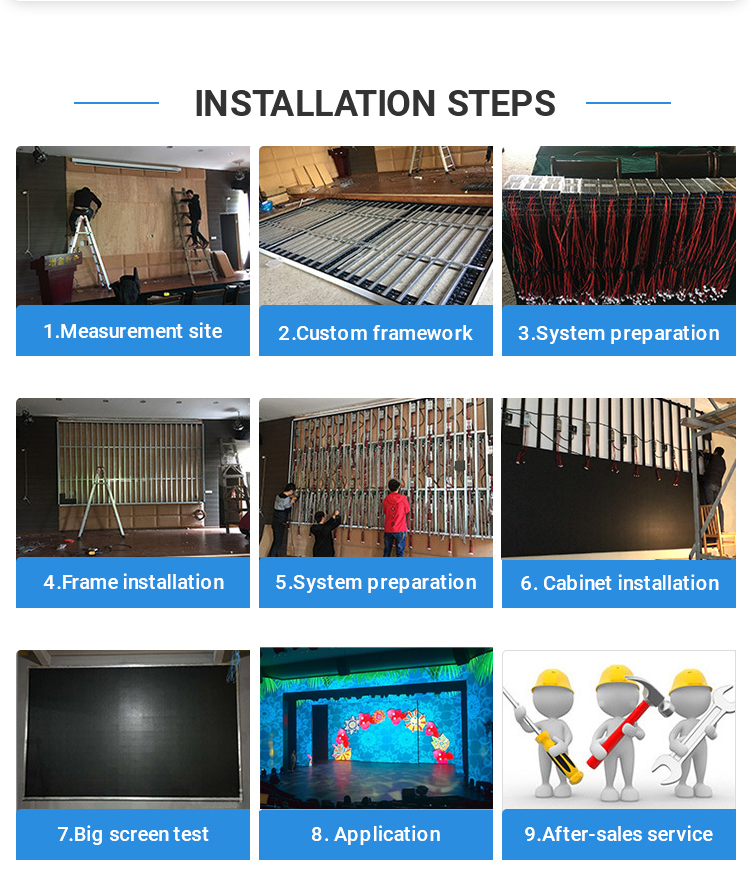

A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
A6:The standard warranty is 1 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
