Customized pattern woven mesh pipe
Basic Info
| Material | PET |
|---|---|
| Working Temperature | -50℃---150℃ |
| Melting Point | 250℃ |
| Flammability | VW-1 |
| Certified | UL、RoHS、REACH |
Product description
As we all know, the mesh number of Braided sleeve is determined by the aperture and wire diameter. At this time, we need to make sure that the wire diameter is increased when the aperture is unchanged, and then we need to use high hardness woven mesh pipe materials to prevent the woven mesh pipe from grinding the mesh in a short time. Quality is always a new topic. The quality of woven mesh pipe is improving with the improvement of metal hose technology. With the development of society, the quality of Pattern braided sleeve is getting more and more attention. With the strengthening of the degree of design and manufacturing of woven mesh pipe, the realization of its new technology, the quality of graphic woven sleeve is getting more and more attention. The design of woven network pipe is an important step to improve the quality of woven network pipe, and many factors need to be considered, including the selection of woven network pipe materials, the usability and safety of PET braided sleeve structure, which should be considered as comprehensive as possible at the beginning of the design.

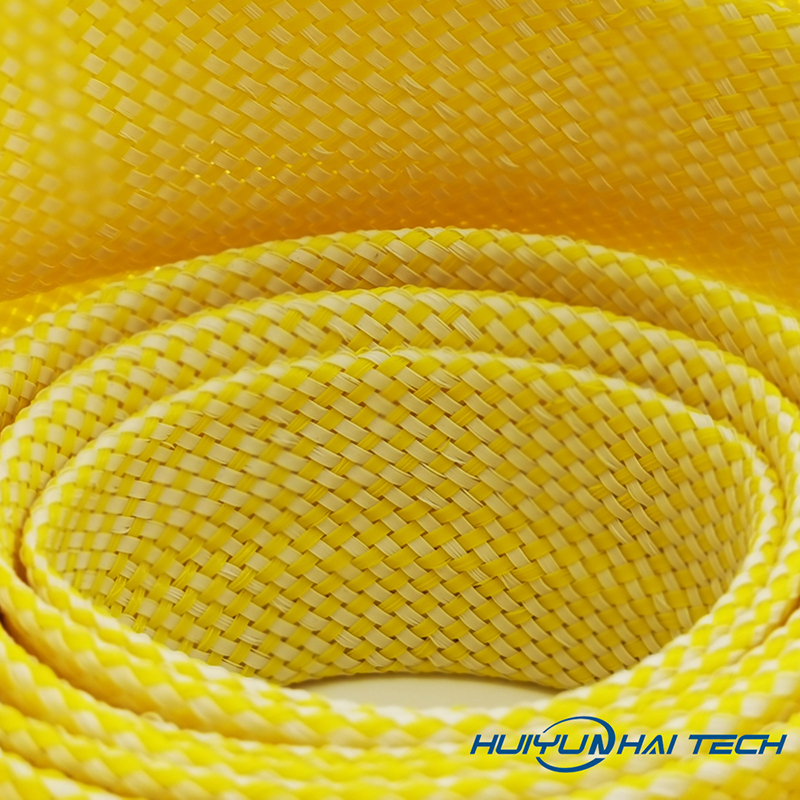

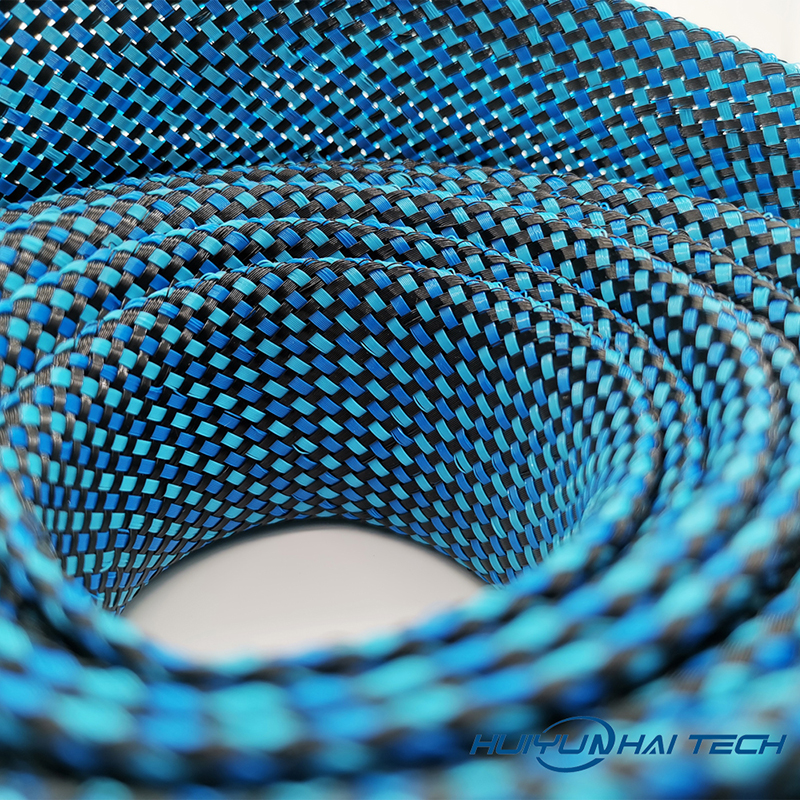

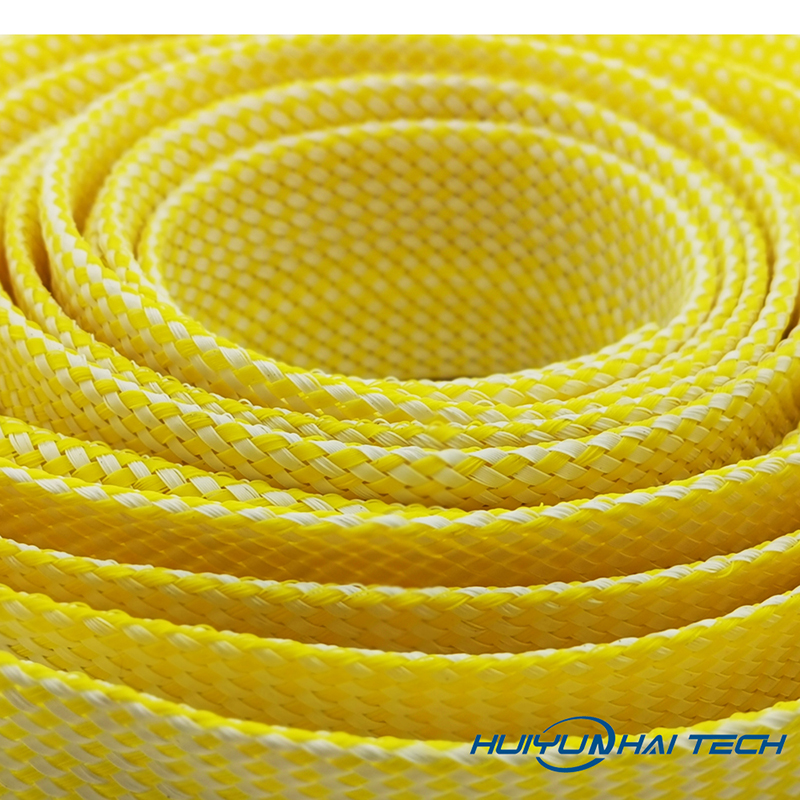

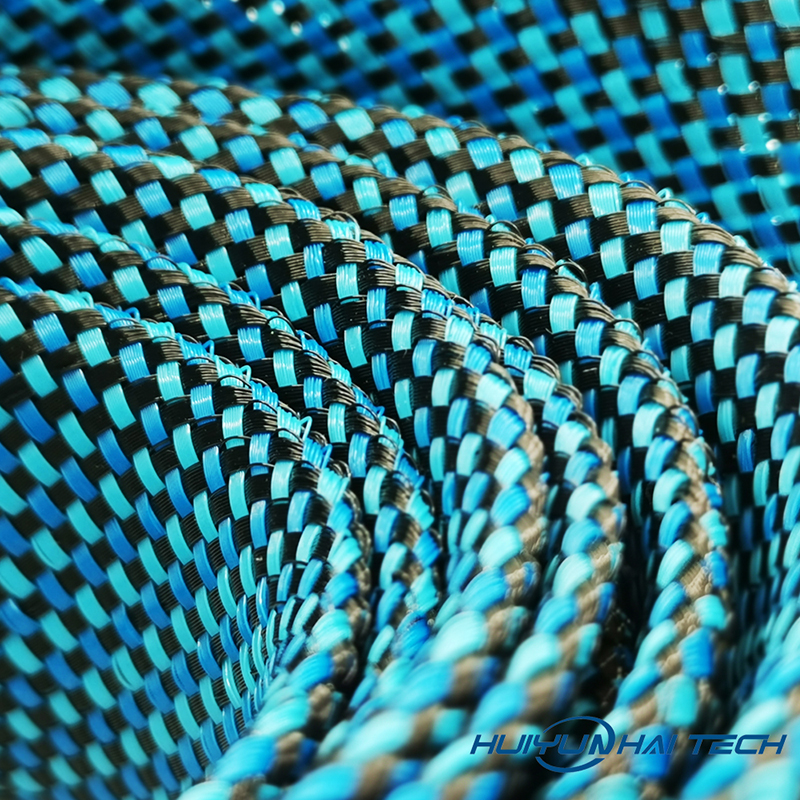

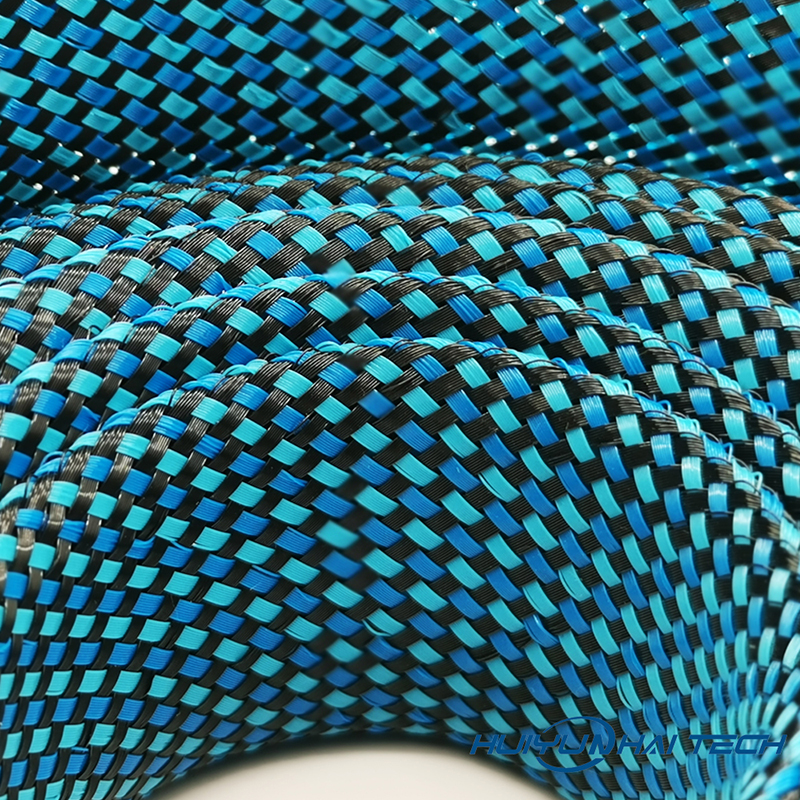

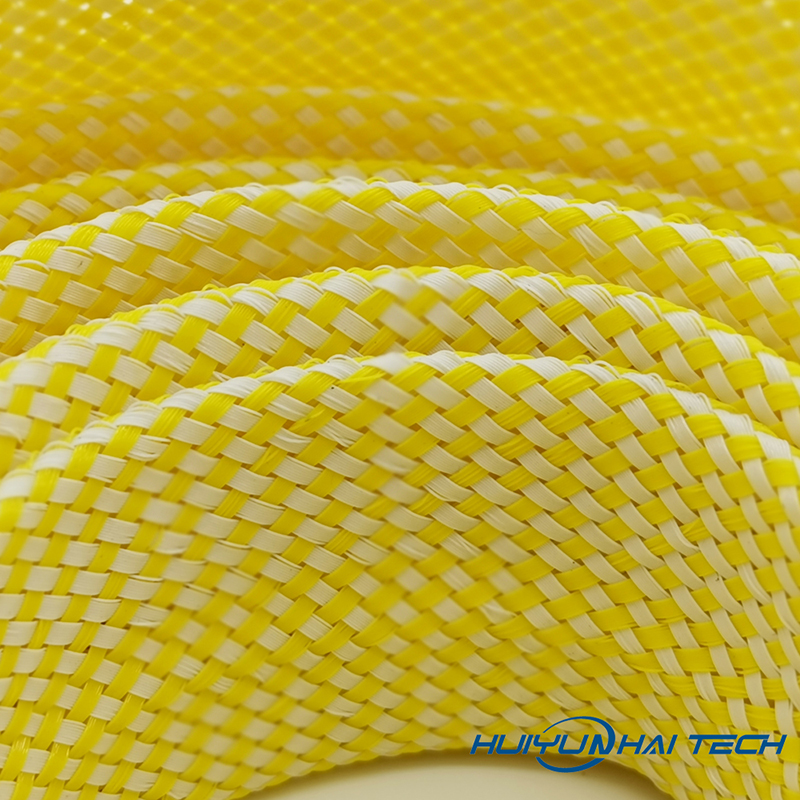

Colorful PET Braided Sleeve
Colorful PET Braided Sleeve is braided with environment-friendly and colorful pet monofilament, which has good scalability, flame retardant, wear resistance, heat insulation and aesthetics. We can braid different patterns and colors according to customer requirements.
Product Drawing
|
Size specification |
||||||
|
Model No.: |
Natural Width（W） |
Radio of expandable |
Packing(L) |
|||
|
|
Inch |
MM |
Min（I） |
Max(O) |
|
|
|
HBS-002 |
1/16″ |
2 |
2 |
4 |
1000m/Roll |
|
|
HBS-003 |
1/8″ |
3 |
3 |
6 |
1000m/Roll |
|
|
HBS-005 |
3/16″ |
5 |
5 |
10 |
1000m/Roll |
|
|
HBS-006 |
1/4″ |
6 |
6 |
12 |
500m/Roll |
|
|
HBS-008 |
5/16″ |
8 |
8 |
16 |
500m/Roll |
|
|
HBS-010 |
3/8″ |
10 |
10 |
20 |
500m/Roll |
|
|
HBS-012 |
1/2″ |
12 |
12 |
24 |
350m/Roll |
|
|
HBS-014 |
9/16″ |
14 |
14 |
28 |
350m/Roll |
|
|
HBS-016 |
5/8″ |
16 |
16 |
32 |
350m/Roll |
|
|
HBS-019 |
3/4″ |
19 |
19 |
38 |
250m/Roll |
|
|
HBS-022 |
7/8″ |
22 |
22 |
44 |
250m/Roll |
|
|
HBS-025 |
1″ |
25 |
25 |
50 |
100m/Roll |
|
|
HBS-030 |
19/16″ |
30 |
30 |
60 |
100m/Roll |
|
|
HBS-035 |
11/8″ |
35 |
35 |
70 |
100m/Roll |
|
|
HBS-040 |
25/16″ |
40 |
40 |
80 |
100m/Roll |
|
|
HBS-050 |
2″ |
50 |
50 |
100 |
100m/Roll |
|
|
HBS-060 |
19/8″ |
60 |
60 |
120 |
50m/Roll |
|
|
HBS-070 |
11/4″ |
70 |
70 |
140 |
50m/Roll |
|
|
HBS-080 |
25/8″ |
80 |
80 |
160 |
50m/Roll |
|
|
HBS-090 |
7/2″ |
90 |
90 |
180 |
50m/Roll |
|
|
HBS-100 |
31/8″ |
100 |
100 |
200 |
50m/Roll |
|
Unit：mm
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
