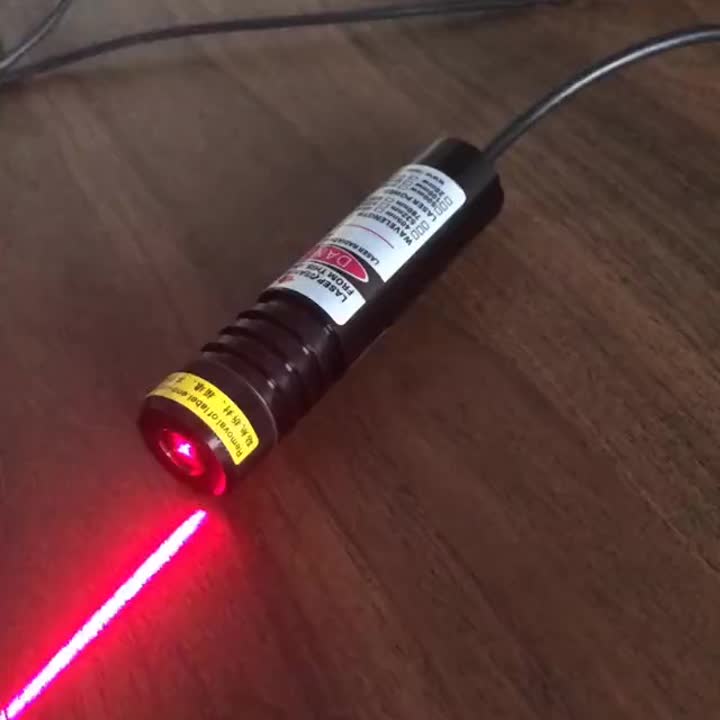

With unique titanium aerospace aluminum housing and waterproof plug, this laser is strong for positioning.

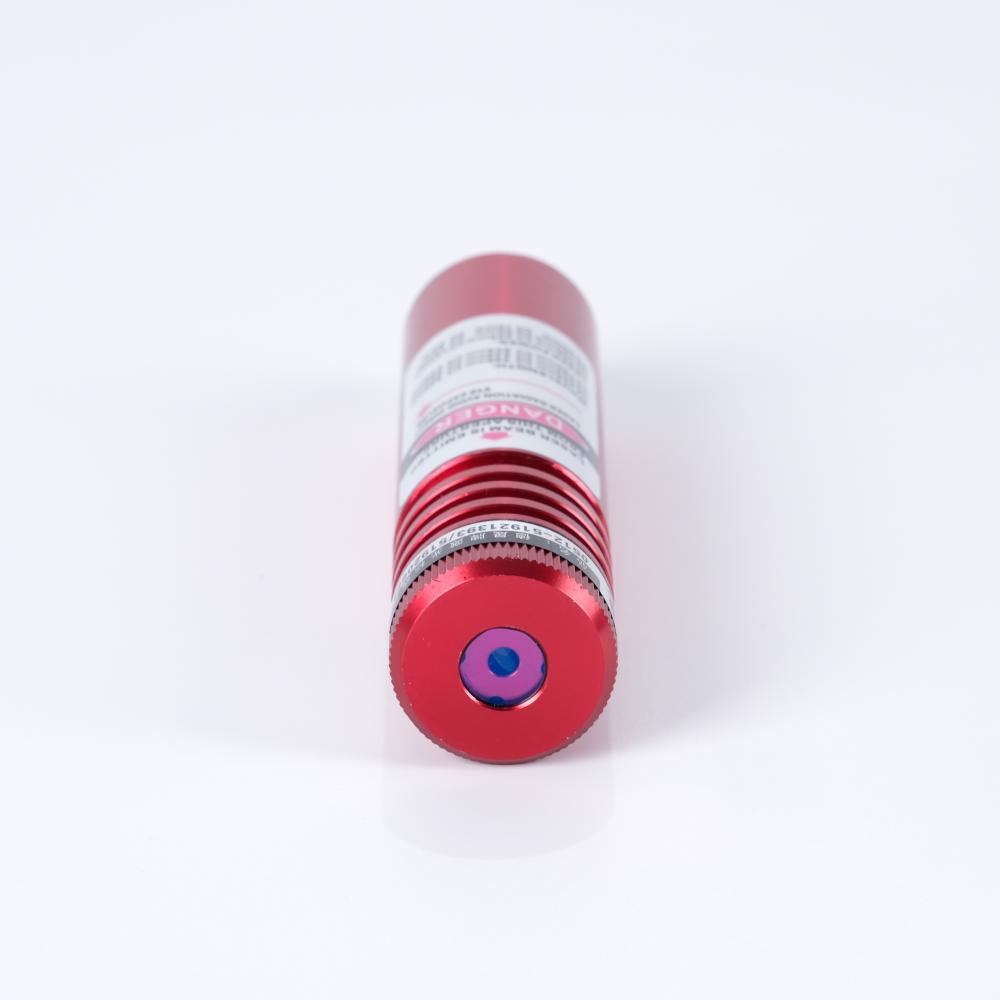

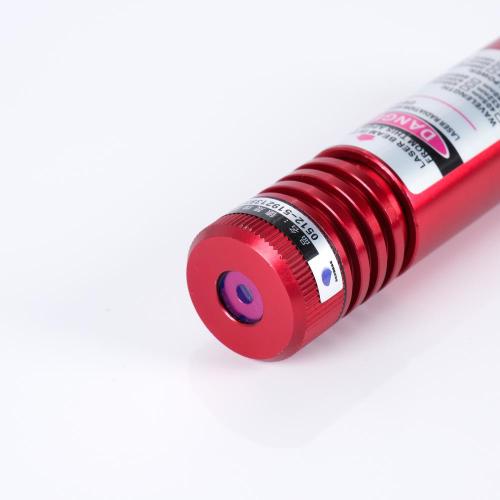

Laser Module has a unique titanium aerospace aluminum housing and a waterproof aviation plug at the rear. It’s power is up to 130mw, and it is highly waterproof and dust-proof. Laser diode module can be used in many industry  for laser for image processing.

which is used as Laser Line Generator, some customers also want to change to blue laser module, seam tracking laser module and precise measuring laser module.

Model	DSL63180LR26105
Beam Shape	Line
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	180mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	No
Working Distance	5-15m
Power Supply	12-24V, M12 Plug
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ26mm*105mm
Weight	133.3g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

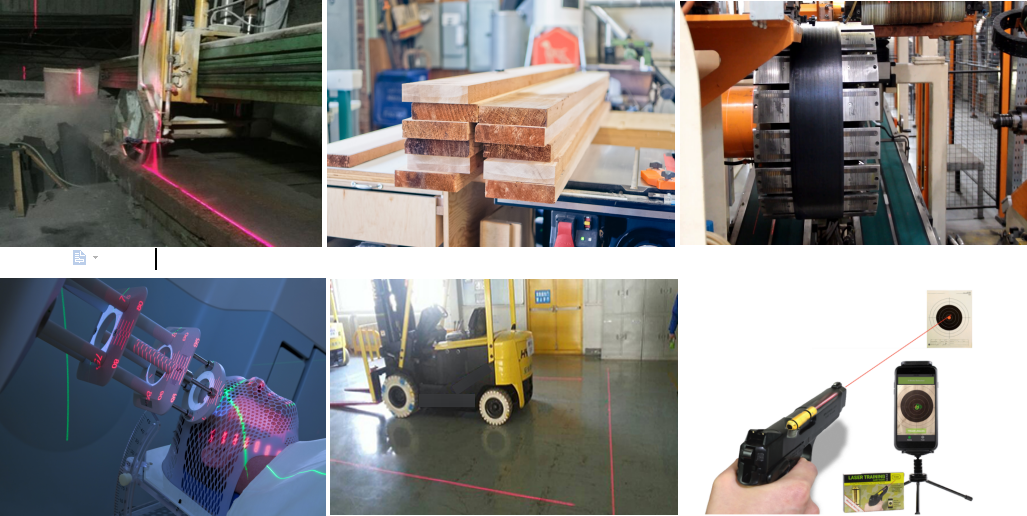

Field Application:

Bridge saw machine，Machining positioning,  and so on...
