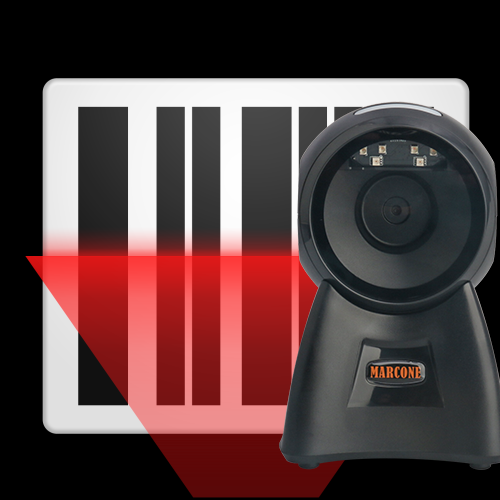

model No.: MC-x200pt  global shutter desktop Wired barcode scanner

Products Feature

? Compatible with Linux, Android, Windows XP, 7, 8, 10, MAC
? Switch to read only 1D code, to prevent misreading adjacent 2D code
? Read the coated bar code and mobile phone payment code smoothly

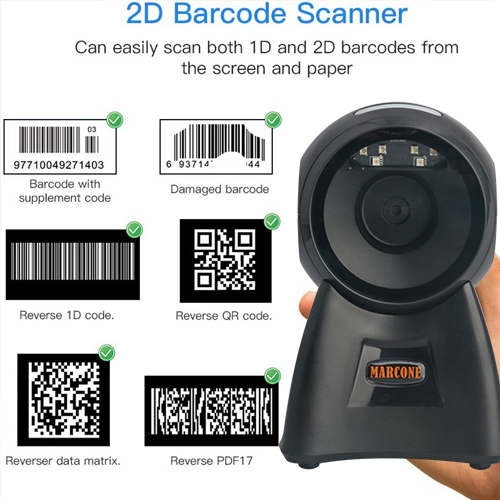

? Quick and accurate reading of universal 1D & 2D code
? Ultra wide scan wide Angle and ultra far reading distance
? Soft color fills the light, does not hurt the eye

/Physical Characteristics

Dimensions：140.20mm x 84mm x 90.10mm

Weight：249g

 Voltage：5V

 Starting Current：315mA

 Stand-by Current：235mA

Work Current：320mA

Performance Characteristics

 Image (Pixels)：CMOS 640 pixels (H) x 480 pixels (V)

  Light Source： Blue color LED; (Illumination) Red color LED

 Field of View：39°(H) X29°(V)

 Roll / Pitch / Yaw：360°, ±65° , ±65°

Print Contrast：20% minimum reflective difference

 Interfaces Supported：USB

 Resolution：≥4mil

Symbology Decode Capability
1-D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

2-D: DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、 Data Matrix、MaxiCode、Aztec、HANXIN.

 Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、 EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec

 /Using Environment
 Operating Temperature：-20°C to 60°C

Storage Temperature：-30°C to 70°C

 Humidity：5% to 95% relative hum idity,non-condensing

 Shock Specifications：Designed to withstand 1.2m(5’) drops

Ambient Light Immunity：0-100,000 Lux.

/Decode Ranges
Code39(5mil)：0-7cm Code39(13mil): 0-17cm QR(20mil)：0-11cm Alipay(QR 3*3)：1-30cm
Performance may be impacted by bar code quality and environmental conditions
