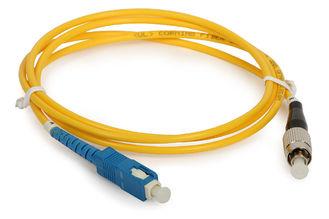

Data processing networks Optic Patch Cord with Low Insertion loss , Single Mode

Quick Details:

1. Connector: SC, FC, LC
2. Ferrule End-face: PC, UPC, APC
3. Mode: Singlemode
4. Cable core: Simplex, Duplex
5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
6. Cable color: Yellow, Orange, Aqua, Blue, Grey, Green, Red....

Features:

1. Low insertion loss and high return loss
2. Serialized & Individual Test Records
3. Guaranteed Zero Defects
4. Meets RoHS and Bell core GR 326-core standards
5. Custom Configurations Available at No Extra Charge
6. 3D fiber interferometer is available
7. FC, LC, SC, ST, MU, MTRJ, MPO optional

Applications:

1. Telecommunication networks
2. Fiber optic communication networks
3. CATV, LAN, WAN, Test &Measurement
4. Optical access network
5. Data processing networks

Specification:

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO, E2000
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm		N/A
	Fiber Protrusion	≤50nm		≤100nm		N/A
	Fiber Under Cut	≤100nm		≤100nm		N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
