Basic Info
| Model No. | HAE-1000 |
|---|---|
| Brand Name | HAE |
| Type | Ink Jet Type |
| Style | Combined Label Printing Machine |
| Structure | Reversible Printing Press |
| Color & Page | Single-Colour Printing Press |
| Usage | Label Printer |
Product description
Date Code Marking Machine Bill Barcode Inkjet Printer
Bill Barcode Inkjet Printer Introductions
HAE-1000 Bill Barcode Inkjet Printer is widely used in printing kits, cards, bills, labels, ect. It can print multiple variable date and variable graphics, and become the most ideal solution in digital printing and packaging industry. Its printing height is from 12.7mm to 304.8mm, and printing speed can up to 304m/min, it is the most advance printer ever to print variable data. it has 1-24 pcs printhead, you can make your choice according to your printing size requirements. Prices vary from 1pcs print head to 24 pcs print heads.

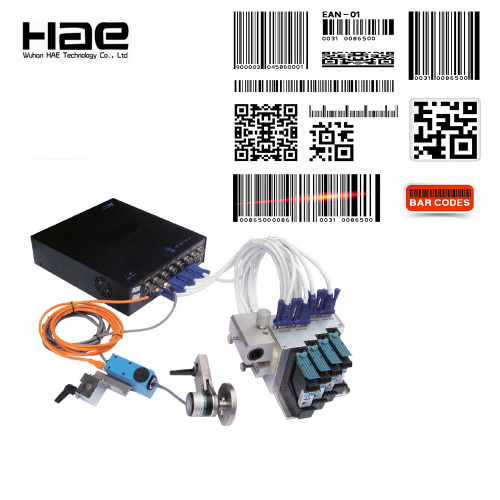

Bill Barcode Inkjet Printer Components
Components of a set of HAE-1000
1/ Computer
2/ Print Controller (HAE-1000), A set of VLBOX system can support 6 units VLBOX at most, your choice to decide the quantity.
3/ Steel frame assembly, A VLBOX can control 4 print head, your choice to decide the quantity.
4/ Color mark sensor (Sensor color)
5/ Synchronizer.(Sensor speed)
6/ VLBOX control software.(can generate variable barcode from your data)
7/ Cable.
Bill Barcode Inkjet Printer Application Industry
The HAE-1000 can print all kinds of bar code, QR code, complex graphics, and large size variable dates, widely used in:
* Packaging Industry (Drug regulatory code, ect.)
* Bill Industry (Express order, bill, ect.)
* Label Industry(Breed, multiply, label, etc.)
Bill Barcode Inkjet Printer Application Industry
| Item | HAE-1000 TIJ Variable Inkjet Coding Machine |
| Machine Size | 286mm * 260mm * 73mm |
| Printing Size | 1-24pcs print heads and 12.7mm/print head |
| Weight | Depends on printing heads number |
| Interface | RS232C (DB9) (Central ink supply) |
| DPBOX 100M Ethernet / PC 1000M Ethernet | |
| Printhead(×4) | |
| Printing Resolution and Speed | 600×600 dpi ( 30m/min ) |
| 600×300 dpi ( 60m/min ) | |
| 600×200 dpi ( 90m/min ) | |
| 600×150 dpi ( 120m/min ) | |
| 300×600 dpi ( 30m/min ) | |
| 300×300 dpi ( 60m/min ) | |
| 300×200 dpi ( 90m/min ) | |
| 300×150 dpi ( 120m/min ) | |
| 300×600 dpi(High speed) ( 60m/min ) | |
| 300×300 dpi(High speed) ( 120m/min ) | |
| 300×200 dpi(High speed) ( 180m/min ) | |
| 300×150 dpi(High speed) ( 304m/min ) | |
| Ink Supply System | Single HP cartridge, large ink bag, central ink supply system |
| Sensor | Support a wide range of external sensors (NPN type, contact type) |
| Synchronizer | 300PPI |
| Power | 110-120VAC 50/60Hz 3.2A |
| 220-240VAC 50/60Hz 1.6A | |
| Work Environment | Temperature 10 to 35 degrees |
| Humidity 10% to 80% | |
| Operation system | XP |
| Static Object | Static text, images, barcodes |
| Dynamic Object | Dynamic text, counters, dates, and dynamic bar codes (dynamic bitmaps need to be customized) |
| Barcode Type | One-dimensional: EAN128, Code25, Code39, Code93, Code128, GS1databar and other one-dimensional code |
| Two dimensional: PDF417, Data, Matrix, Maxi, Code, QR-code and other two-dimensional code |
