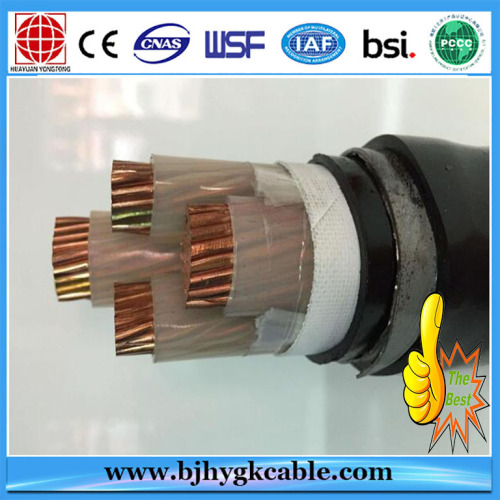

DC 4 Core 35mm2 Copper Electrical Cables
Get Latest Price
You might also like
Basic Info
| Model No. | NYY |
|---|---|
| Brand Name | HUAYUAN YONGTONG |
| Type | Insulated |
| Conductor Type | Stranded |
| Application | Underground |
| Conductor Material | Copper |
| Sheath Material | Crosslinking |
Show More
Product description
Electric copper power cable is used to transmit and distribute power in power transmission
and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines,
metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power
cable and in partial replace of PVC insulated power cable.
Standard
The products can be produced according to our factory specification which is equivalent to the standard
IEC60502. The factory can also design and manufacture special power cable according to the other standards required by
the customers.
Properties
1. The long-time permissible working temperature of cable conductive core is not more than 90 degrees.
2. During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor
is not more than 250°C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0°C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
Size
Nominal Cross-sectional Areas
1.5 mm2, 2.5 mm2 ,4 mm2, 6 mm2, 10 mm2 , 16 mm2,25 mm2 , 35 mm2, 50 mm2 ,70 mm2 ,
95 mm2 ,120 mm2 ,150 mm2,185 mm2 ,240 mm2,300 mm2 400 mm2 , 500 mm2 , 630 mm2 ,
800 mm2
Production range
Single core cable: from 1.5 mm2 to 800 mm2,
and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines,
metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power
cable and in partial replace of PVC insulated power cable.
Standard
The products can be produced according to our factory specification which is equivalent to the standard
IEC60502. The factory can also design and manufacture special power cable according to the other standards required by
the customers.
Properties
1. The long-time permissible working temperature of cable conductive core is not more than 90 degrees.
2. During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor
is not more than 250°C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0°C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
Size
Nominal Cross-sectional Areas
1.5 mm2, 2.5 mm2 ,4 mm2, 6 mm2, 10 mm2 , 16 mm2,25 mm2 , 35 mm2, 50 mm2 ,70 mm2 ,
95 mm2 ,120 mm2 ,150 mm2,185 mm2 ,240 mm2,300 mm2 400 mm2 , 500 mm2 , 630 mm2 ,
800 mm2
Production range
Single core cable: from 1.5 mm2 to 800 mm2,
Multi-core cable: from 1.5 mm2 to 400 mm2
