DDM Brand Round Flange Edge Forming Machine
$13500.00
≥1 set
Options:
- TDC-30A
Get Latest Price
You might also like
Basic Info
| Video Outgoing-inspection | Provided |
|---|---|
| Machinery Test Report | Provided |
| Core Components | roller |
| Brand Name | DDM |
| Weight | 2000 KG, 2000 KG |
Show More
Product description
Product Overview
DDM Brand TDC-30A HVAC TDC TDF steel round duct flange automatic forming making machine
Machine Features
Main Features:
Sheet Thickness: 0.8-1.0
Strip width :89-128mm
Roller shape : two types
Roll forming your own TDC flanges with 16 forming stations on transverse duct ends during the manufacturing process has never been easier.
The TDC flange, per Duct Construction Standard specifications, is formed on the machine started from decoiler, feeder, roll forming machine, cutting machine and stacking device
automatically.
The frame adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated.
Adopting floor boring-milling machine for guaranteeing the precision.

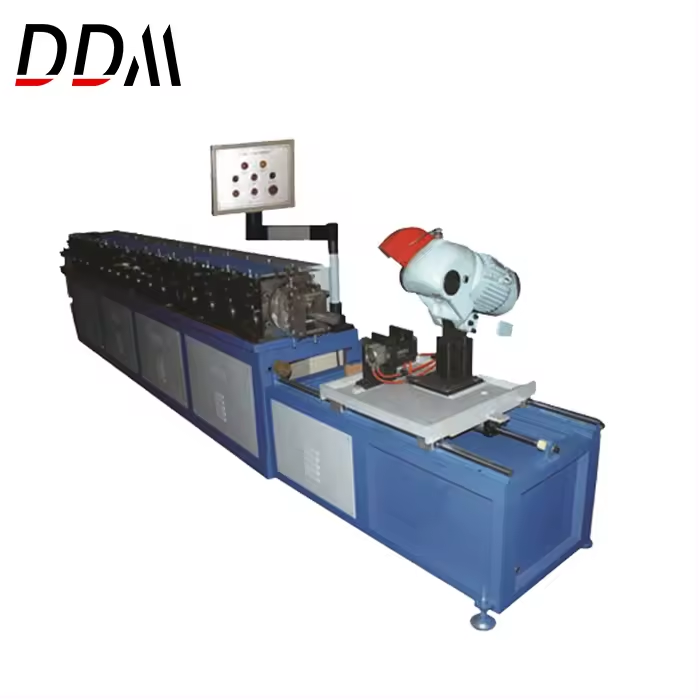

The over view of TDC-30A HVAC TDC TDF steel round duct flange automatic forming making machine

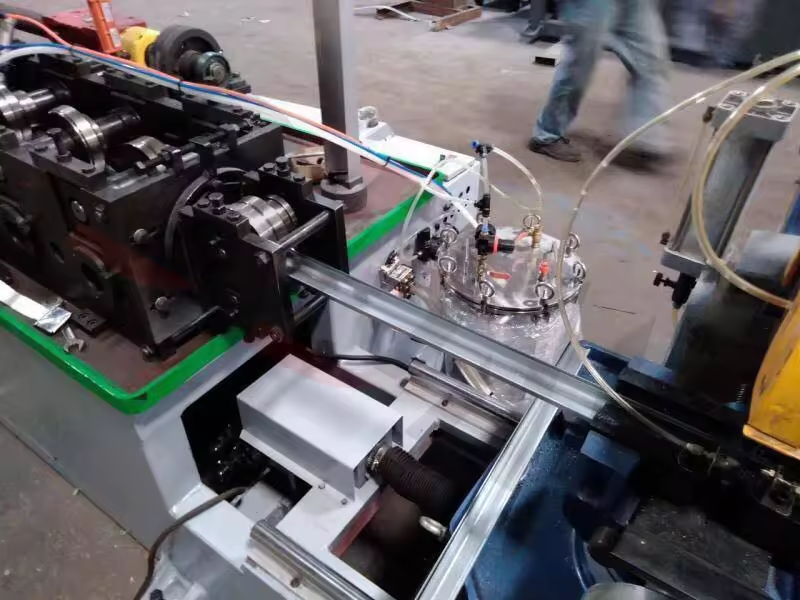

Glue adding machine for TDC-30A HVAC TDC TDF steel round duct flange automatic forming making machine
TDC flange sample made by TDC-30A HVAC TDC TDF steel round duct flange automatic forming making machine
Machine Parameters
Technical Data | ||||||||||
Model | Strip Width (MM) | Thickness (MM) | Power （KW) | Weight (KG) | Dimension (MM) | |||||
TDC-20A | 89 | 0.8 | 3 | 2000 | 2800*600*1150 | |||||
TDC-25A | 99 | 0.8 | 3 | 2000 | 2800*600*1150 | |||||
TDC-30A | 121 | 1 | 3 | 2000 | 3800*600*1150 | |||||
TDC-35A | 131 | 1 | 3 | 3000 | 3200*600*1200 | |||||
TDC-40A | 146 | 1.2 | 4 | 3000 | 3200*600*1200 | |||||
TDC-20B | 86 | 0.8 | 3 | 2000 | 2800*600*1150 | |||||
TDC-25B | 96 | 0.8 | 3 | 2000 | 2800*600*1150 | |||||
TDC-30B | 118 | 1 | 3 | 2200 | 2800*600*1150 | |||||
TDC-35B | 128 | 1 | 4 | 3000 | 3200*600*1200 | |||||
Packing & Delivery
Customer Photos
DDM customer are coming from all over the world such as Egypt ,Canada ,Belgium , USA,Israel ,Argentina ,Denmark ,Vietnam ,Indonesia ,Malaysia and so on . We warmly welcome your coming and cooperate with you .
