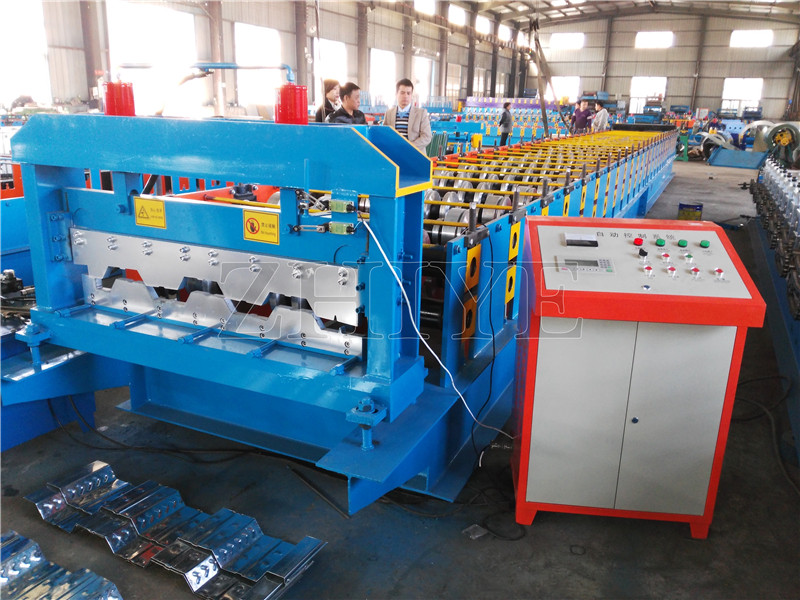

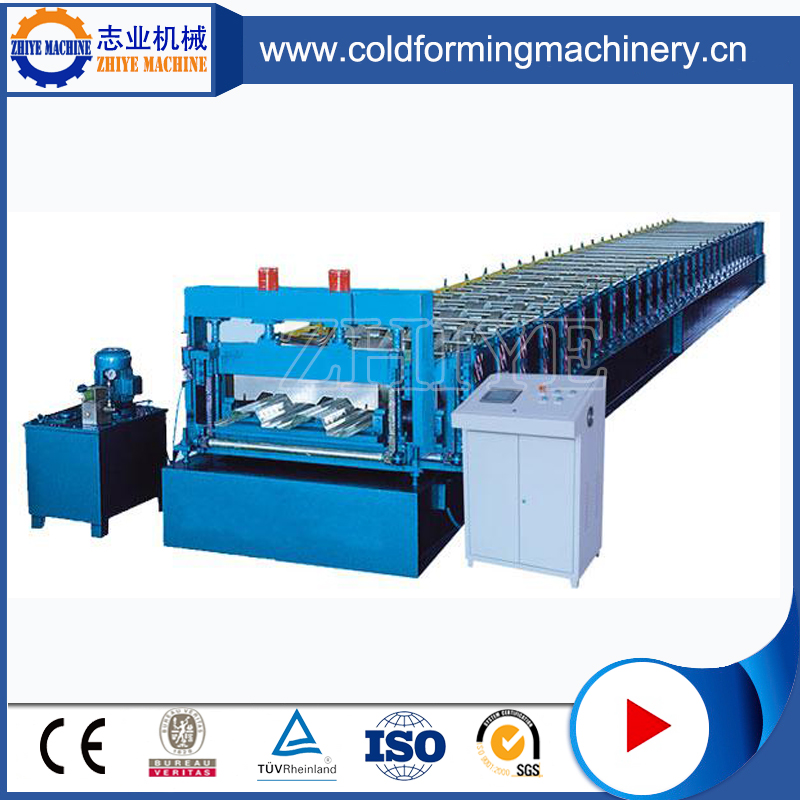

Decking Floor Panel Making Machine

products details:

The roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Genaral
Material:	Galvanized Coil, Aluminum
Material Thickness:	0.3-0.5mm
Main roll forming machine Power:	11 KW
Forming Speed:	10-12m/min
Feeding width:	229mm
Production line G/W:	12.5T
Production line length:	about 38m

1. Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T
Inner diameter: 500-508mm

2. Feeding Table:
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

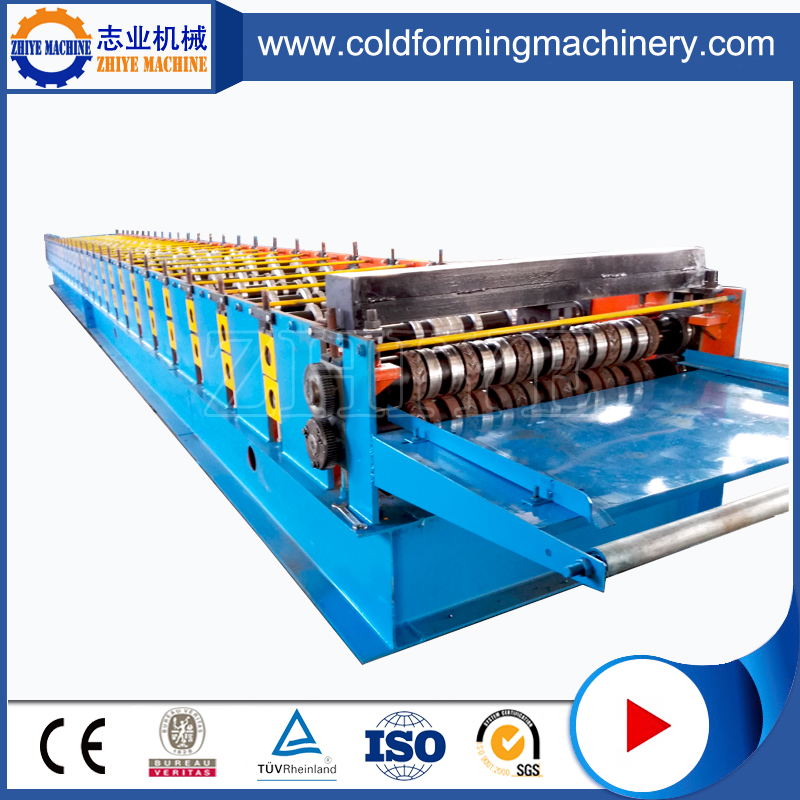

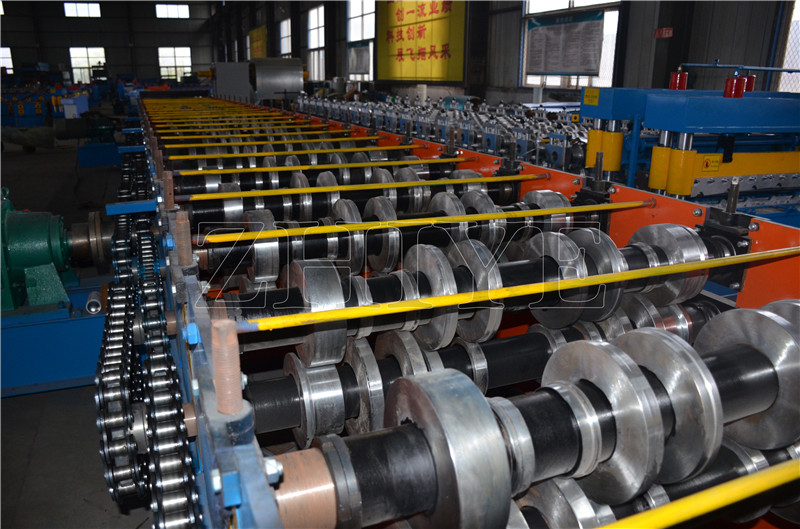

3. Main Roll Forming Machine:
Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

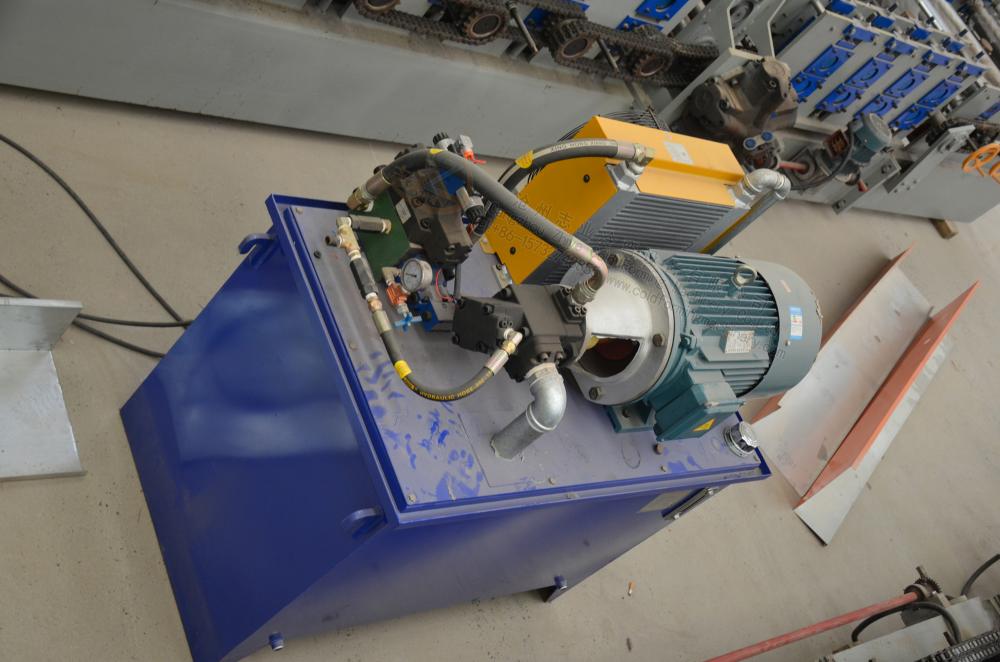

4. Hydraulic System:
Hydraulic oil:40#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

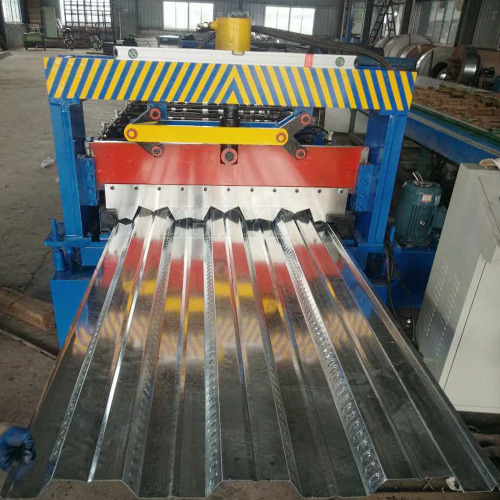

5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

Packaging and shipping:

1.One 40ft container for loading one set machine with manual decoiler;

2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;

Our Service:

Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.

Company information:

Cangzhou Zhiye Cold Forming Machinery Co.,Ltd  has been entitled with the [key private   enterprise" by the local government and over the years, we have been dedicated to the research&development as well as the    fabrication of the forming machines of metallic plate cold bending roller. Owing to the unique the managerial fashion and the ability on product-developing, we have placed ourselves in a leading position amid the competitors in the same field and our products have won the favor from the steel construction industry for its light and ingenious structure and the appropriate design as well.
