Paper Pulp Deinking Flotation Cell Floatating Dispersering Bleaching Equipment

Floatating-Dispersering-Bleaching Equipment including Bleaching Tower, Flatation Machine, Disc Heat-disperser and Kneader.Flotation Machineis  designed to remove hydrophobic impurities such as ink particles, gooey, plastics or filings in waste paper stock.

Deinking Flotation Design Features:

It's able to remove a wide range of ink particles with sizes of 5 to 500 micra.lt is designed with a built-in aeration component in favor of the process gas loop.owing to the reasonable combination of the troughs, it is easy to control fuid level, which results in reliable operation and a wide range of capacity.
Two-stage fotation system (frst stage plus second stage) guarantees the maximum removal of the impurities such as ink particles as well as the least loss of the fber.Two-stage fotation system (front stage plus back stage) is arranged in cascade and less space is required.

Floatation deinking machine
Flotation Deinking Cell recycled waste paper pulp machine, The equipment is used for removing the ink particles in the waste paper pulp.
This equipment is an up-to-date full sealing multilevel floatation deinking machine for special using in deinking of waste paper. In the equipment via the special structure of the grade separation device, it forms a floatation of multi-layered to prevent to mix floatation of different stages. The equipment has many remarkable excellences such as deinking high efficiency, high brightness pulp after deinking, release high ink thickness, little fiber loss, occupied small area, easy operation control.

1. Bubble concentration up to 5% , basic does not contain fiber.
2. Can remove the ink particles and stickies, plastic films and other light impurities, pulp high whiteness
3. No need to clean, no water pipe, there is no water consumption.
4. Good pulp quality adjustable, can adjust the value at the foam outlet to adjust the bubble flow and into the pulp quality.
5. Fully closed, no overflow, low noise, the air can be recycled, no fan, reducing investment and power consumption, cleaner operating environment.
6. Easy to install, only one can realize the multistage floatation, covers a less area.

Floatation deinking machine Technical Specification

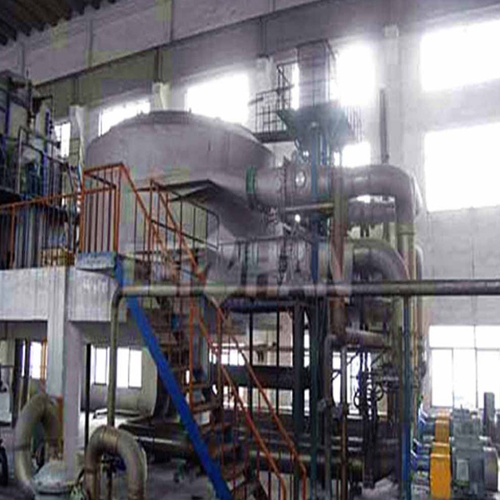

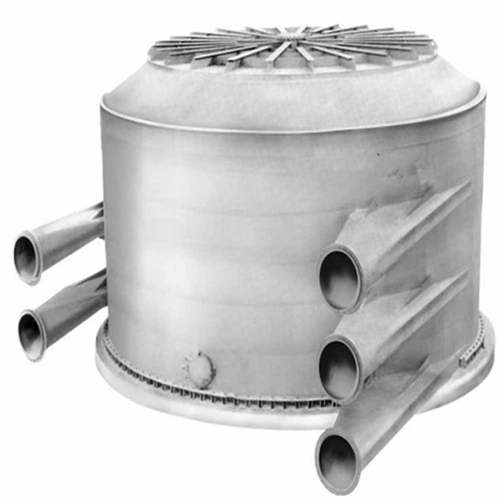

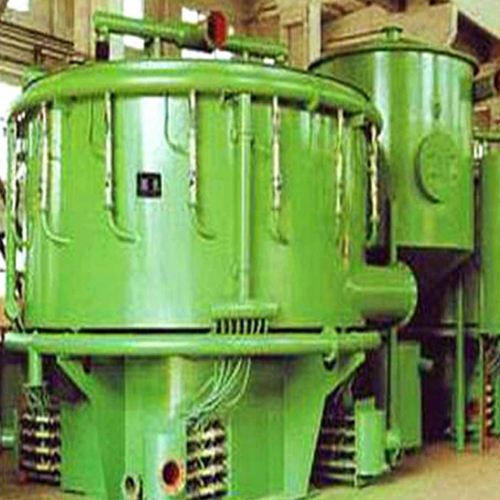

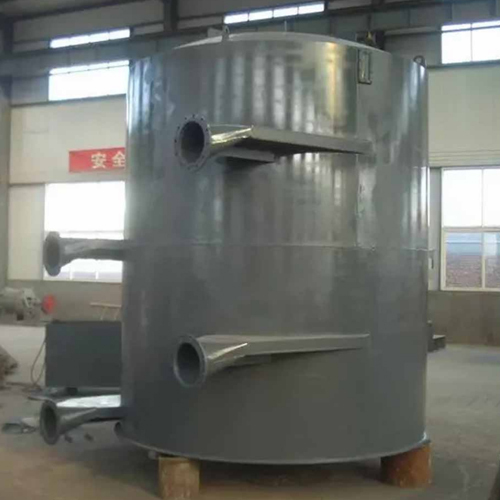

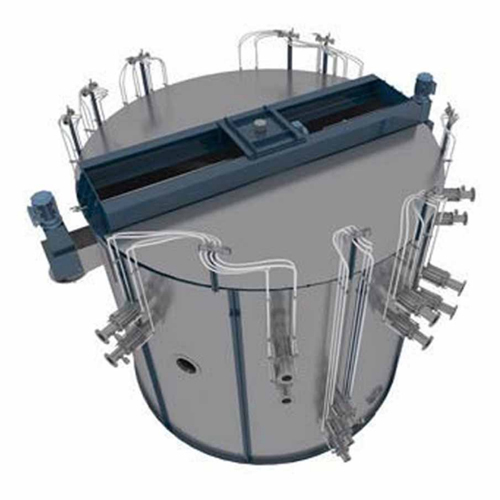

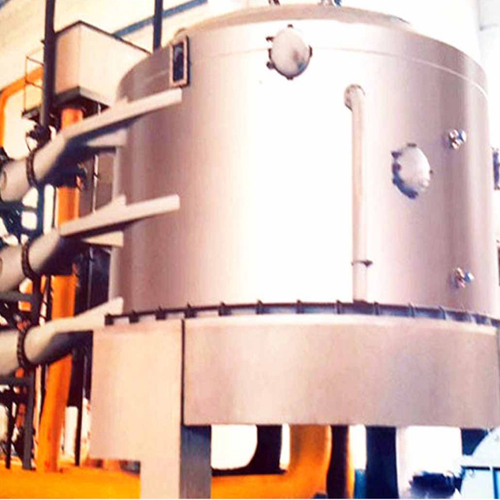

Floatation deinking machine Photos showing
