Basic Info

Model No.
Brand Name	A1BEST
Material	Alloy
Certification	Other
Media	Other
Standard	Standard
Connection Mode	Flange
Power	Hydraulic
Type	Self-Operated

Product description

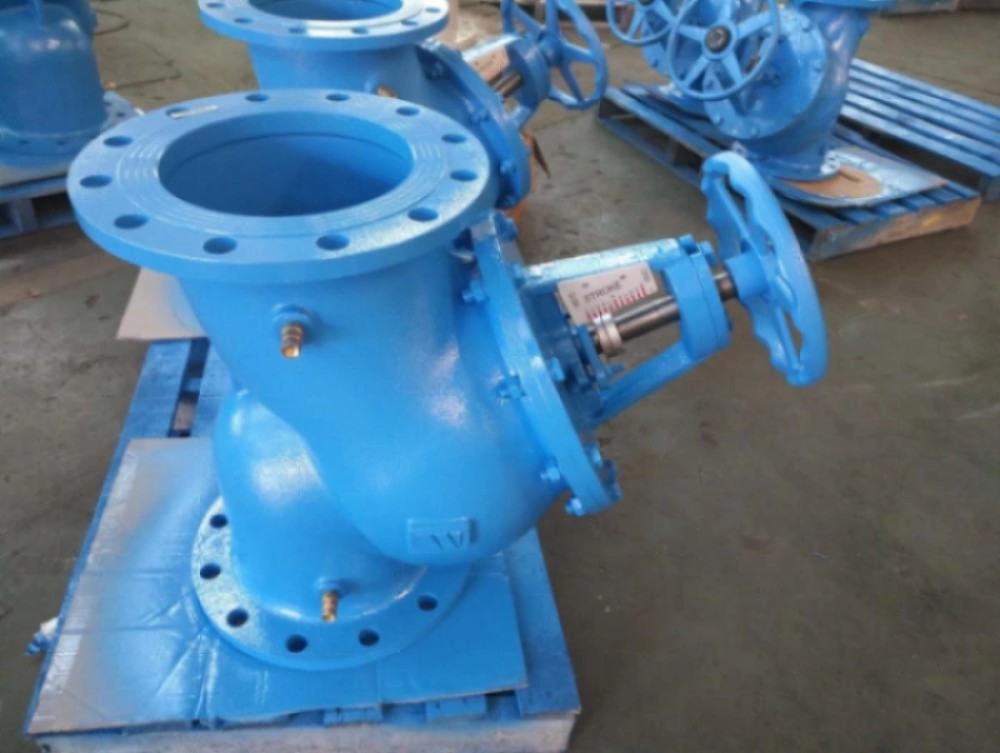

Prominent Multifunction Valve is composed of main Valve, regulating Valve and takeover system, the Valve body adopts straight flow Valve, 1 Multi Function Valve control room is diaphragm type or piston type double control room structure, The control room of delta Multi Function Valve is added one more than the general hydraulic control valve, which increases the control function of the main valve and realizes the multifunctional control of the pump outlet, such as slow opening, full opening, slow closing and cut-off. Multi Function Air Brake Valve realizes multi-function control of pump outlet with one Valve and one adjustment.

Product name: MV08 multi-function valve

Features:

1. Install it horizontally or vertically

2. Annular seal to ensure no leakage

3. Bronze/stainless steel interior - long service life

4. Position indicator

5. No lubrication required

6. Metering connection

7. Removable cover design, easy maintenance of inline material body: ductile iron cover plate: ductile iron stem: stainless steel disc: ductile iron spring: stainless steel

Pressure temperature rating:

The class	JIS10K/150LB/PN10	JIS16K/PN16
Pressure of work	10kgf/cm2	16kgf/cm2
The temperature	-10°C~120°C	-10°C~120°C

size	a （mm）	b （mm）	The weight of the（kg）
DN50(2”)	185	210	12
DN65(2.5”)	229	240	15
DN80(3”)	250	240	24
DN100(4”)	320	310	43
DN125(5”)	370	340	62
DN150(6”)	415	370	85
DN200(8”)	500	530	150
DN250(10”)	605	610	220
DN300(12”)	725	665	370
DN350(14”)	733	715	385
DN400(16”)	990	970	450
DN450(18”)	1000	1125	550
DN500(20”)	1100	1111	680
