diamond core drilling machine
Basic Info
| Model No. | QZ-2DS |
|---|---|
| Brand Name | huaxiamaster |
| Usage | Ore |
| Power Type | Diesel |
| Type | Core Drilling Rig |
| Condition | New |
| Borehole Diameter (mm) | 32-46 |
Product description

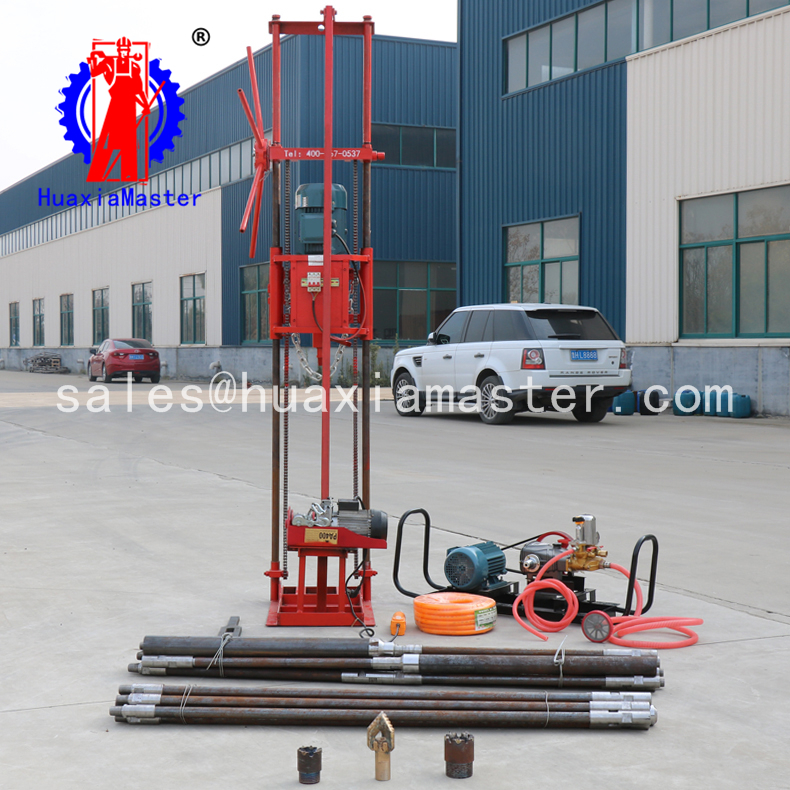

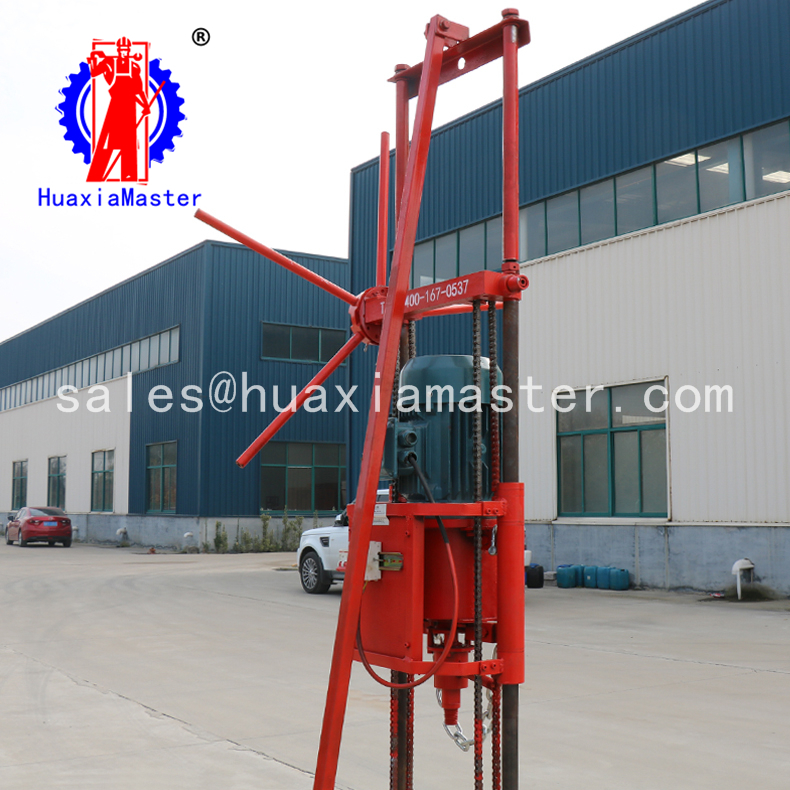

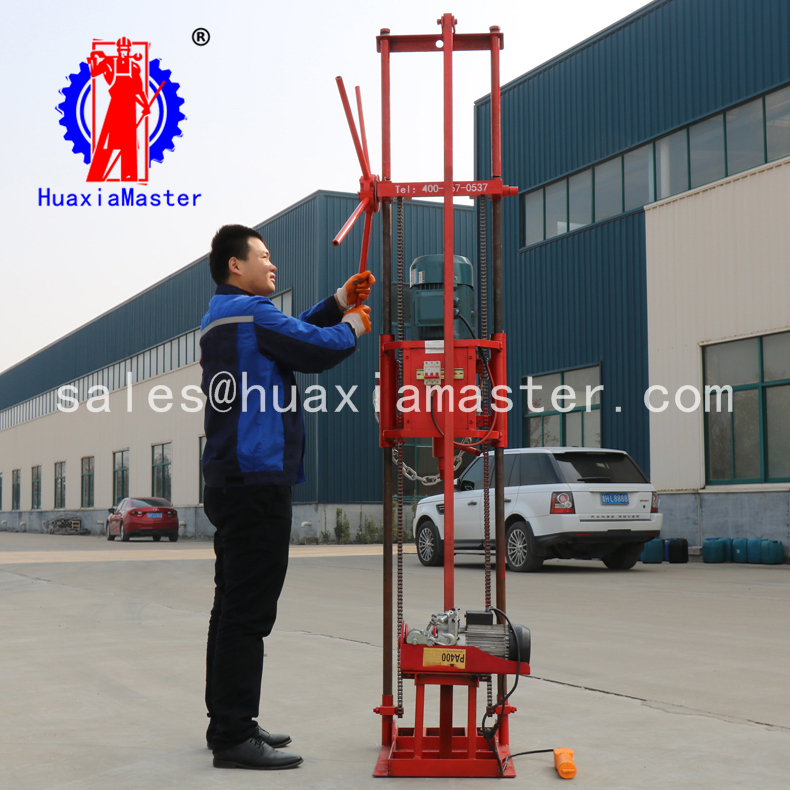

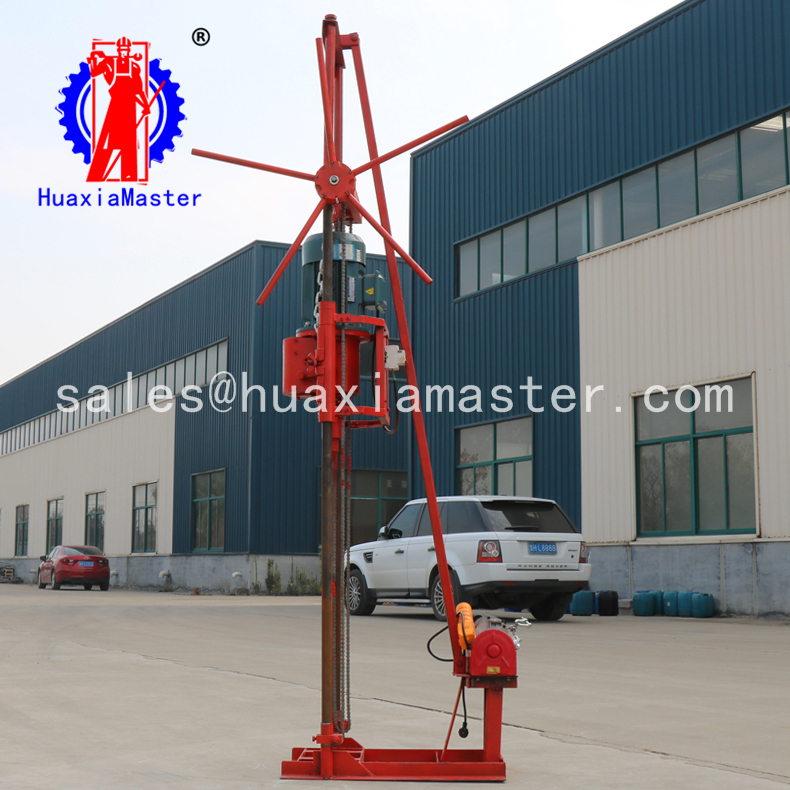

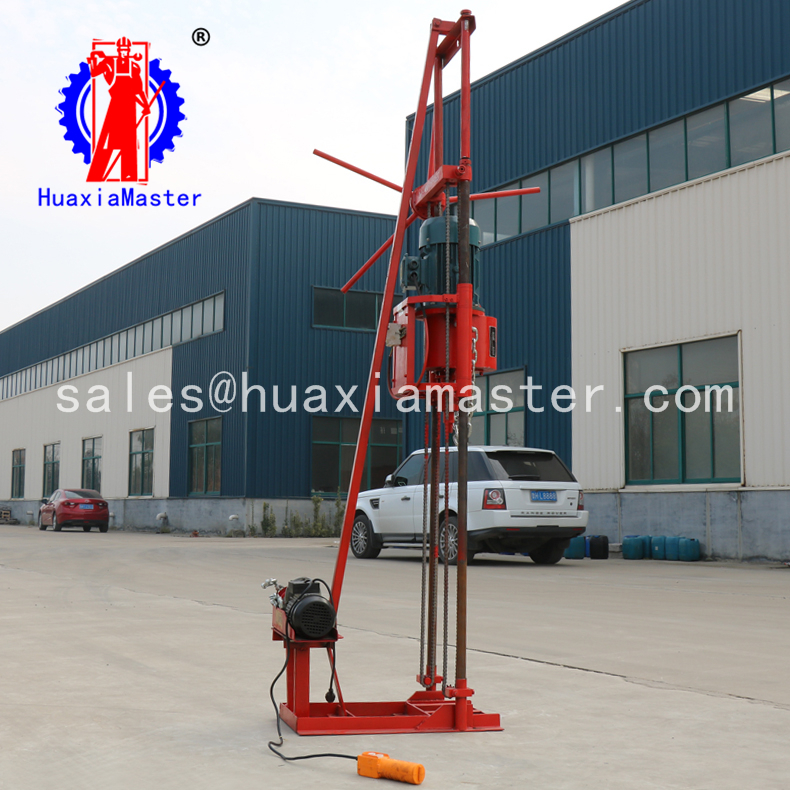

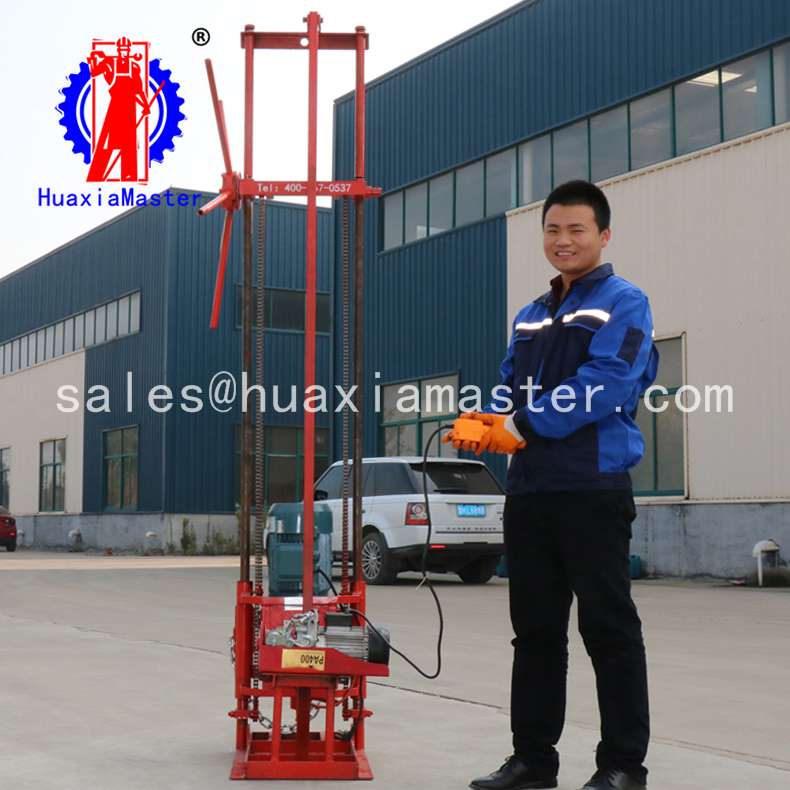

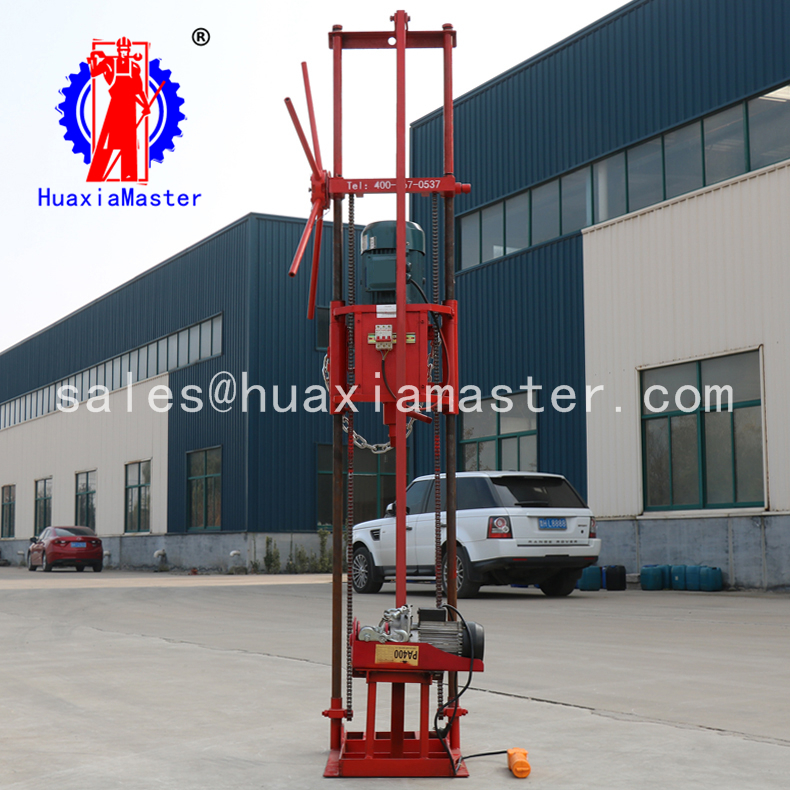

1. Brief introductions of QZ-2DS three phase electric sampling drilling rig
QZ-2DS three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2DS three phase electric sampling drilling rig
|
QZ-2DS three phase electric sampling drilling rig |
||
|
End hole diameter (mm) |
32-110 |
|
|
Drilling depth(m) |
soilφ110:10m soilφ91:10-15m stoneφ91:5-10m stoneφ75:10-15m stoneφ60:15-20m stoneφ46:20-30m |
|
|
Drilling pipe diameter (mm) |
30 |
|
|
Three phase electric engine |
power |
4kw |
|
model |
YX3-112M-4 |
|
|
Dimension(l*w*h) |
600*650*2330 |
|
|
Weight(kg) |
110 |
|
3. Configuration list of QZ-2DS three phase electric sampling drilling rig
|
Item |
Parameter |
Unit |
Quantity |
|
Three phase electric sampling drilling rig |
QZ-2DS |
set |
1 |
|

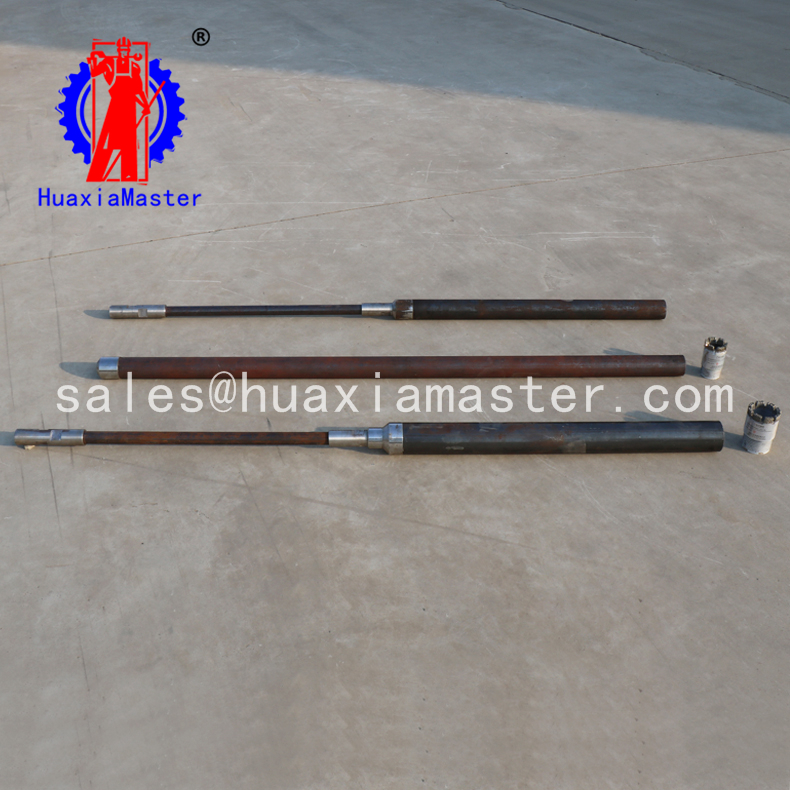

Drilling pipe |
30*1500 |
pc |
6 |
|
Drilling pipe |
30*800 |
pc |
13 |
|
Pipe joint |
38 |
pc |
19 |
|
Reducing nipple |
58/38 |
pc |
1 |
|
Core barrel |
58*800 |
pc |
1 |
|
Core barrel |
58*1500 |
pc |
1 |
|
Alloy bit |
60 |
pc |
1 |
|
Diamond bit |
60 |
pc |
1 |
|
Reducing nipple |
73/38 |
pc |
1 |
|
Core barrel |
73*800 |
pc |
1 |
|
Alloy bit |
75 |
pc |
1 |
|
Diamond bit |
75 |
pc |
1 |
|
Three-wing bit |
75 |
pc |
1 |
|
Safety clamp |
|
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
|
Oil seal |
30*50*10 |
pc |
1 |
|
Pipe wrench |
18 |
pc |
2 |
|
Monkey wrench |
|
pc |
1 |
|
Shaft snap ring clamp |
|
pc |
1 |
|
Hole snap ring clamp |
|
pc |
1 |
|
Pliers |
|
Pair |
1 |
|
Cross screwdriver |
|
pc |
1 |
|
Hex wrench |
|
pc |
1 |
|
Control wheel |
|
pc |
1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
