diamond core drilling machine
Basic Info
| Model No. | QZ-2B |
|---|---|
| Brand Name | huaxiamaster |
| Usage | Ore |
| Power Type | Diesel |
| Type | Core Drilling Rig |
| Condition | New |
| Borehole Diameter (mm) | 32-46 |
Product description

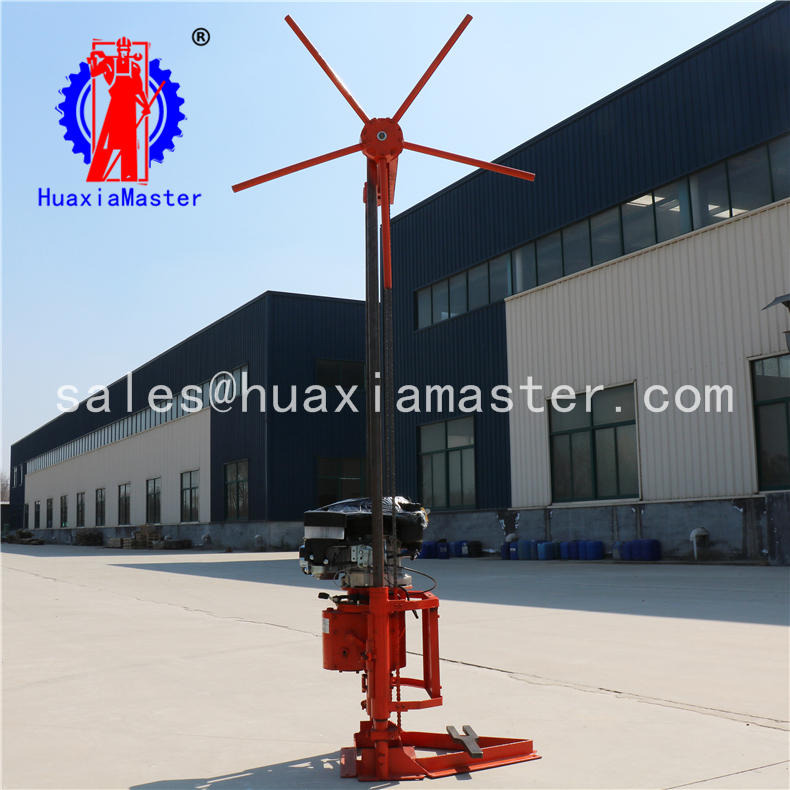

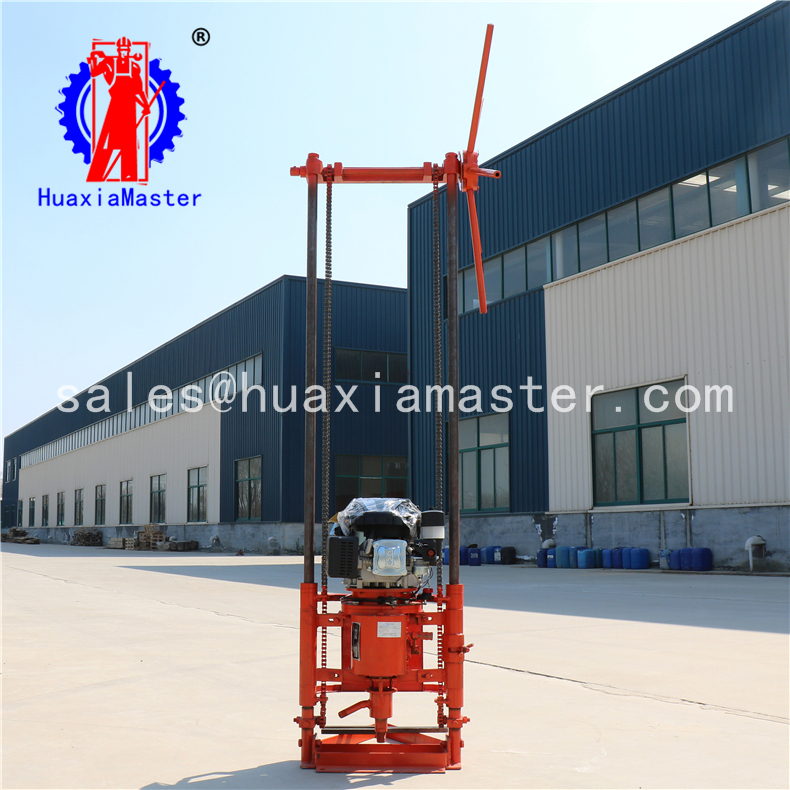

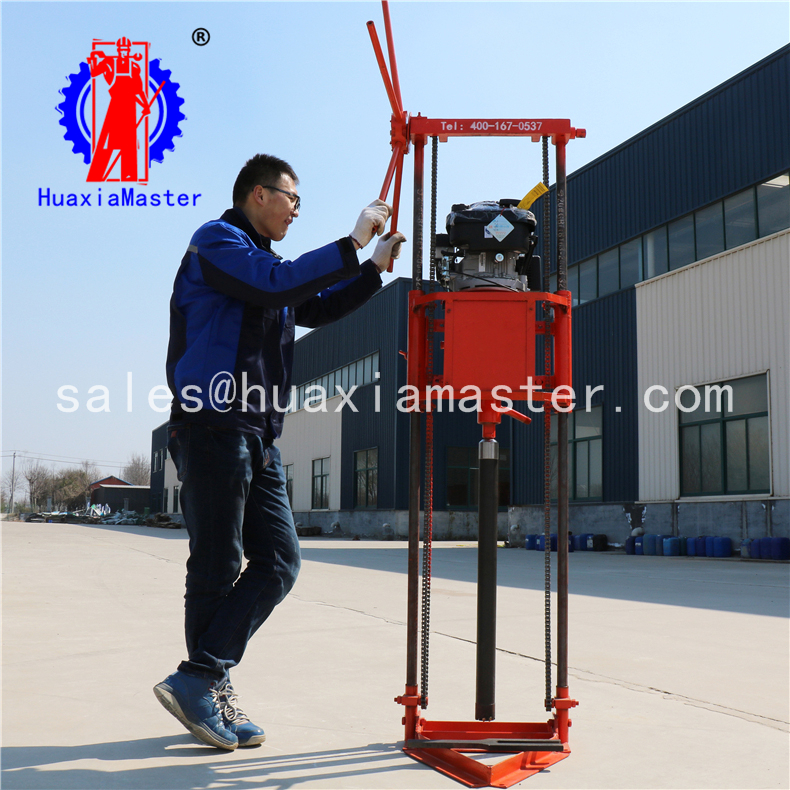

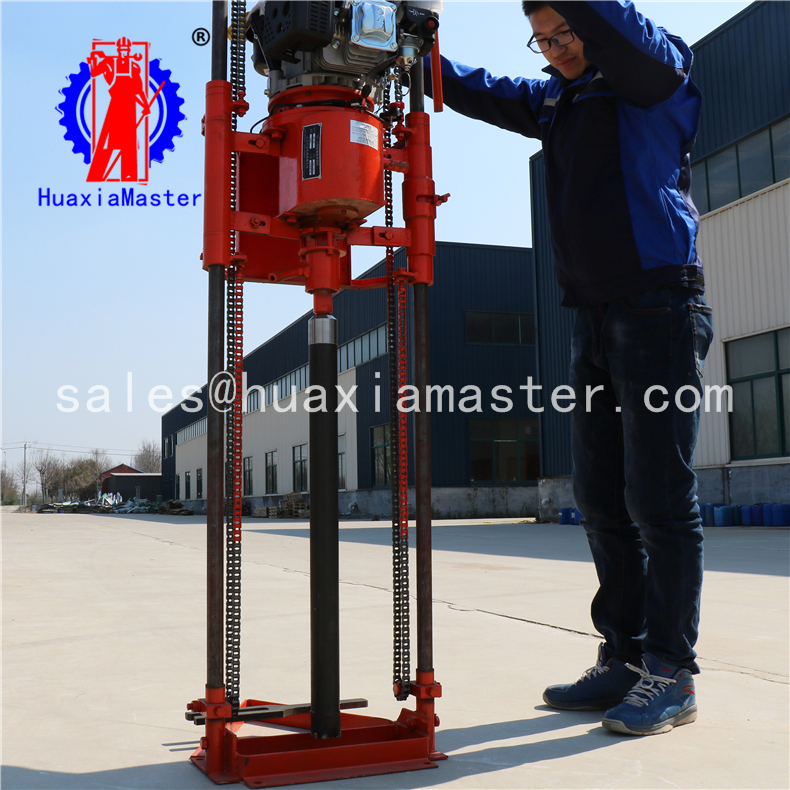

1.Brief introduction of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2B gasoline engine sampling drilling rig
|
QZ-2B gasoline engine sampling drilling rig |
||
|
Bottom hole diameter (mm) |
32-91 |
|
|
Drilling depth(m) |
soil φ91:10-15m stoneφ91:5-10m stoneφ75:10-15m stoneφ60:15-20m stoneφ46:20-25m |
|
|
Drilling pipe (mm) |
28 |
|
|
Rotating speed(r/min) |
200-570 |
|
|
Torque(n.m) |
110 |
|
|
Gasoline engine |
house power(hp) |
5 (3.5kw) |
|
displacement(cc) |
196 |
|
|
Dimension(l*w*h) |
600*450*1900 |
|
|
Weight(kg) |
90 |
|
3.Configuration list of QZ-2B gasoline engine sampling drilling rig
|
Item |
Parameter |
Unit |
Quantity |
|
Gasoline engine sampling drilling rig |
QZ-2B |
set |
1 |
|
Drilling pipe |
28*1500 |
pc |
6 |
|
Drilling pipe |
28*800 |
pc |
8 |
|
Pipe joint |
35 |
pc |
14 |
|
Reducing nipple |
45/35 |
pc |
1 |
|
Core barrel |
45*800 |
pc |
1 |
|
Alloy bit |
46 |
pc |
1 |
|
Reducing nipple |
58/35 |
pc |
1 |
|
Core barrel |
58*800 |
pc |
1 |
|
Alloy bit |
60 |
pc |
1 |
|
Three-wing bit |
60 |
pc |
1 |
|
Safety clamp |
|
hold |
1 |
|
Water seal |
30*50*10 |
pc |
4 |
|
Oil seal |
30*50*10 |
|
|
|
Oil seal |
17*50*10 |
|
|
|
Control wheel |
|
pc |
1 |

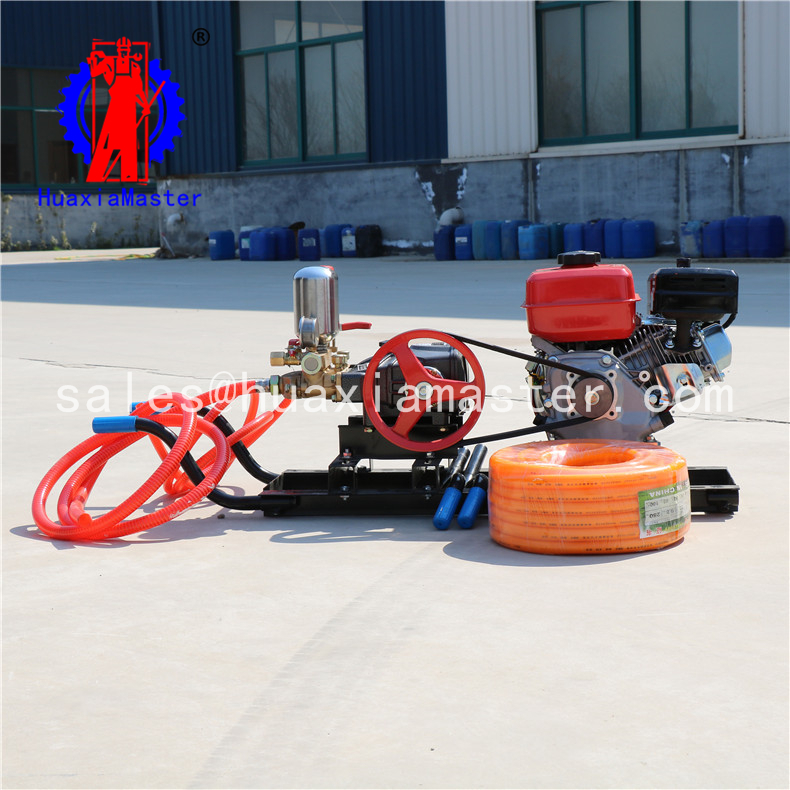

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
