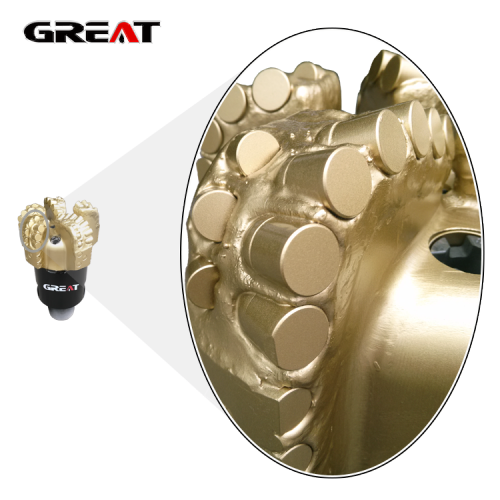

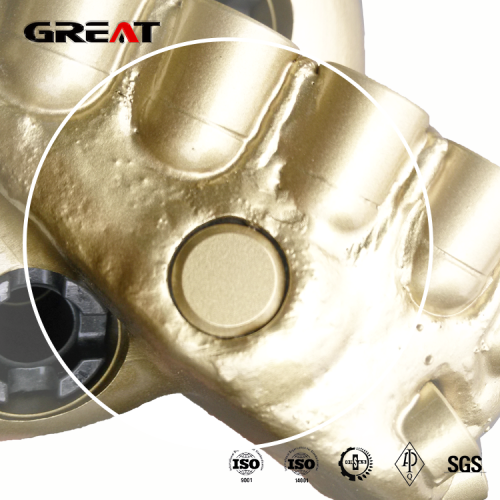

Diamond PDC bit oil well PDC drill bit
Basic Info
| Model No. | GS1615TQ |
|---|---|
| Brand Name | Great |
| Customized | Customized |
| Certification | API |
| Length | Other |
| Type | Center Drill Bit |
| Material | Diamond |
Product description
8 1/2 '' Diamond PDC bit/diamond PDC drill bit/oil well PDC drill bit
PDC Drill Bit is mainly used to drill oil well,gas well,water well,etc.
We design and product specifie PDC Bit with good performance for each soft,medium and hard formation.
?Clay stone/lignite/siltstone/sands:we design 3-5 blades with low density cutter placement,large slot.Low cost,high speed.
?Mudstone :we have experience to design suitable blades shape and cutterdirection to get high drill speed and stalbe drill.
?Grave/limestone/shale/clay/stone/tuff:round crown and reasonable cutter direction.Drill smoothly in good speed.
Advantages
1. Short parabolic crown profile, medium cutter density.
2. Interchangeable screw nozzle.
3. Structured diamond/carbide interface. Cutter delays the onset of Fracturing and cutter wear.
4. Under-cut shank maximizes junk slot area for better bit cleaning. Hign filt nozzles
for improved hydraulics and Rop.
5. Can be used on rotary or down hole motor.
6. Surfable for soft to medium formation.
| Bit specification | |||
| Bit Type | 8 1/2" GS1615TQ | Nozzle Qty | 6NZ |
| IADC Code |
S323 |
Gauge Length(mm) | 55 |
| Blade | 5 | Connection | 4 1/2" API REG |
| Cutter size(mm) | 13mm;16mm | N.W./G.W.(KG) | 46/61 |
| Cutter Qty | 13*35;16*25 | Nozzle Size(inch) | 16/32;18/32 |
Client Feedback
Dull grading
Dull grading : 1-1-WT-A-X-I-NO-TD
The 8 1/2 -in. GSD1635TZ bit had no damage on the inside cutting structure and only a few worn cutters in the outer row.
The operator was extremely pleased by the success of the operation and plans to use the bit for another wells and promote the bit in the block.
We customized the type and size according to different drilling demand .
The mainly products :
PDC Bits : Matrix body and Steel body ;
Tricone Rock Bits / Pilot Bits : TCI Bits and Steel Tooth Bits (Milled Tooth Bits );
PDC Hole Openers : High Effective drilling works ,saving times and money .
PDC reamers : Used for high quality wellbore .
Rock Reamers ,is also named HDD Hole Openers ,including segments of TCI bits and segments of Steel tooth bits ;
Roller Cone Cutters : also named Segments Of Tricone Bits ,used for Rock reamers .
