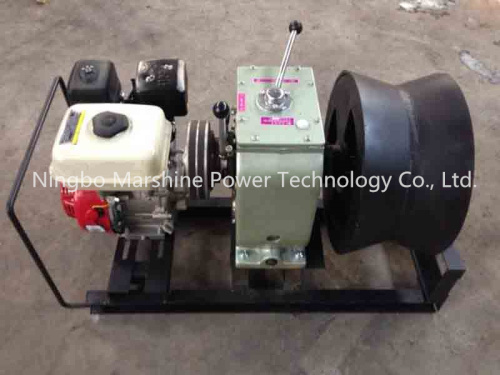

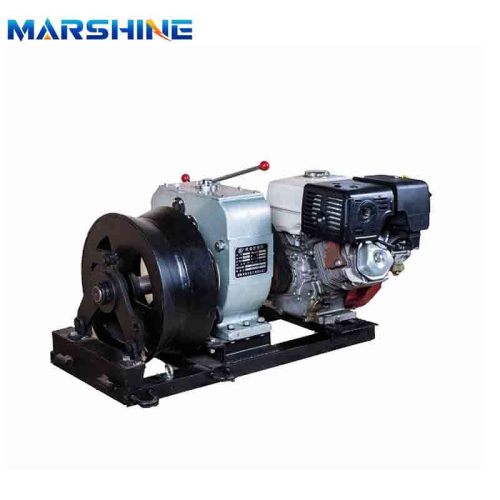

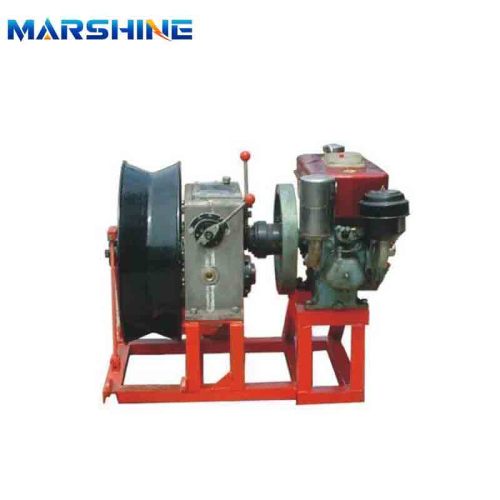

Diesel Engine Powered Cable Pulling Winch Machine
Basic Info
| Model No. | LJ |
|---|---|
| Brand Name | MARSHINE |
| grade | Industrial |
| Support customization | Oem, Odm |
| place of origin | China |
| Power source | Petrol / Gas |
| Capacity | 10KN |
Product description
Diesel Engine Powered Cable Pulling Winch Machine
Technical Parameters
|
Item Number |
08192 |
08193 |
|
|
|
Model |
LJ-300B |
LJ-500A |
|
|
|
Diameter of Drum Groove (mm) |
Φ300 |
Φ500 |
|
|
|
Engine |
Type |
Honda GX270 gasoline engine |
R175A diesel engine |
|
|
Power (hp) |
9 |
6 |
|
|
|
Rotational Speed (rpm) |
3600 |
2600 |
|
|
|
Traction Force (kN) |
Slow |
25/8.5 |
16/10.5 |
|
|
Medium |
15/13.4 |
10/16.6 |
|
|
|
Fast |
6/33.5 |
4/40.8 |
|
|
|
Reverse |
-/9.6 |
-/11.8 |
|
|
|
Overall Dimension (mm) |
870×620×650 |
920×700×710 |
|
|
|
Weight (kg) |
140 |
190 |
|
|
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
