Diesel Injector Testing Machine
$5500.00
~ $8500.00
/ Case
use:
- Auto Testing Machine
- Other
- Impact Testing Machine
Options:
- Diesel Injector Tester
- Diesel Testing Machine
- Injector Testing Machine
Get Latest Price
You might also like
Basic Info
| Model No. | CR206 |
|---|---|
| Brand Name | UNICO |
| Support customization | Oem |
| place of origin | China |
| power | Electronic |
| Warranty Period | 12 months |
| Data Update | By internet online |
Show More
Product description

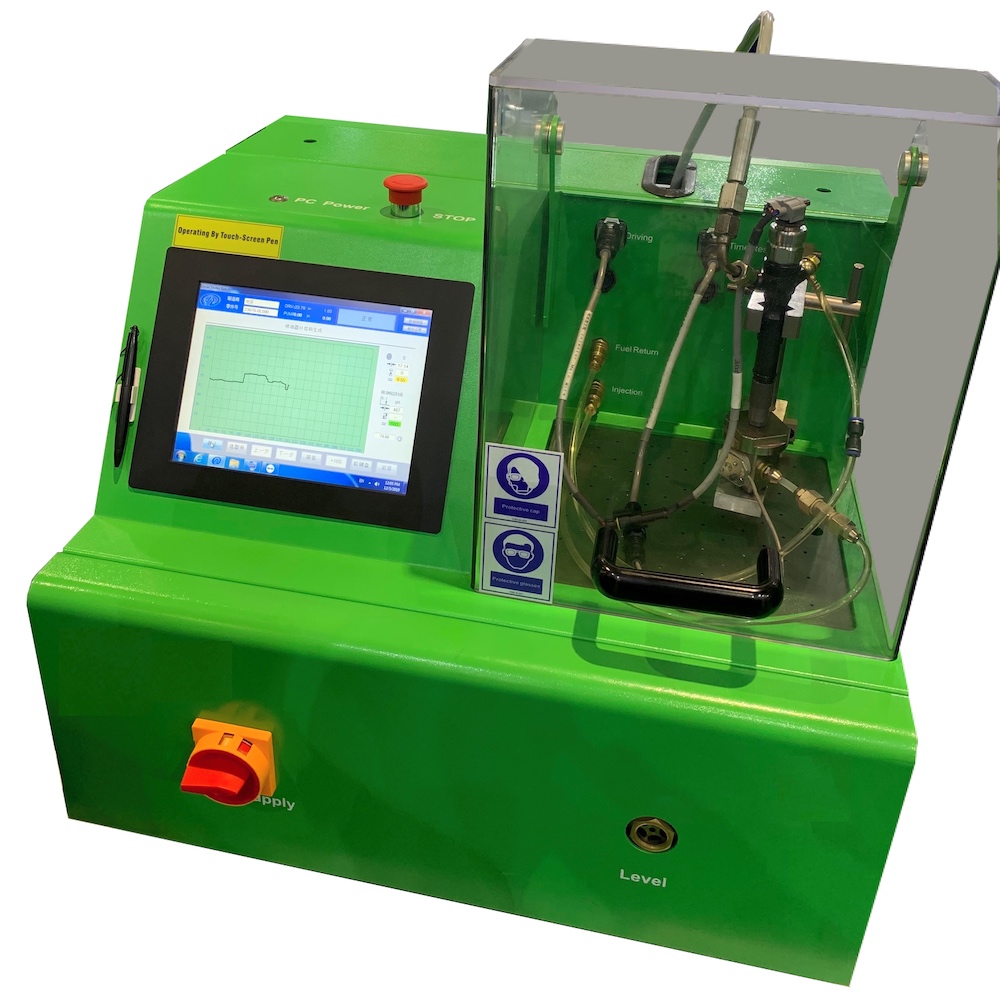

Featured of compact, portable and affordable, this diesel injector testing machine is specially for common rail injection system.
It can test common rail solenoid injector, piezoelectric injector, applicable to Euro 3, Euro 4, Euro 5, and Euro 6.
Just need to mount the injector on this tester machine, and then connect pipes and cables well. Modern software would control the testing process fully automatically.
During the testing, fuel injection & return is displayed real-time. Mainly 6 testing steps is carried out, including VL VL(R) EM LL VE START
We have coding program for your optional to generate Bosch IMA ISA, Denso 16, 24, 30 digit QR, C3i code etc.
It can test common rail solenoid injector, piezoelectric injector, applicable to Euro 3, Euro 4, Euro 5, and Euro 6.
Just need to mount the injector on this tester machine, and then connect pipes and cables well. Modern software would control the testing process fully automatically.
During the testing, fuel injection & return is displayed real-time. Mainly 6 testing steps is carried out, including VL VL(R) EM LL VE START
We have coding program for your optional to generate Bosch IMA ISA, Denso 16, 24, 30 digit QR, C3i code etc.
Note that high quality calibration fuel should be used on this injector tester machine.
Testing Scope
Technical Parameters
| 1. Power | 2.6 kw |
|
2. Voltage |
220v, Single Phase |
|
3. Speed |
0-2500 RPM |
|
4. Speed control |
Converter |
|
5. Rail Pressure |
2700bar |
|
6. Fuel Tank Capacity |
8L |
| 7. Cooling system |
Fan cooling |
|
8. Temperatura |
40±2℃ |
|
9. Weight |
130kg |
| 10. Dimension (L*W*H) |
690*730*720mm |

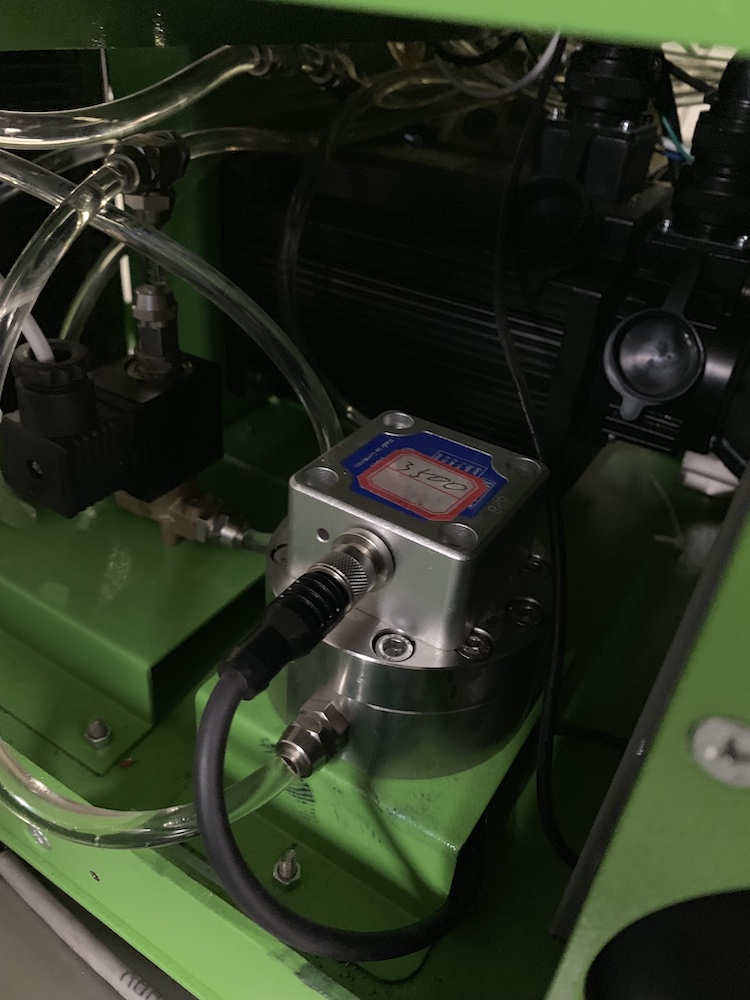

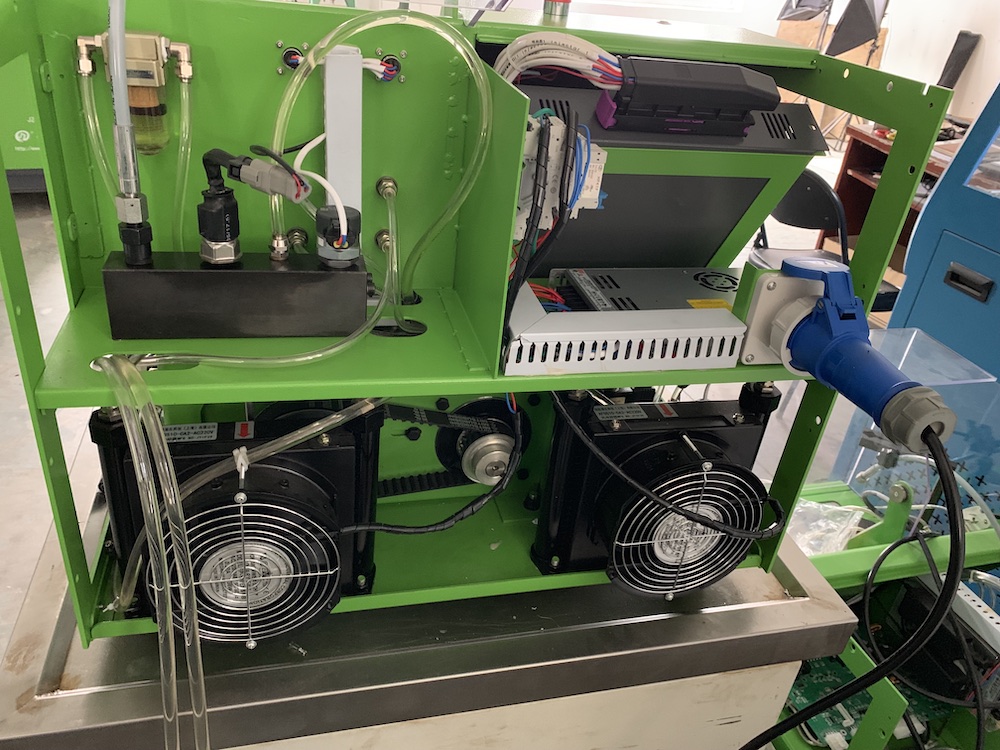

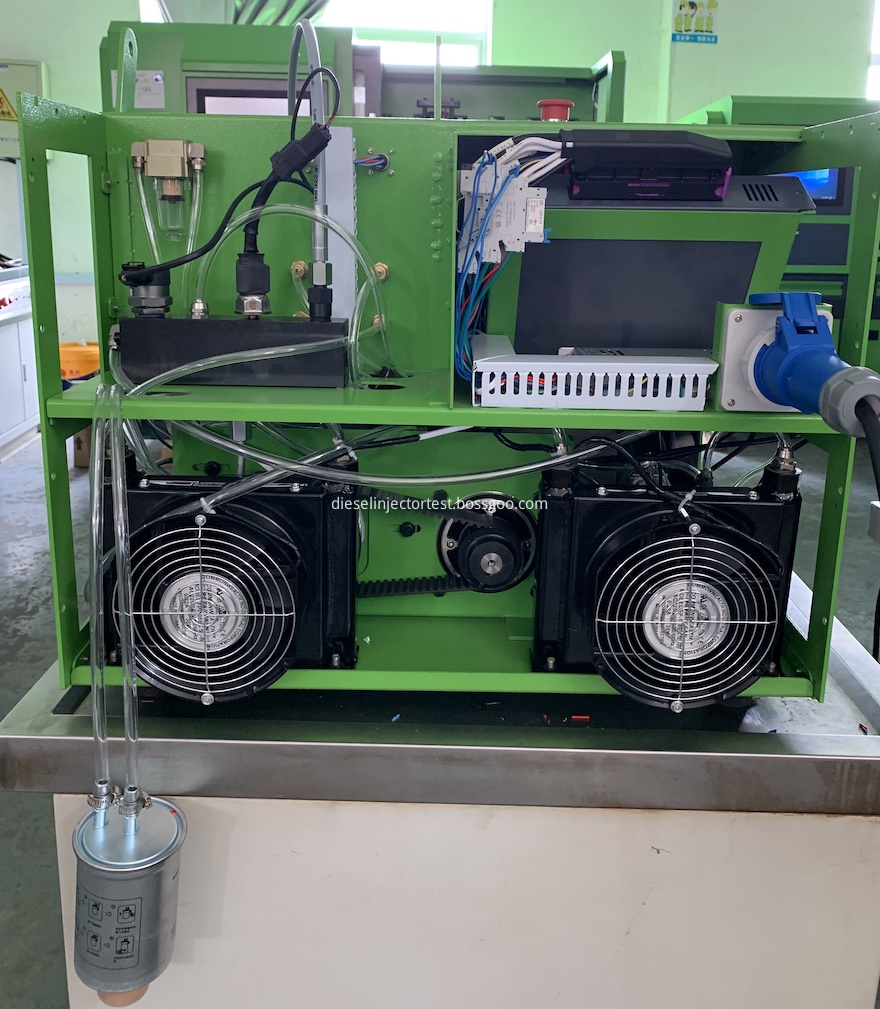

Good Components
Product Introduction
This is a compact common rail injector test bench, almost the best compact common rail test bench in China.

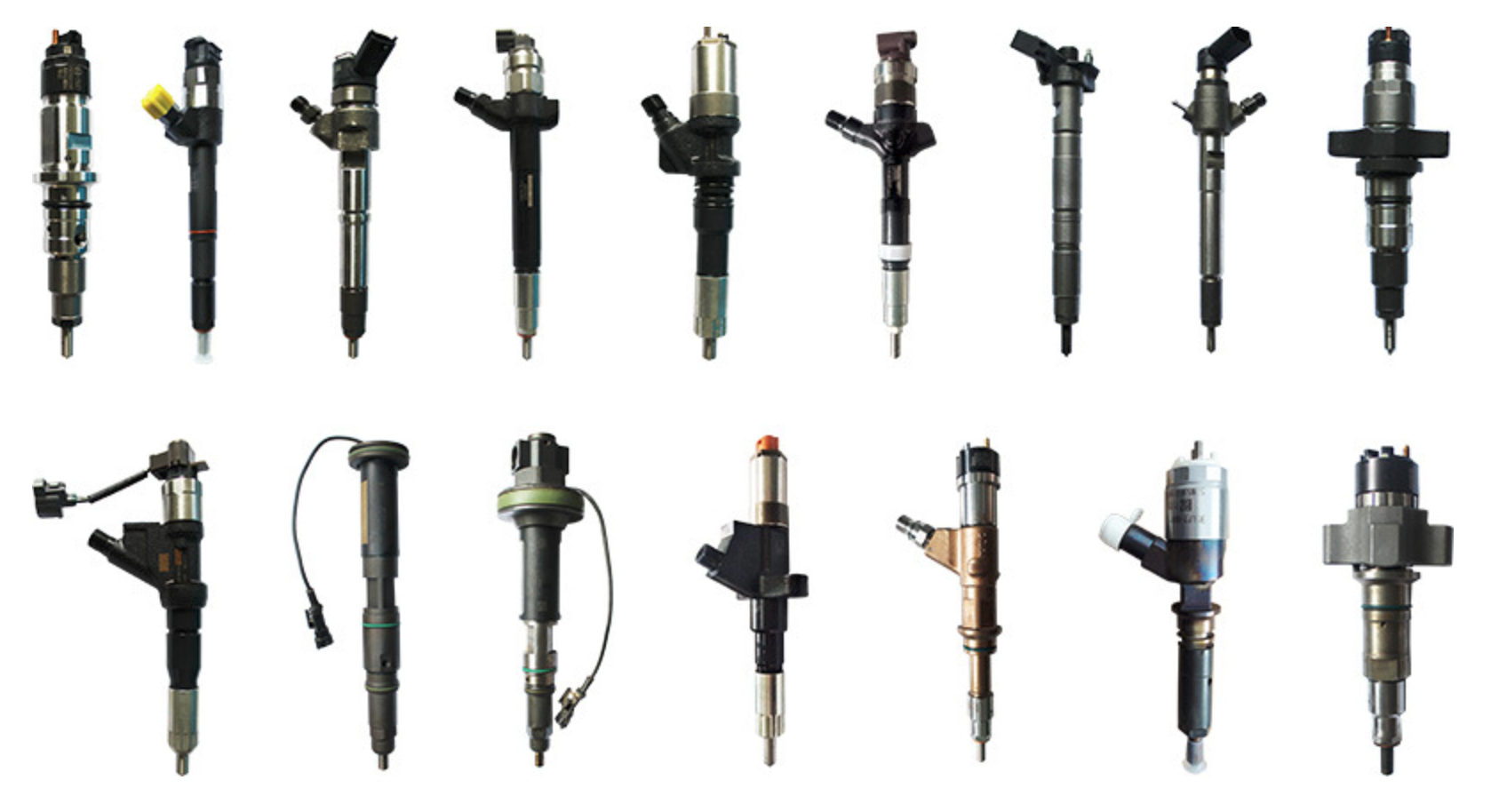

It's used to test diesel electronic injectors including BOSCH,DELPHI,DENSO,SIEMENS, CATERPILLAR and CUMMINS etc. Both solenoid and piezo available.
It is a
View MoreIt's used to test diesel electronic injectors including BOSCH,DELPHI,DENSO,SIEMENS, CATERPILLAR and CUMMINS etc. Both solenoid and piezo available.
It is a
