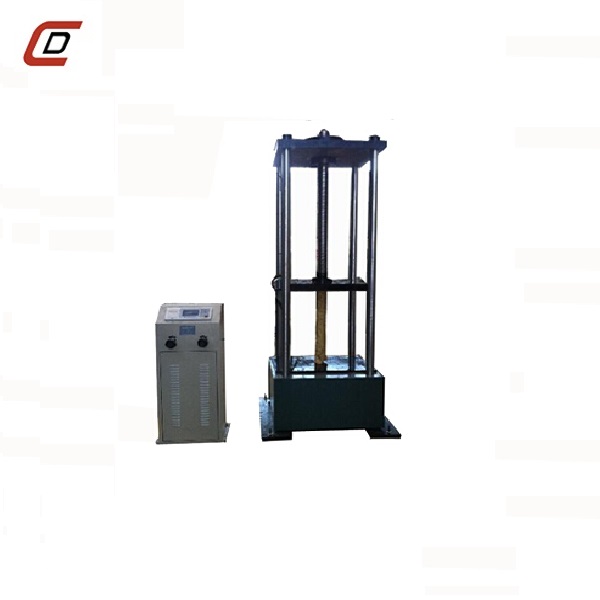

Digital Display Flue Pipe Compression Testing Machine

Get Latest Price

You might also like

2000 KN Concrete Compression Testing Machine

$2800.00

1 Set/Sets (MOQ)

YES-2000 Compressive Strength of Brick Test

1 Set/Sets (MOQ)

YES-1000 Concrete Flexural Strength Testing Machine

1 Set/Sets (MOQ)

1000KN Concrete Compression Testing Machine

1 Set/Sets (MOQ)

2000KN Hydraulic Compression Testing Machine

1 Set/Sets (MOQ)

200 Ton Concrete Compression Testing Machine

1 Set/Sets (MOQ)

2000kn Concrete Compression tester

1 Set/Sets (MOQ)

YES-2000 Concrete Compression Tester

1 Set/Sets (MOQ)

YE-300 Concrete Cube Test pdf

1 Set/Sets (MOQ)

YES-1000 Concrete Strength Tester

1 Set/Sets (MOQ)

Basic Info

Model No.	YE-300Y
Brand Name	Chenda
Type	Compression Testing Machine
Maxcapacity	<1000KN
Accuracy Grade	1
Load Way	Mechanical Load
Loading Method	Static Load
Display	Digital
Control	Manual Control
Weight	1000-2000Kg
Power Source	AC380V
Oil Cylinder Position	Under

Product description

Brief Introduction:
YE-300Y model machine is special designed by our company for the fuel pipe compression machine. It meet the national test standard requirement can complete the fuel pipe compression strength and other performance testing.
The testing machine frame and special accessories have good apperance, easy operate, stable and reliable performace. Manual valve control cylinder lift to finishe the test.
At the same time the machine also can be used in buliding materials, aerospace, machine manufacture, wire and cable, rubber and plastics, textiles and other industries of material inspection and analysis, scientifica reserach institution, university, industrial and mining enterprises, technical supervision and department.
Technical specification:

Model	YE-300Y
Max. Test cacacity	300kn
Operation method	English menu
Measurement range	2%-100% of Max. capacity
Accuracy	1
Accuracy for the test force	Better than ±1% of the value
Force resolution	0.1N
Displacement resolution	0.01mm
Display content	Test force, displacement, peak value,speed and so on.
Test space adjust structure	Motor
Lifting range	0.1mm/min-300mm/min
Test space	1500mm(Can be customized according to customer needs)
Distance between columns	550mm (Can be customized according to customer needs)
Compression space	5005501500mm (Can be customized according to customer needs)
Test force protection	Overload protection
Safty device protection	Limit

Feature:
1. Speed adjustment system
Driven by the motor, stable and reliable performance, with over-current, over-voltage, overload and other protective devices. Speed range 0.1-300mm/min
2. Loading system
Using cylinder loading, smooth transmission, low noise, high transmission efficiency.
3. Operator system
Touch operator mode, real-time display. Whole englishe operation, good apperance and convenient.
4. Automatic calibration:
The system can automatically achieve the accuracy of the calibration
5. Automatic display
Throughout the test process, the LCD real-time display test force, displacement, peak, running, running speed.
6. Automatic control
After input test parameters,it can automatically complete the test process.
7. Sample judgment
After the specimen breaks, the moving beam automatically stops moving
8. Limit protection
With mechanical and programmable two-level limit protection.

Configuration :

Testing machine frame	1 set
Motor	1 set
Oil pressure transducer	1 set
High precision Screw	1 set
Photoelectric encoder	1 set
Limit	1 set
Digital control box	1 set
Accessory	1 set
Document	1 set
