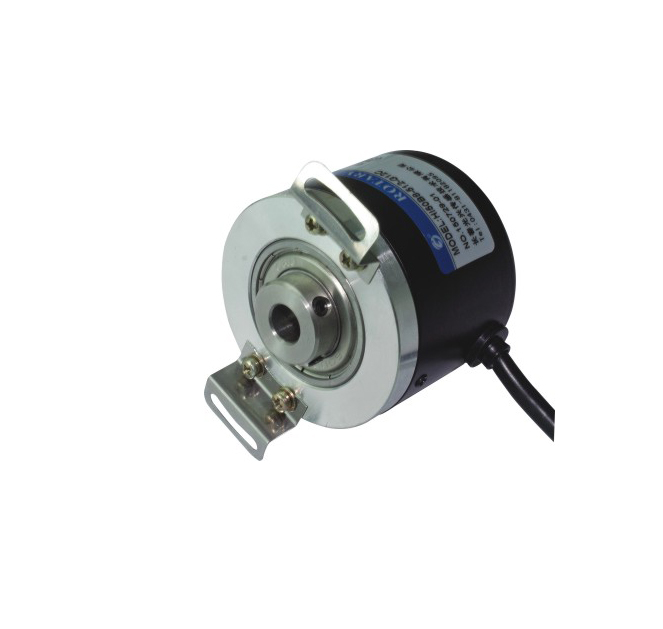

Digital rotary encoder encoder

Get Latest Price

You might also like

Encoder motor sensor

1 (MOQ)

Encoder in sensors encoder

1 (MOQ)

Encoder optical sensors

1 (MOQ)

Sensors and encoders

1 (MOQ)

Sensor is encoders

1 (MOQ)

Encoder transducer sensors

1 (MOQ)

Sensor in encoders

1 (MOQ)

Sensor for optical encoders

1 (MOQ)

Magnetic Shaft Encoder

1 (MOQ)

High Precision Encoders

1 (MOQ)

Basic Info

Model No.	HI50B 2
Brand Name

Product description

The earliest encoders on the market were mainly resolvers. The resolver can work under some relatively harsh environmental conditions. It is determined to be used for slowing down due to the sensitivity of electromagnetic interference and the complexity of decoding. However, it still has its unique value today, such as the speed feedback of hybrid electric vehicles, which is impossible Alternative

Electrical parameters
Resolution	10-5000P/R	10-5000P/R
Circuit characteristics	Current type (C)	Voltage type (E)
Voltage	DC(5-30)V	DC(5-30)V
Current consumption	80mA Max.	100mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A B or A B Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	/	Max.1μs
Signal fall time	/	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Electrical parameters
Resolution	10-5000P/R	10-5000P/R
Circuit characteristics	Push-pull (F)	Differential (L)
Voltage	DC(5-30)V	DC(5-30)V
Current consumption	125mA Max.	80mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A A B B or A A B B Z Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	Max.1μs	Max.1μs
Signal fall time	Max.1μs	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Mechanical parameters
Spindle diameter	Φ6mm, Φ8mm (can be customized) depth 14mm
Protection level	IP54
Shaft speed	6,000rpm Max.
Shaft load	Radial: 20N Axial: 10N
Impact resistance	980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance	50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque	1×10^-4N.m（25℃）
Moment of inertia	2×10^-5 kgm^2
Product weight	About 0.35Kg
Working humidity	35～85%RH (no condensation)
Operating temperature	-10～70℃ Storage temperature -25～85℃
Angular acceleration	1×10r^4ad/s 2
