【Product Details】
Digital Textile Hardness Tester is a special instrument used for quantitatively measuring the winding density of coiled items such as textile bobbins, axles, reels, cones and dye packages. Its core function is to objectively assess the tightness of the yarn or fabric after winding, which is commonly referred to as "hardness". Working principle of the Fabric Hardness Tester is based on a clear physical mechanism: in a known and constant under the action of the spring load, by measuring a certain diameter of ball head invasion is encountered resistance when the package surface. This resistance value directly reflects the compaction density of the coiled material. When the winding is tighter and harder, the depth of penetration of the indenter will be shallower, and the hardness reading displayed by the instrument will be higher. Conversely, if the coiling structure is loose, the indenter is more likely to penetrate, and the displayed hardness value will be lower. In practice, the Fabric Hardness Tester for the quality control in the process of production provides the key data. By using this equipment, operators can quickly detect and record the uniformity of hardness in the coiling, ensuring that the coiling density remains consistent within the same batch and between different batches. This is of vital importance for subsequent textile processing procedures, such as warping, weaving and dyeing. Uniform and appropriate winding density can effectively prevent problems such as edge collapse, yarn slippage, inner layer extrusion deformation and uneven dyeing during the production process, thereby reducing waste and improving the quality of the final product and production efficiency. Yarn Package Hardness Tester is a kind of standardized mechanical measuring methods, the Package Hardness the subjective tactile into concrete, comparable to utility value, is the textile industry in one of the most common equipment of the standardized production and quality inspection.



【Product Applications】

Spinning Mills:
Control the density of the warp axis to prevent yarn wear and ensure the high-speed operation of the loom.
Weaving & Warping Mills:
Control the yarn density, reduce yarn breakage and weaving defects, and improve the quality of the fabric surface.
Knitting Mills:
Control density to minimize yarn breaks and defects on knitting machines, enhancing efficiency and fabric quality.




【Product Features】
Convertible probes, the curved end of the probe is used for tubes with a diameter of no more than 400mm, and the flat end of the probe is suitable for tubes with a diameter greater than 400mm.
Average value calculation, maximum value latching, and under-voltage alarm indication functions.?
It communicates with a PC via a USB cable and Bluetooth data output.

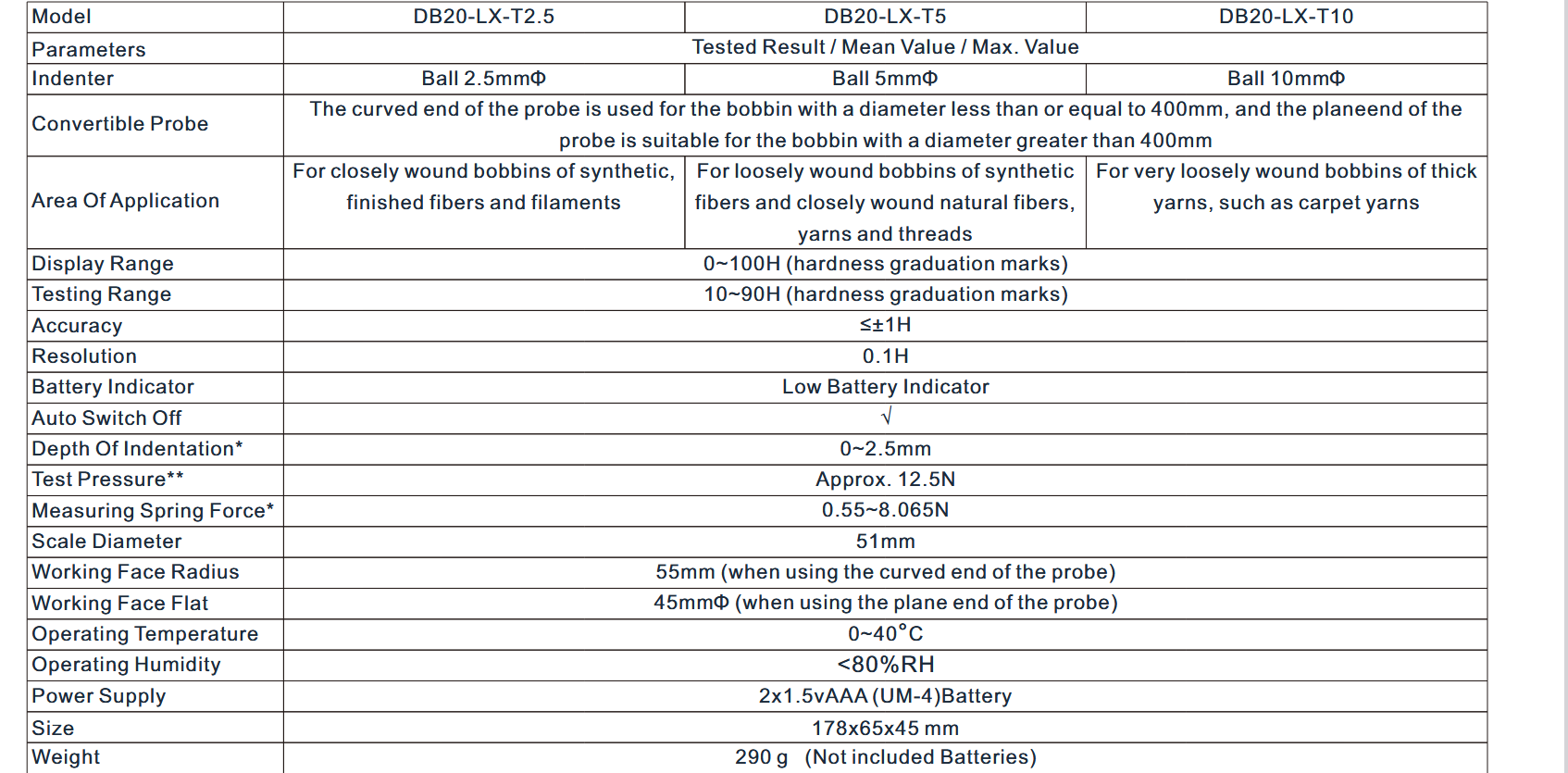

【Product Specifications】

?
