D52-2058 DIN-rail multi-function Digital meter can measure AC voltage, AC current, power factor, active power,

electric energy and power frequency.

Technical Indicators:
1. Accuracy: 1%±2 words

2.Display Mode: AC voltage and power factor use four red led of 0.31-inch

AC current and power frequency use five red led of 0.31-inch

Active power and electric energy use five green led of 0.31-inch

3.Range: AC voltage : AC 80.0-300.0V/ AC 200.0-450.0V ( You should select the one type of meter in your order ).

AC 0.0-100.0A (when measure signal lower than 100A, the accuracy is 0.01A, when measure

signal higher than 100A, the accuracy is 0.1A, the accuracy auto-change)

Active power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )

0.0-45000W ( measure voltage AC 200.0 - 450.0V )

Electric energy: 0.000-99999kwh

Power frequency: 45.00-65.00Hz

Power factor: 1.000-0.000

4.Speed: 2 times per second

5.Size: 54*80*64

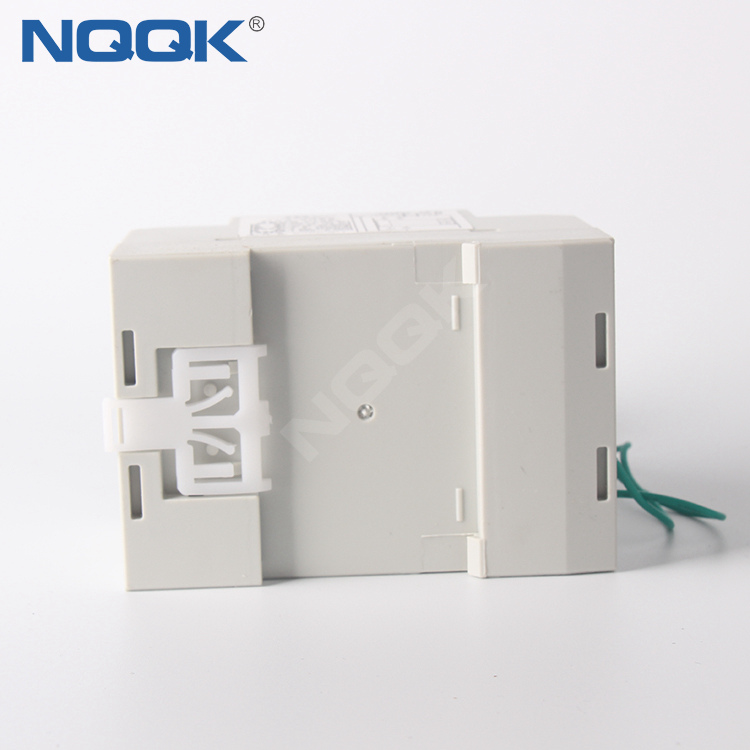

6.Installation: Din

Application Method

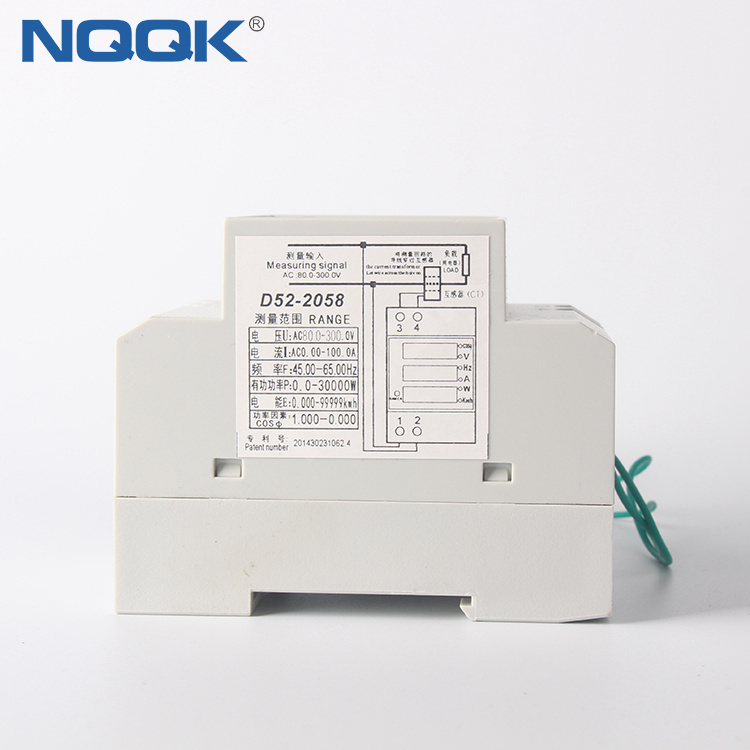

1.Connect the measuring voltage to the 1 and 2 terminal.

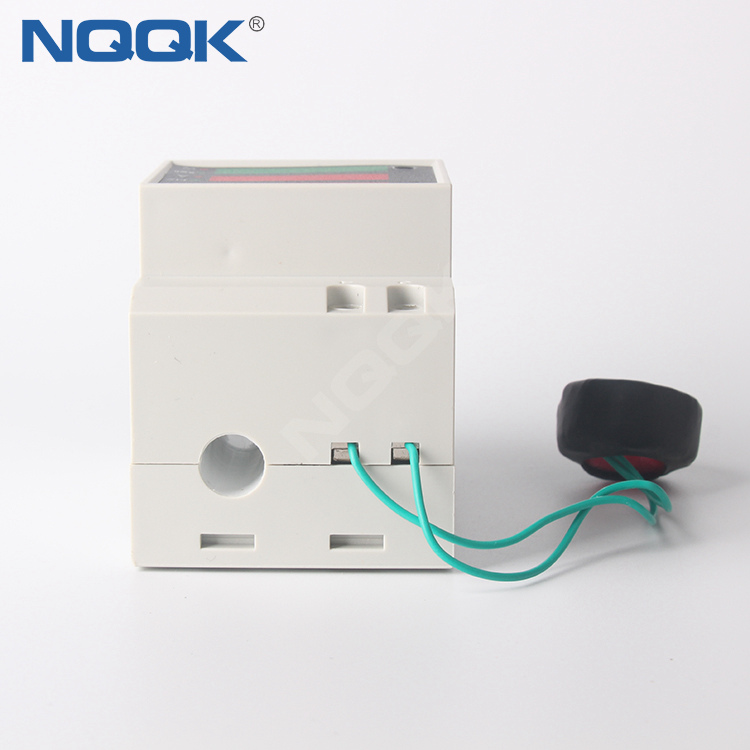

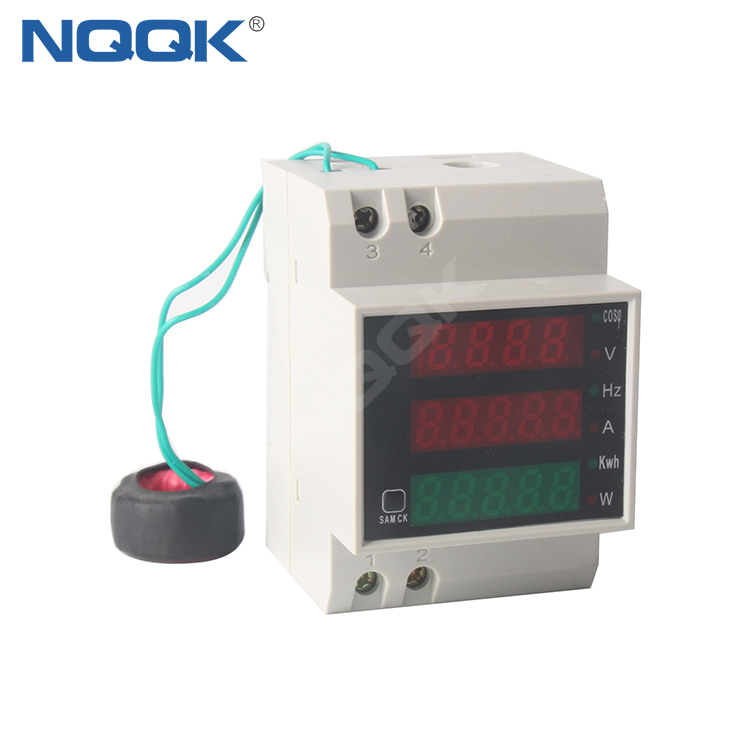

2.Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.

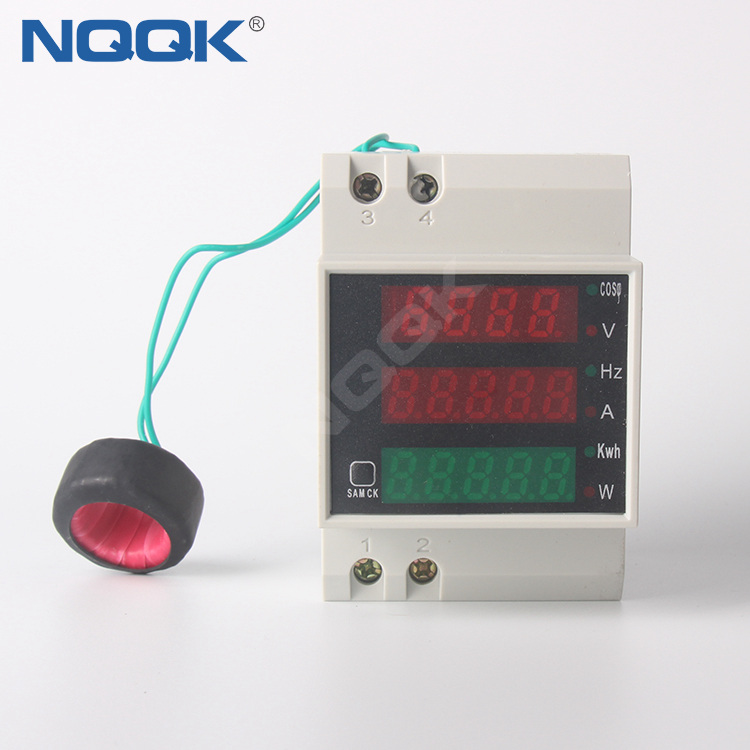

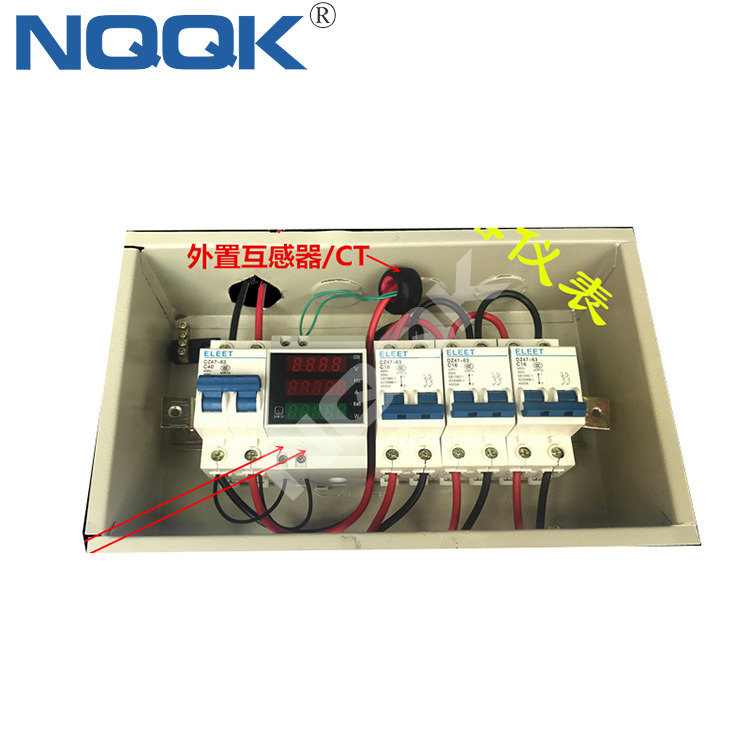

3.Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.

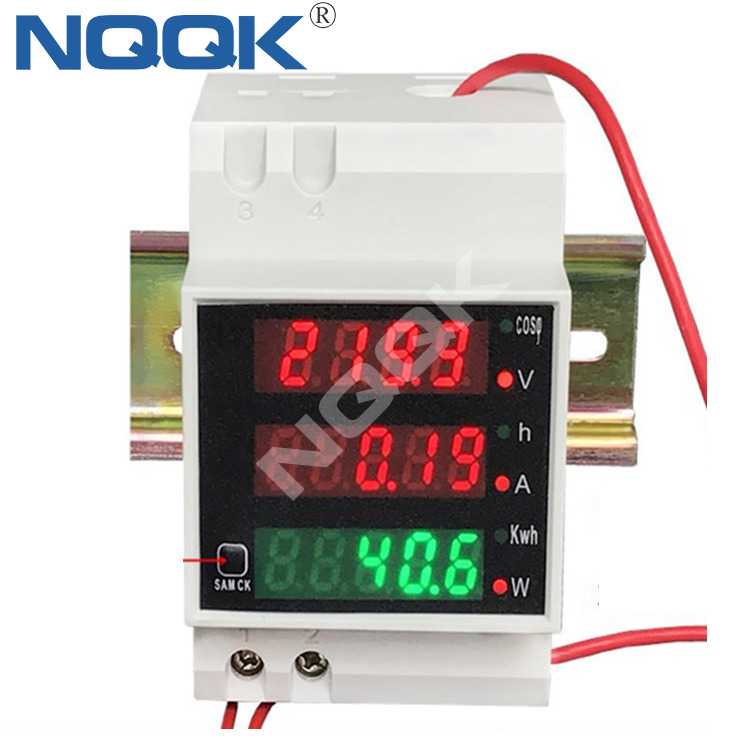

4.When power on, the meter will display the measure result of the AC voltage (V), AC current (A) and active power (W)and the correlative red led will light up.

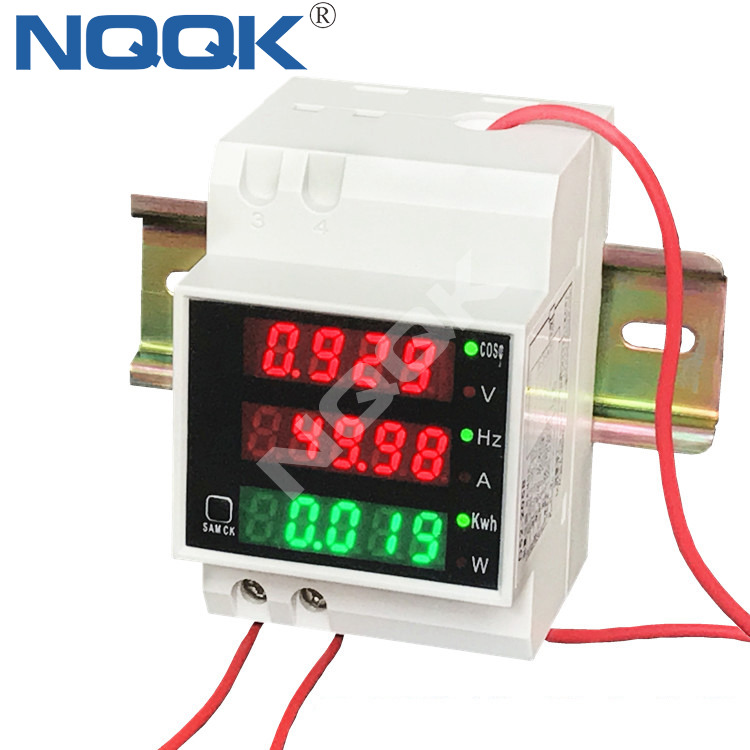

5.When press the button of SAM CK (on the right of meter) down, the meter will change to display the measure result of power factor (cosΦ), power frequency (Hz) and electric energy (kwh) and the correlative red led will light up.

6.When press the button of SAM CK down again, the meter will display the measure result of the AC voltage, AC current and active power.

7. When power off, the meter can save the value of electric energy and go on cumulating when the meter power-on next time. When the meter is displaying electric energy with green led light up, you can press down the button of SAM CK last for five seconds, then the electric energy will to be zero and restart to cumulate when release the button.

?
