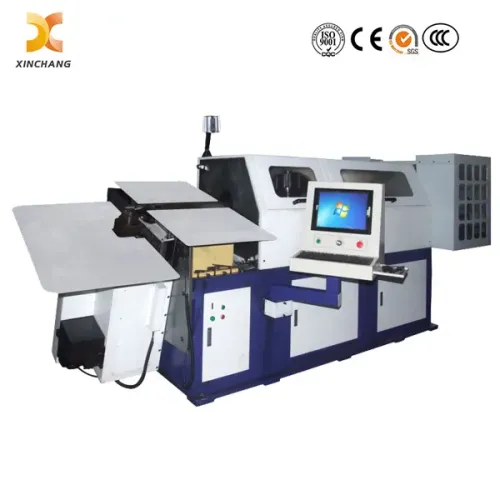

Durable Mesh Wire Bending Machine
Basic Info
| Name | Wires Bending Machine |
|---|---|
| Axis Numbers | 7 |
| feeding length | Limitless |
| Speed of Feeding | 100m/Min |
| Transport Package | Wooden Case |
Product description
- Overview
- Product Description
- Product Parameters
- Detailed Photos
- Company Profile
- FAQ
Basic Info.
Product Description
Product Description
Parts specification
Is suitable for a variety of rectangular wires products
Wire diameter: 2-6mm
Breaking point is in the long edges middle around.
?
2. Machine usage voltage and Hz
220V&50HZ (can be customized as per needs)
?
3. Machine tolerance: ±0.5mm
?
?4. Machine description:
?It is with Touch screen, PLC controlled, with straightening &cutting device,
From coil, straightening, to bend one wire by one wire, to pre-cutt one by one.
High quality and accuracy, easy to operation. Moving by hydraulic cylinders .
?
5. Working flow:
?Put coil wires on coil loader, uncoiling, straightening, bending, pre-cut and finish one products
?
6. Main parmeters
?Motor of hydraulic: 5.5HP-4KW
Servo motor: 3HP-2kw
Oil pump : PV2R1-25-210
Machine structure: Vertical type
?
Product Parameters
| Item NO. | Part name | Brand | Origin | Qty | Model |
| 1 | Hydraulic cylinder | Yifang | China | 2pcs | ? |
| 2 | Servo motor | Dongyuan | Taiwan | 1 | JSMA-MB20ABK01 |
| 3 | Transformer | Tianzheng | China | 1 | 2kw |
| 2 | Oil pump | Kaisi | China | 1pcs | PV2R1-25-210 |
| 3 | Hydraulic motor | Sanye | China | 1pcs | 4kw |
| 4 | Solinoid valves | Shentian | China | 2pcs | DG03-3C6(3C2) AC 220V |
| 5 | Relay | IDEC | Japan | 8pcs | AC-24V |
| 6 | Spill valves | Daqing | Taiwan of China | 1pcs | RV-04 |
| 7 | Touch screen | Xiankong | China | 1 | 7inchs |
| 8 | PLC | Dongyuan | Taiwan of China | 1 | TP03-30MR |

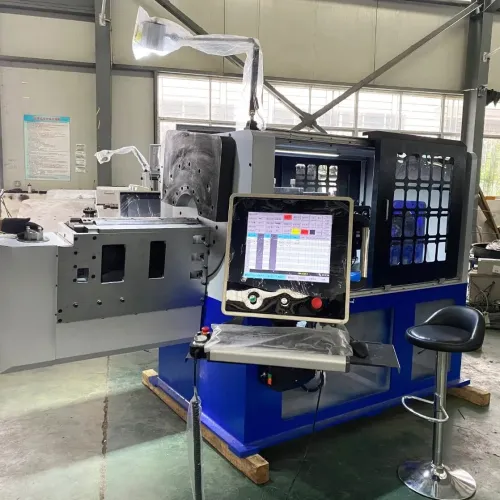

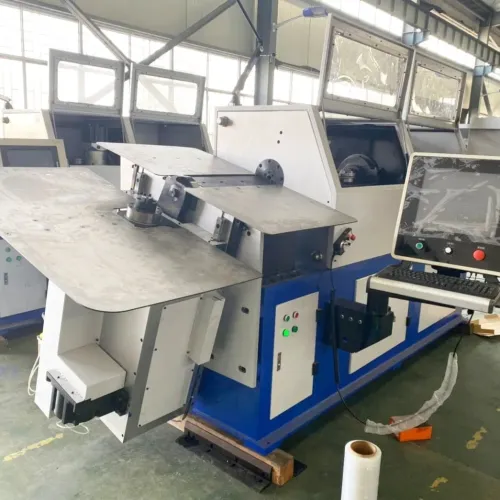

Detailed Photos
Company Profile
We,?Ningbo Xin Chang Machinery Co.,Ltd?are a professional designer and manufacturer in friction welding machine, resistance welding machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.?
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.?
Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, projection welding machine, butt welding machine, seam welding machine, multi head welding machine for wire mesh, and other various special welding machine for metal connection in different industries.
?
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
?
