Purpose

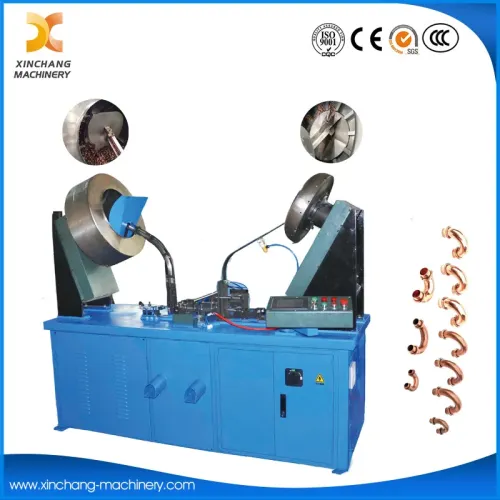

This equipment is specially designed to automatically load welding rings onto return bends, replacing manual operation to boost production efficiency and ensure consistent assembly quality. As a reliable Automatic Ring Inserting Machine, it is widely used in the automated production line of return bend welding ring assembly, covering the manufacturing of air-condition condensers, evaporators, water heaters and other related heat exchange equipment.

?

Features

1. High degree of automation: Built with efficient feeding and insertion logic, it runs stably and continuously, matching the working efficiency of High-Speed Ring Feeding and Insertion Machine to realize full-automatic ring loading without manual intervention.

2. Convenient operation, exquisite appearance: The whole machine features a compact and reasonable structure, with a sleek and firm appearance. It is easy to debug and maintain, adapting to various workshop production environments.

3. Precise servo positioning: Equipped with a servo motor fitted with a scale board, it realizes fine and accurate positioning, keeping the welding ring installation position uniform and stable.

4. Intelligent integrated control: Adopting PLC and touch screen integrated control, this CNC Ring Mounting Equipment supports quick parameter adjustment and real-time running status monitoring, with simple and clear operation.

5. Pipe end smoothing function: Equipped with a special pipe end trimming device, it smooths the pipe end before ring loading, preventing scratches and ensuring tight and stable fitting of welding rings.
