Through the establishment of a non parametric equivalent magnetic network model core axial flux permanent magnet motor and lumped parameter equivalent thermal network model, and calculate the parameters of the motor using the MATLAB programming of each part of the loss, and the efficiency of the motor temperature changes, realize the parameter analysis and calculation of motor performance.

The Principal Activities of Yuanzhong

Custom metal stamping and stator and rotor lamination to serve the global market.

DC motor core stamping

1.Product Description

Product Name	stator and rotor stack
Material	B50A4700   (Or Designated material)
Application	DC motor
Component	stator and rotor lamination
Service	OEM
Packing	Wooden box(Can be customized)
Standard	IS09001; 2008

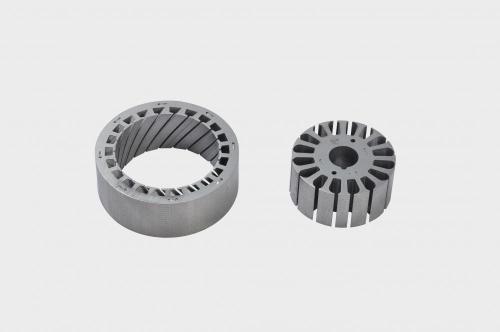

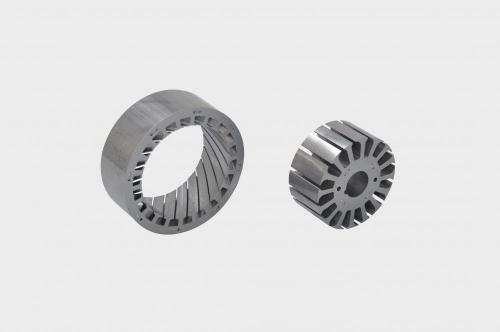

2. Produce show

3.Product Size



Type	Materials	Main Function
DC motor core	B50A4700	DC motor



4. Company profile

YUYAO YUANZHONG SALT PIECES CO.LTD, The factory is specializing in producing kinds of motor iron core and motor punching plate.



The existing equipment including Japan AIDA200T,AIDA125T and Taiwan INGYU80T, in all

8 high speed precise punches, also with the equipment of Slitting Ling, precision surface grinder and so on. In addition, the company is also equipped with more than 40 ordinary lathes with the capacity from 5 to 10 tons. We normally produce motor iron core about 80 thousand per months.

The company in 2001 has passed the IS09001; 2000 standard quality system certification. And take this as an opportunity to carry out the implementation carefully, complete control of product quality to satisfy customers.



5. Production process

6.Our Certifications

7.Quality Control

(1)Accurate to 0.01mm, the deviation is not exceeding 0.02mm

(2)Manual Inspection and Measuring Profile Projectors

(3)ISO 9001:2008 certificate

8.Packing

Packing Details  : customize appropriate wooden case according to product size and weight
Desiccant + Water Proof Cloth + PP + Solid Carton
