Electronic Products Die Cutting Machine
Model:
- ENZO-420
Power (Watts):
- 5KW
Options:
- Electrically adjust turning way
- ≤30m/minute feeding speed
- <0.1mm feeding precision
- ±0.03mm die cutting precision
Get Latest Price
You might also like
Basic Info
| Model No. | ENZO-420 |
|---|---|
| Brand Name | Flying Man |
| Applicable industry | Garment Shops, Manufacturing Plant, Printing Shops, Advertising Company |
| Out-of-warranty service | Video Technical Support |
| Where to provide local services (in which countries are there overseas service outlets) | Viet Nam |
| Showroom location (in which countries are there sample rooms overseas) | None |
| Old and new | New |
Show More
Product description

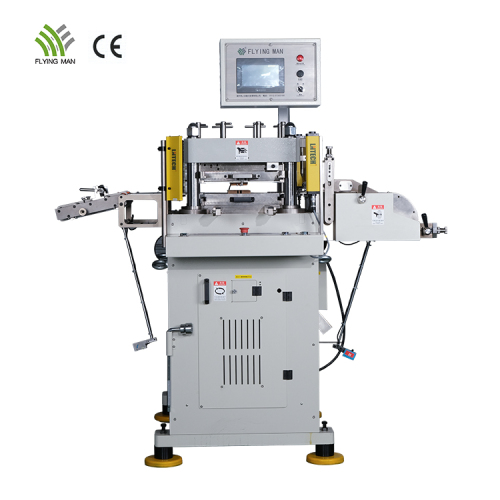

Electronic Products Die Cutting Machine
Flying Man high speed precision die cutting machine developed by flying man team independently have the following advantages, to adopt Mitsubishi brand motors and PLC, Schneider brand Low voltage electrical apparatus and power supply which make the machine more stable. This electronic products die cutting machine has below advantages: high speed, precision and stable performance characteristics, improve the machine operation more efficiency, save a lot of labor; At the same time, the machine is low noise, easy to maintain, easy to operate and safe. Unique hole positioning and timely correcting function to ensure repeated die-cutting and accurate positioning, punching accuracy control within 0.04mm, kiss cut base material up to 0.025mm precision.
Industry Highest Performance Characteristics

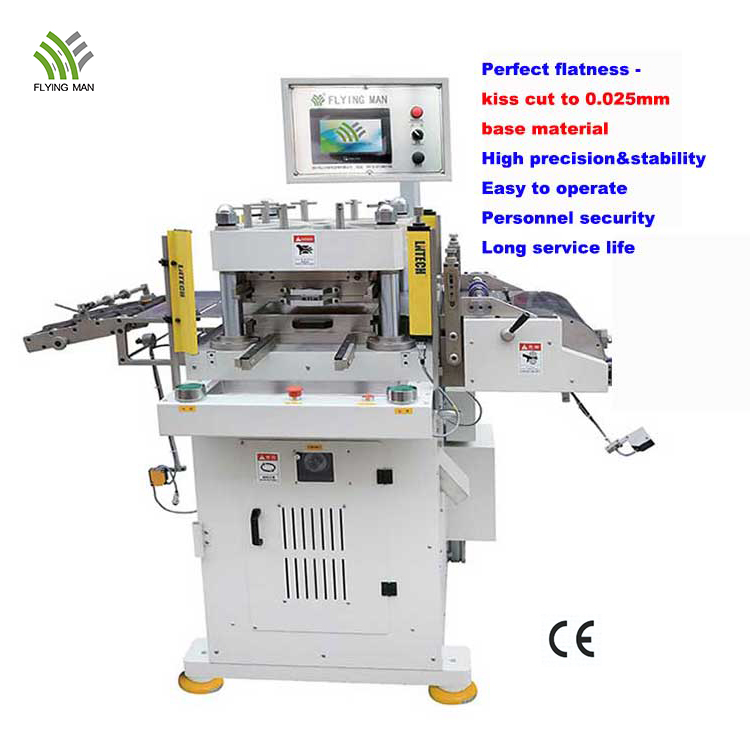

- Perfect flatness, it can kiss cut to 0.025 mm base material.
- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.
- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.
- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.
- With process saving function, the speed adjustment time is shortened.
- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.
- All the same mold are common and can be interchangeable conveniently with the same type of equipment.
- The operation interface is extremely simple and easy to use.
Product Parameters
|
SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
|
|
|
|
|||
|
Model
|
ENZO-420
|
Maximum Feeding Speed
|
30 mm/min
|
|||
|
Press Force
|
12T
|
Feeding Accuracy
|
< 0.1 mm
|
|||
|
Cutting stroke
|
28 mm
|
Feeding Roller
|
PU/NBR
|
|||
|
Maximum Running Speed
|
150 times/min
|
Feeding Driven
|
Servo Motors
|
|||
|
Stroke Adjustment
|
±5 mm
|
Lubricate method
|
Fully Automatic Central Lubrication System
|
|||
|
Shut Height of Stell Mould
|
115 mm
|
Protection
|
3 Optical Safety light curtain
|
|||
|
Maximum die cutting size of Steel Mould(L*W)
|
370 x 260 mm
|
Power Supply
|
380v 5kw
|
|||
|
Turning Way
|
Electrically Adjust
|
Machine Weight
|
2500 kgs
|
|||
|
Press Style
|
Jog/Single/Continuous
|
Air Source Specification
|
0.5-0.6 mpa
|
|||
|
Type of Mould
|
Plastic board mould, Chemical sculpture mould, Metal mould
|
Maximum size of mode(L*W)
|
420 x 320 mm
|
|||
|
Maximum Feeding width
|
420mm
|
Machine Size (L*W*H)
|
1700 x 1700 x 1700 mm
|
|||
Die cutting station
This unit is used to die cut material, you can install the die from here. When material passed, it pouch and die cut the products.
Touch screen
You can set all parameter in touch screen, the length batch quantity ,total quantity, die cutting speed, etc. It's convenient for workers to operate.
Safety protection
There are four electronic protection light curtains around the machine. Once there is anything materials, such as the operator's hand enters the sensing range, the machine will stop working immediately.
Product Application
Flatbed Die Cutting Machine are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.
Flying Man high precision die cutting machine is suitable to die cut the thin flexible electrically insulating materials such as plastic films, rubber, fibers, and papers. These materials include polyimide films, Mylar PET film, polypropylene, aramid fiber, insulation papers (aka fish paper), PTFE, solid rubber sheets such as silicone, neoprene, and many more etc.
Technical Service
- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.
Training service
Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
Suzhou Flying Man Assembly Automation Co., Ltd.
- 5yrs
Suzhou,
Jiangsu,
China
- Manufacturer
- Trade Company
- OEM service
Video

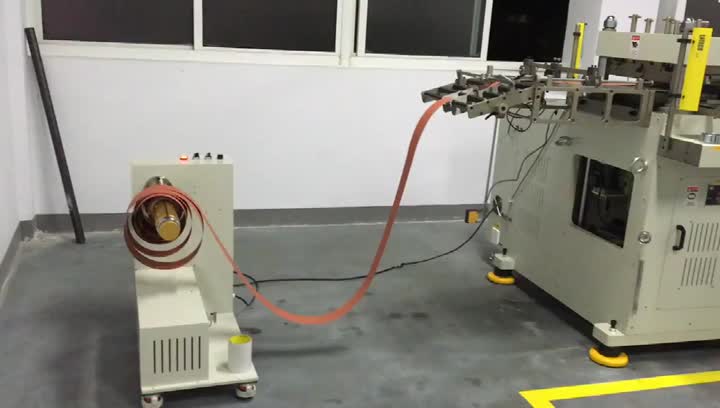

ENZO-420 Punch holes line.mp4
