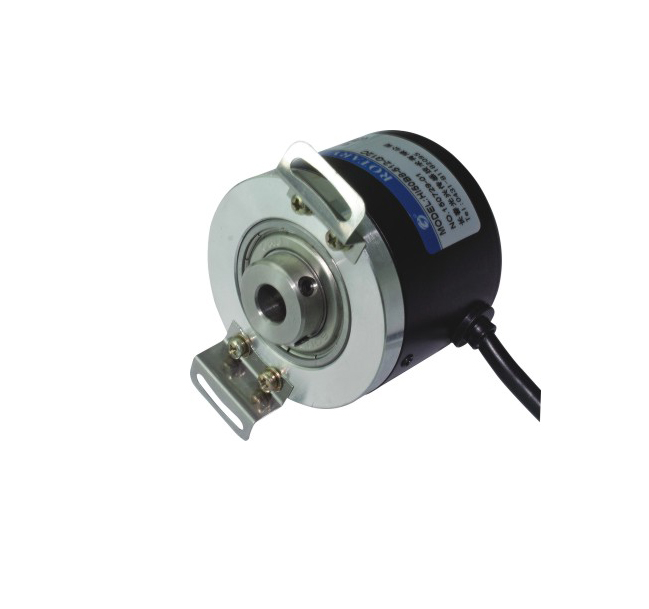

Encoder for motor encoder
Basic Info
| Model No. | HI50B 1 |
|---|
Product description
The earliest encoders on the market were mainly resolvers. The resolver is an electromagnetic sensor, also known as a synchronous resolver. It is a small AC motor for angle measurement. It is used to measure the angular displacement and angular velocity of a rotating object. It is composed of a stator and a rotor
Electrical parameters
Resolution
10-5000P/R
10-5000P/R
Circuit characteristics
Current type (C)
Voltage type (E)
Voltage
DC(5-30)V
DC(5-30)V
Current consumption
80mA Max.
100mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A B or A B Z
Response frequency
300KHz Max.
300KHz Max.
Signal rise time
/
Max.1μs
Signal fall time
/
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Electrical parameters
Resolution
10-5000P/R
10-5000P/R
Circuit characteristics
Current type (C)
Voltage type (E)
Voltage
DC(5-30)V
DC(5-30)V
Current consumption
80mA Max.
100mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A B or A B Z
Response frequency
300KHz Max.
300KHz Max.
Signal rise time
/
Max.1μs
Signal fall time
/
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Mechanical parameters
Spindle diameter
Φ6mm, Φ8mm (can be customized) depth 14mm
Protection level
IP54
Shaft speed
6,000rpm Max.
Shaft load
Radial: 20N Axial: 10N
Impact resistance
980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance
50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque
1×10^-4N.m（25℃）
Moment of inertia
2×10^-5 kgm^2
Product weight
About 0.35Kg
Working humidity
35～85%RH (no condensation)
Operating temperature
-10～70℃ Storage temperature -25～85℃
Angular acceleration
1×10r^4ad/s 2
